Chapter 9 VLAN
MES3500 Series User’s Guide
92

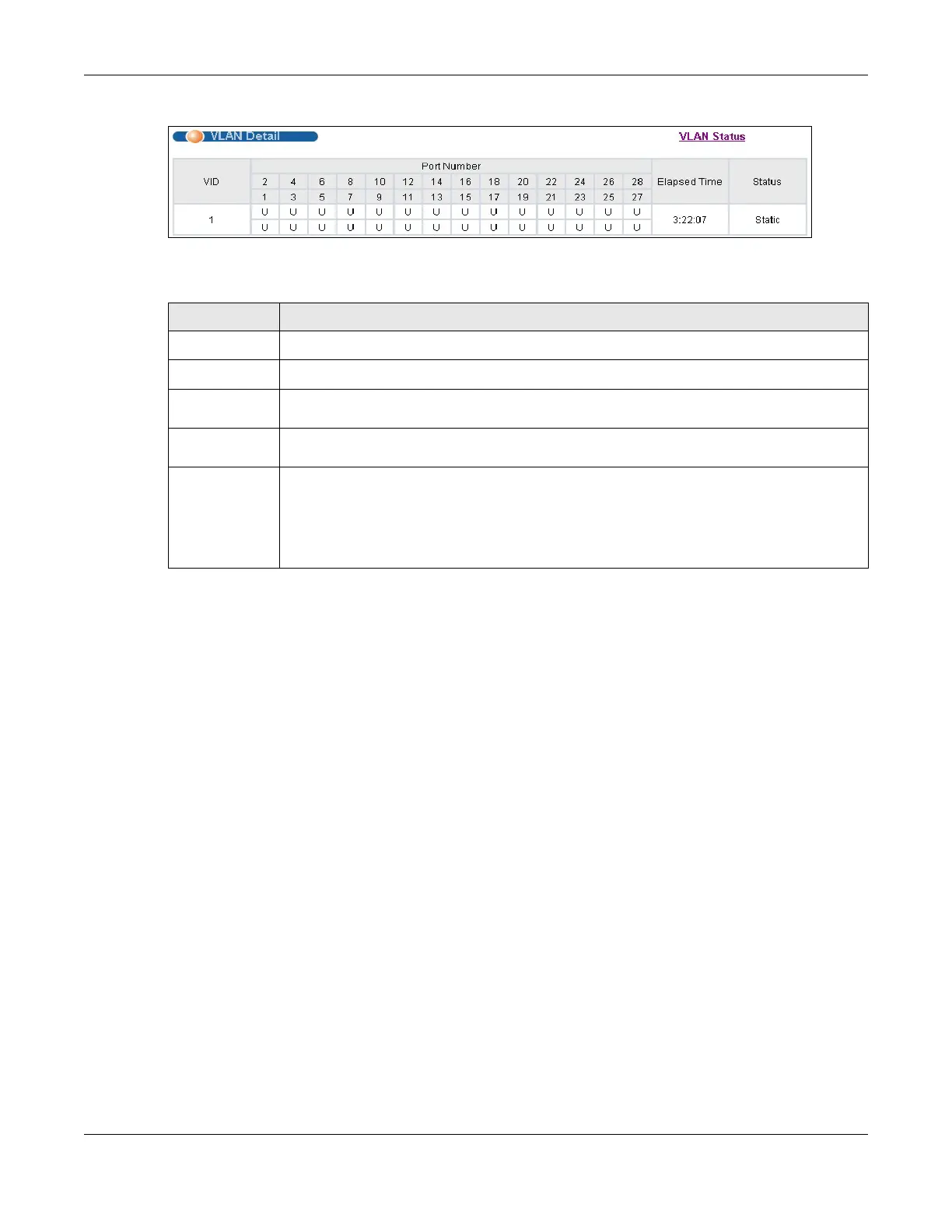

Figure 38 Advanced Application > VLAN > VLAN Detail
The following table describes the labels in this screen.
9.5.3 Configure a Static VLAN
Use this screen to configure and view 802.1Q VLAN parameters for the Switch. See Section 9.1 on
page 88 for more information on static VLAN. To configure a static VLAN, click Static VLAN in the
VLAN Status screen to display the screen as shown next.
Table 18 Advanced Application > VLAN > VLAN Detail
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VID This is the VLAN identification number that was configured in the Static VLAN screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is marked as
T, an untagged port is marked as U and ports not participating in a VLAN are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN
was set up.
Status This field shows how this VLAN was added to the Switch.
• Dynamic - using GVRP
• Static - manually added as a normal VLAN
• RMirror - manually added as a remote port mirroring VLAN
• MVR - added via Multicast VLAN Registration (MVR)
