ZyXEL Communications MES3500 Series User Manual

Chapter 17 Link Aggregation
MES3500 Series User’s Guide
146
Configure trunk groups or LACP before you connect the Ethernet switch to avoid causing network
topology loops.
17.2.1 Link Aggregation ID
LACP aggregation ID consists of the following information
1
:
17.3 Link Aggregation Status
Click Advanced Application > Link Aggregation in the navigation panel. The Link Aggregation
Status screen displays by default. See Section 17.1 on page 145 for more information.

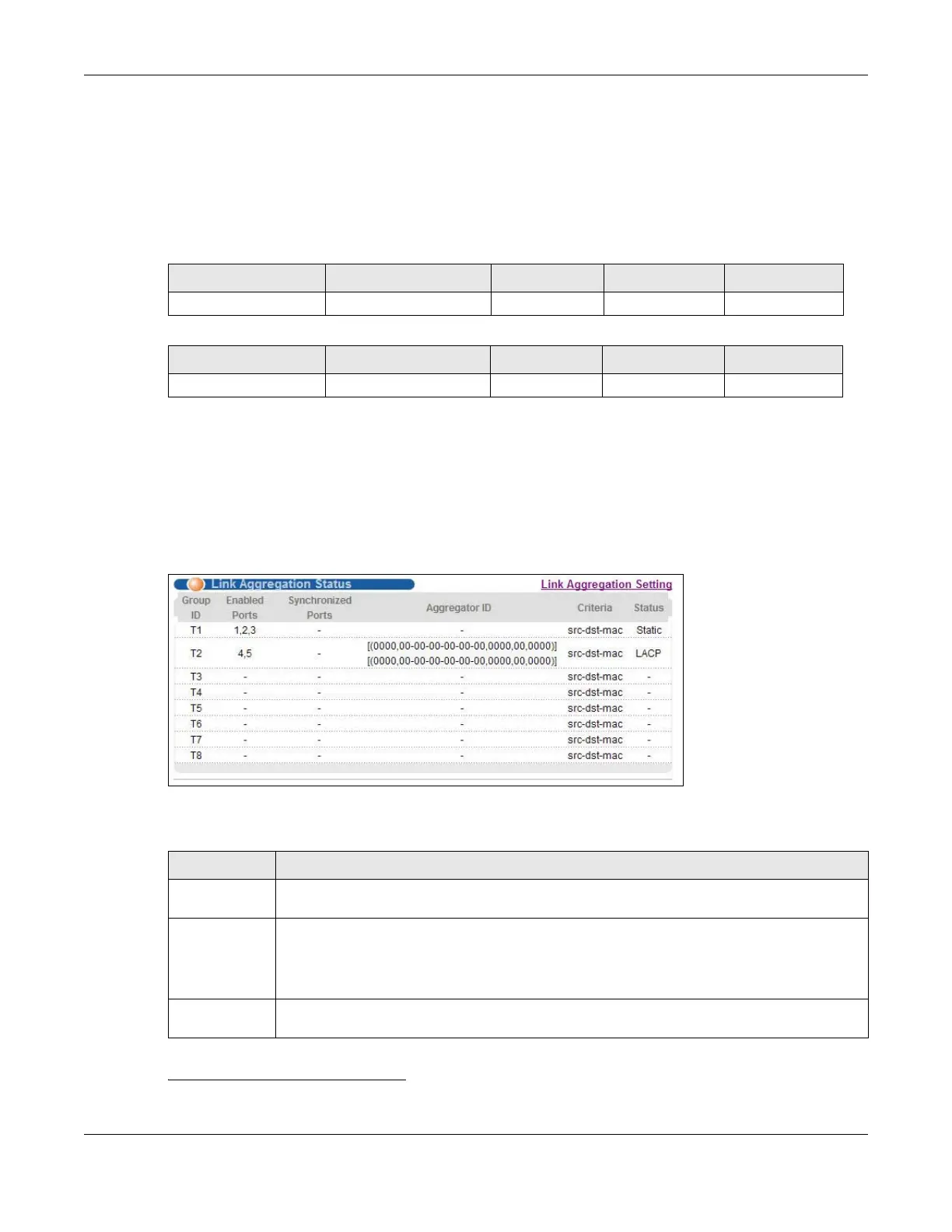

Figure 75 Advanced Application > Link Aggregation Status
The following table describes the labels in this screen.
Table 46 Link Aggregation ID: Local Switch
SYSTEM PRIORITY MAC ADDRESS KEY PORT PRIORITY PORT NUMBER
0000 00-00-00-00-00-00 0000 00 0000
Table 47 Link Aggregation ID: Peer Switch
SYSTEM PRIORITY MAC ADDRESS KEY PORT PRIORITY PORT NUMBER
0000 00-00-00-00-00-00 0000 00 0000
1. Port Priority and Port Number are 0 as it is the aggregator ID for the trunk group, not the individual port.
Table 48 Advanced Application > Link Aggregation Status
LABEL DESCRIPTION
Group ID This field displays the group ID to identify a trunk group, that is, one logical link containing
multiple ports.
Enabled Port These are the ports you have configured in the Link Aggregation screen to be in the trunk
group.
The port number(s) displays only when this trunk group is activated and there is a port
belonging to this group.
Synchronized
Ports
These are the ports that are currently transmitting data as one logical link in this trunk
group.
