Chapter 16 Mirroring
MES3500 Series User’s Guide
141
16.2 Local Port Mirroring Screen
Click Advanced Application > Mirroring in the navigation panel to display the Mirroring screen.
Use this screen to select a monitor port and specify the traffic flow to be copied to the monitor port.

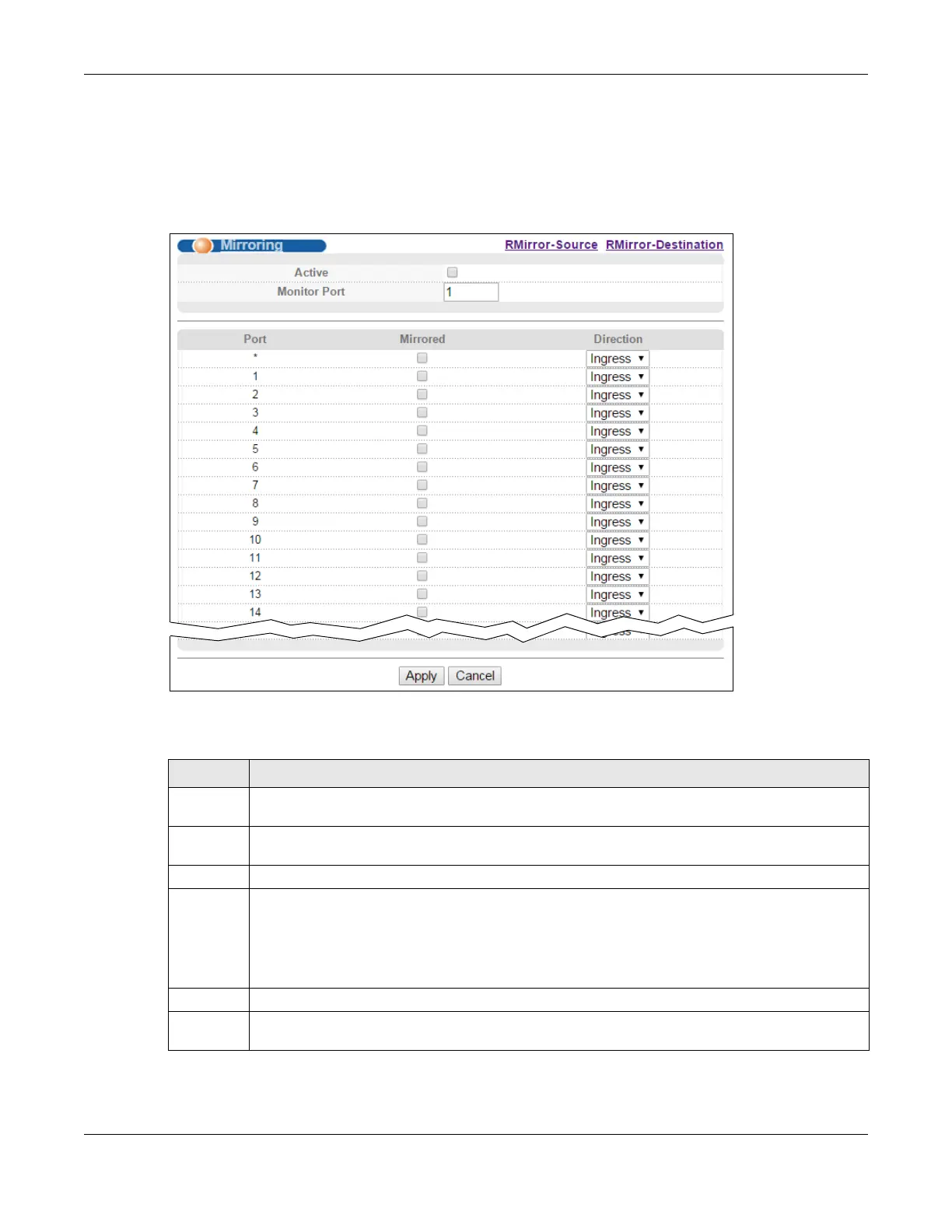

Figure 72 Advanced Application > Mirroring
The following table describes the labels in this screen.
Table 43 Advanced Application > Mirroring
LABEL DESCRIPTION
Active Select this check box to activate port mirroring on the Switch. Clear this check box to disable the
feature.
Monitor
Port
The monitor port is the port you copy the traffic to in order to examine it in more detail without
interfering with the traffic flow on the original port(s). Type the port number of the monitor port.
Port This field displays the port number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row first to
set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Mirrored Select this option to mirror the traffic on a port.
Direction Specify the direction of the traffic to mirror by selecting from the drop-down list box. Choices are
Egress (outgoing), Ingress (incoming) and Both.
