6.6.1 Creating a VLAN
Follow the steps below to configure port 2, 3, 4 and 25 as a member of VLAN 123.
1 Access the web configurator through the Switch’s port which is not in VLAN 123.

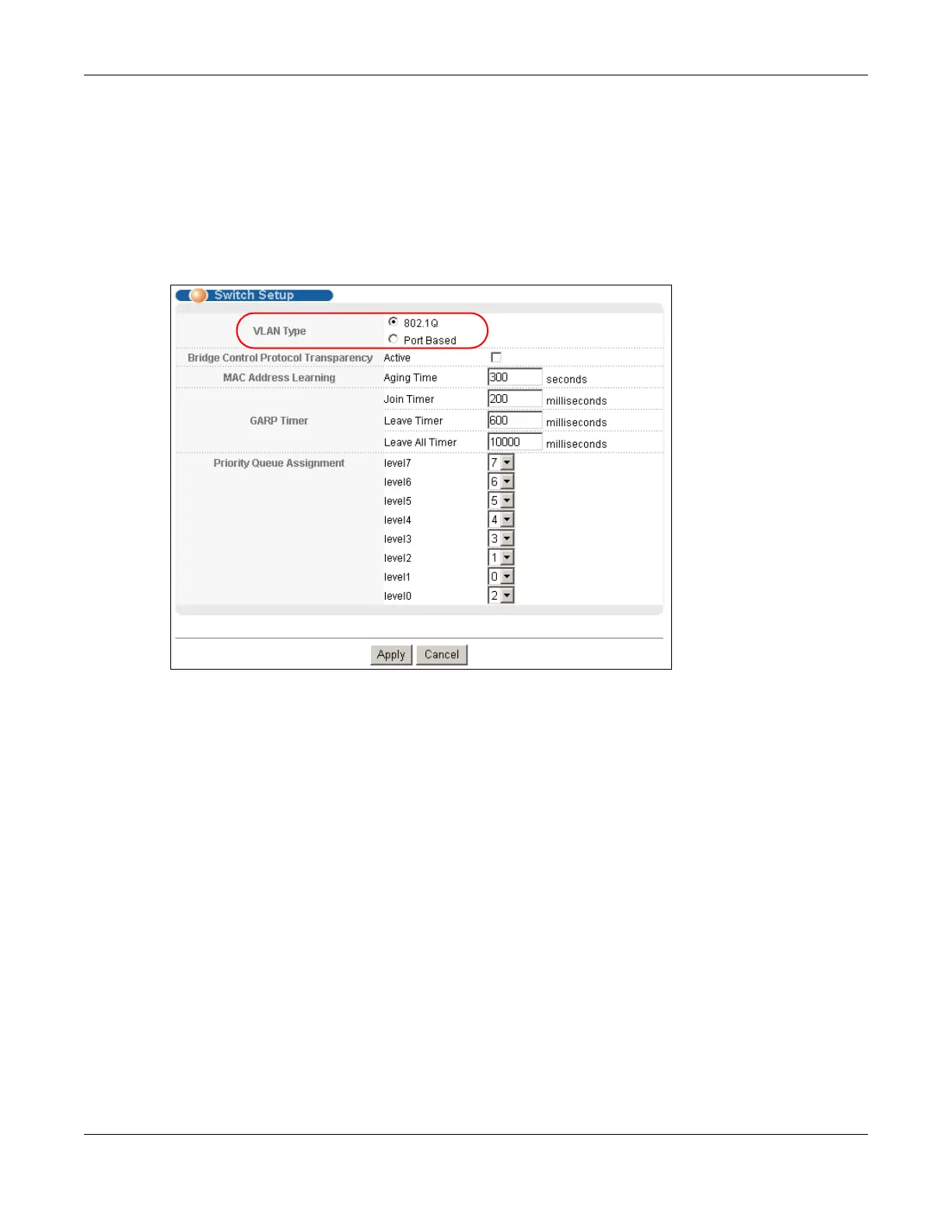

2 Go to Basic Setting > Switch Setup and set the VLAN type to 802.1Q. Click Apply to save the
settings to the run-time memory.
3 Click Advanced Application > VLAN > Static VLAN.
4 In the Static VLAN screen, select ACTIVE, enter a descriptive name (VLAN 123 for example) in
the Name field and enter 123 in the VLAN Group ID field.
5 Select Fixed to configure ports 2, 3, 4 and 25 to be permanent members of this VLAN.
6 Clear the TX Tagging check box to set the Switch to remove VLAN tags before sending frames out
of these ports.
7 Click Add to save the settings to the run-time memory. Settings in the run-time memory are lost
when the Switch’s power is turned off.
