6.2.2 Creating a VLAN
Follow the steps below to configure port 2 as a member of VLAN 102.
1 Access the web configurator through the Switch’s port which is not in VLAN 102.

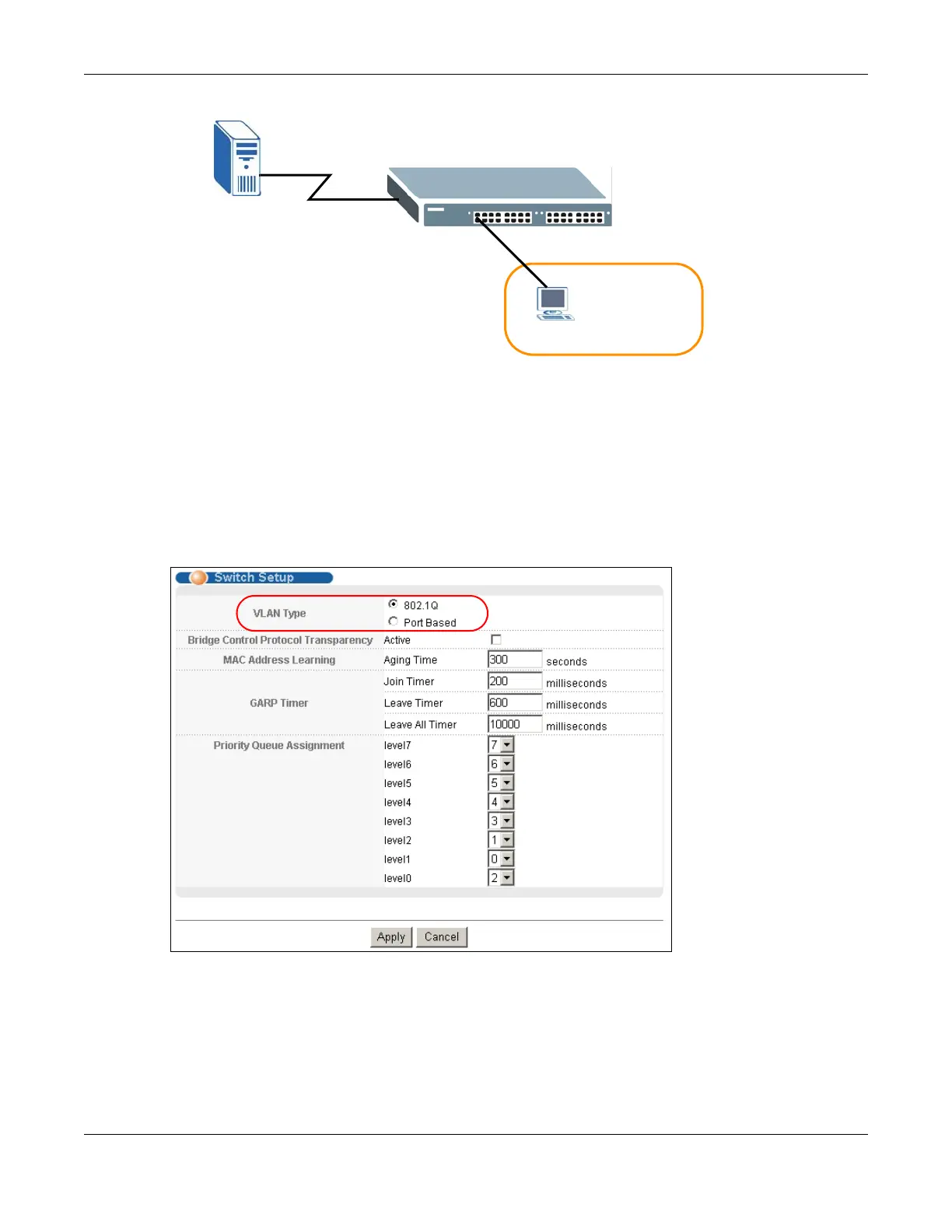

2 Go to Basic Setting > Switch Setup and set the VLAN type to 802.1Q. Click Apply to save the
settings to the run-time memory.
3 Click Advanced Application > VLAN > Static VLAN.
4 In the Static VLAN screen, select ACTIVE, enter a descriptive name (VALN 102 for example) in
the Name field and enter 102 in the VLAN Group ID field.
5 Select Fixed to configure port 2 to be a permanent member of this VLAN.
6 Clear the TX Tagging check box to set the Switch to remove VLAN tags before sending.
VLAN 102
DHCP Server
Port 2
PVID=102
172.16.1.18
A
192.168.2.3
