Chapter 9 VLAN
MES3500 Series User’s Guide
105
9.10.1 Configure a Port-based VLAN
Select Port Based as the VLAN Type in the Switch Setup screen and then click VLAN from the
navigation panel to display the following screen. Select either All Connected or Port Isolated
from the drop-down list depending on your VLAN and VLAN security requirements. If VLAN
members need to communicate directly with each other, then select All Connected. Select Port
Isolated if you want to restrict users from communicating directly. Click Apply to save your
settings.
The following screen shows users on a port-based, all-connected VLAN configuration.

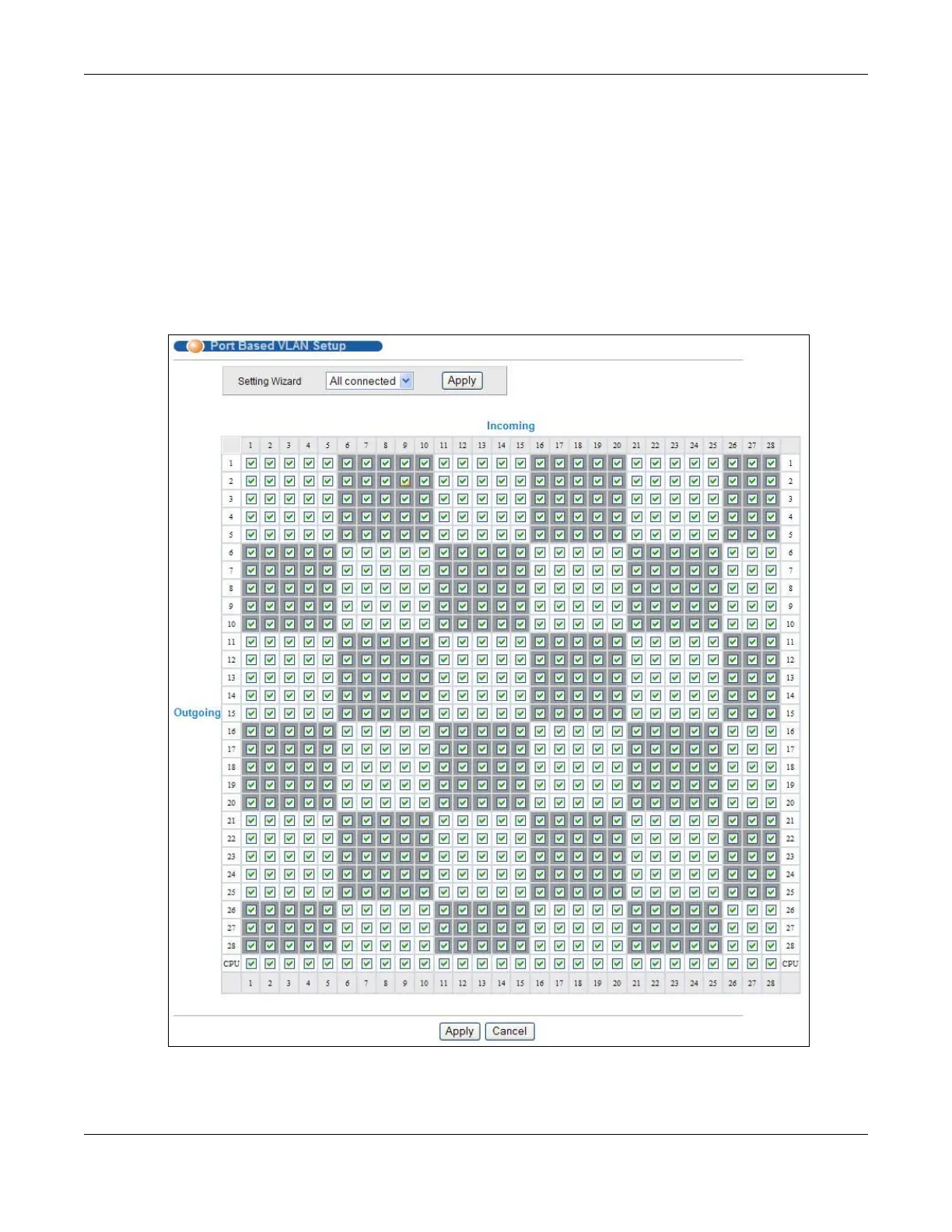

Figure 48 Advanced Application > VLAN > Port Based VLAN Setup (All Connected)
The following screen shows users on a port-based, port-isolated VLAN configuration.
