Chapter 7 System Status and Port Statistics
MES3500 Series User’s Guide
75

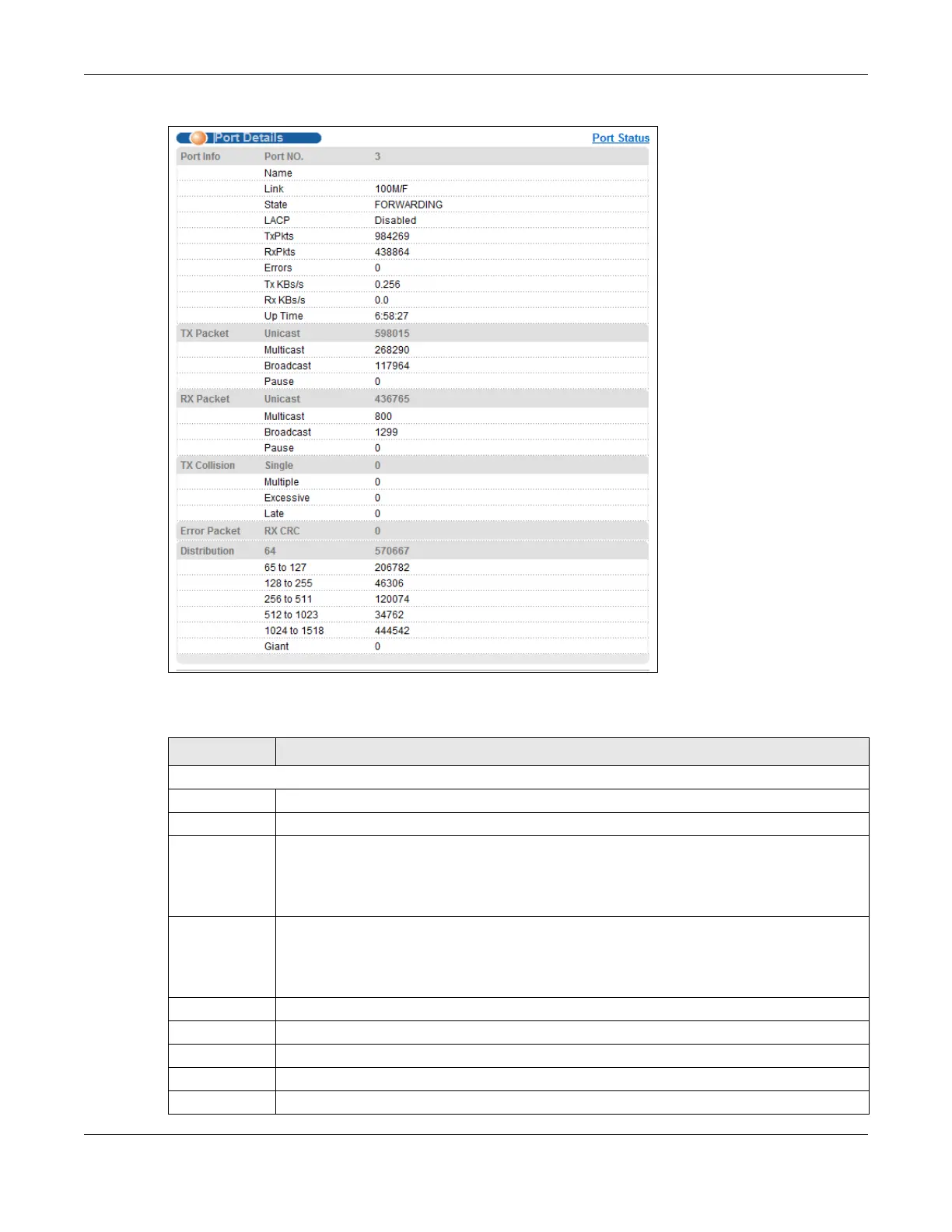

Figure 29 Status > Port Details
The following table describes the labels in this screen.
Table 10 Status: Port Details
LABEL DESCRIPTION
Port Info
Port NO. This field displays the port number you are viewing.
Name This field displays the name of the port.
Link This field displays the speed (either 10M for 10Mbps, 100M for 100Mbps or 1000M for
1000Mbps) and the duplex (F for full duplex or H for half duplex). It also shows the cable
type (Copper or Fiber).
This field displays Down if the port is not connected to any device.
Status If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the port (see
Section 13.1 on page 115 for more information).
If STP is disabled, this field displays FORWARDING if the link is up, otherwise, it displays
STOP.
LACP This field shows if LACP is enabled on this port or not.
TxPkts This field shows the number of transmitted frames on this port
RxPkts This field shows the number of received frames on this port
Errors This field shows the number of received errors on this port.
Tx KB/s This field shows the number kilobytes per second transmitted on this port.
