Chapter 13 Spanning Tree Protocol
MES3500 Series User’s Guide
122

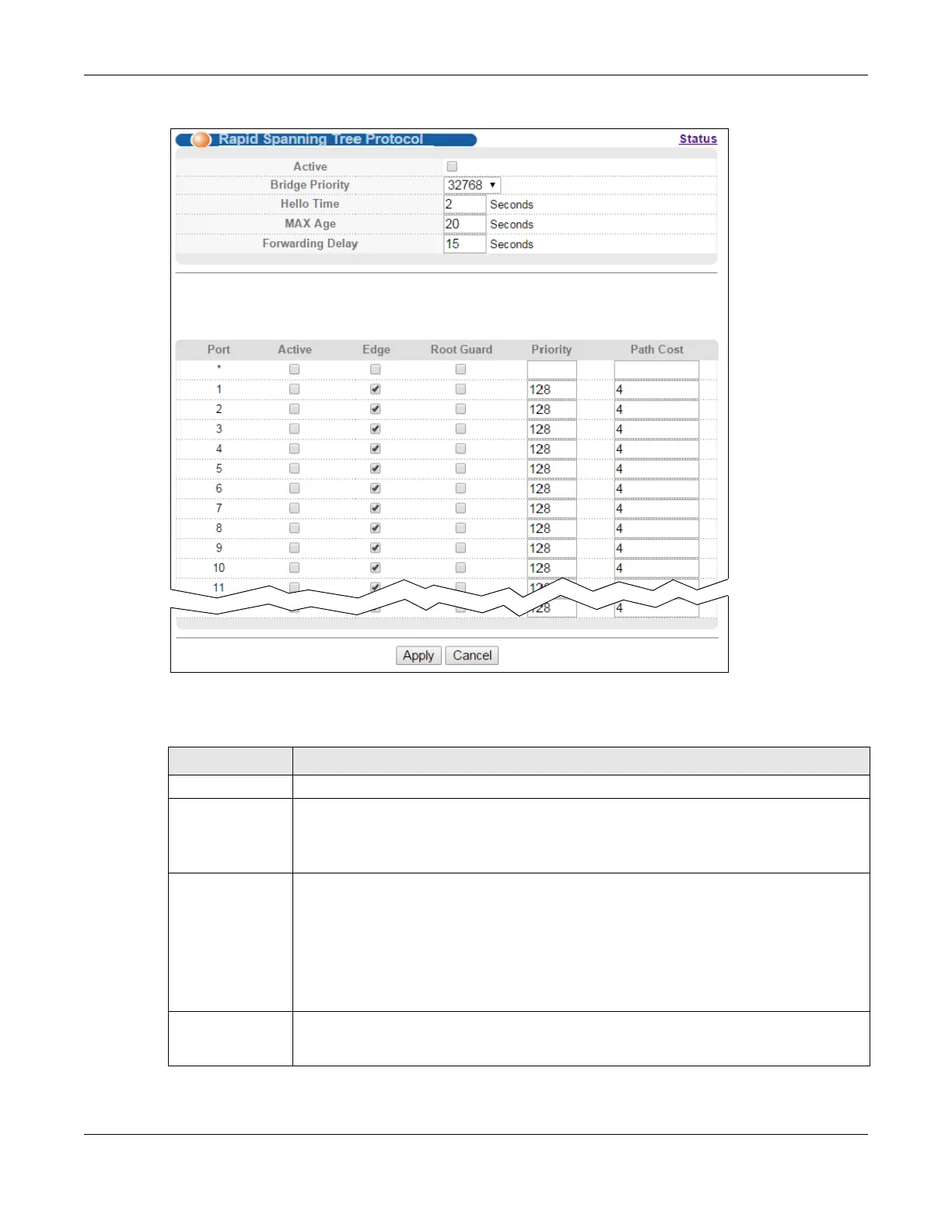

Figure 63 Advanced Application > Spanning Tree Protocol > RSTP
The following table describes the labels in this screen.
Table 32 Advanced Application > Spanning Tree Protocol > RSTP
LABEL DESCRIPTION
Status Click Status to display the RSTP Status screen (see Figure 64 on page 124).
Active Select this check box to activate RSTP. Clear this checkbox to disable RSTP.
Note: You must also activate Rapid Spanning Tree in the Advanced Application >
Spanning Tree Protocol > Configuration screen to enable RSTP on the Switch.
Bridge Priority Bridge priority is used in determining the root switch, root port and designated port. The
switch with the highest priority (lowest numeric value) becomes the STP root switch. If all
switches have the same priority, the switch with the lowest MAC address will then become
the root switch. Select a value from the drop-down list box.
The lower the numeric value you assign, the higher the priority for this bridge.
Bridge Priority determines the root bridge, which in turn determines Hello Time, Max Age
and Forwarding Delay.
Hello Time This is the time interval in seconds between BPDU (Bridge Protocol Data Units)
configuration message generations by the root switch. The allowed range is 1 to 10
seconds.
