Chapter 14 Bandwidth Control
MES3500 Series User’s Guide
135

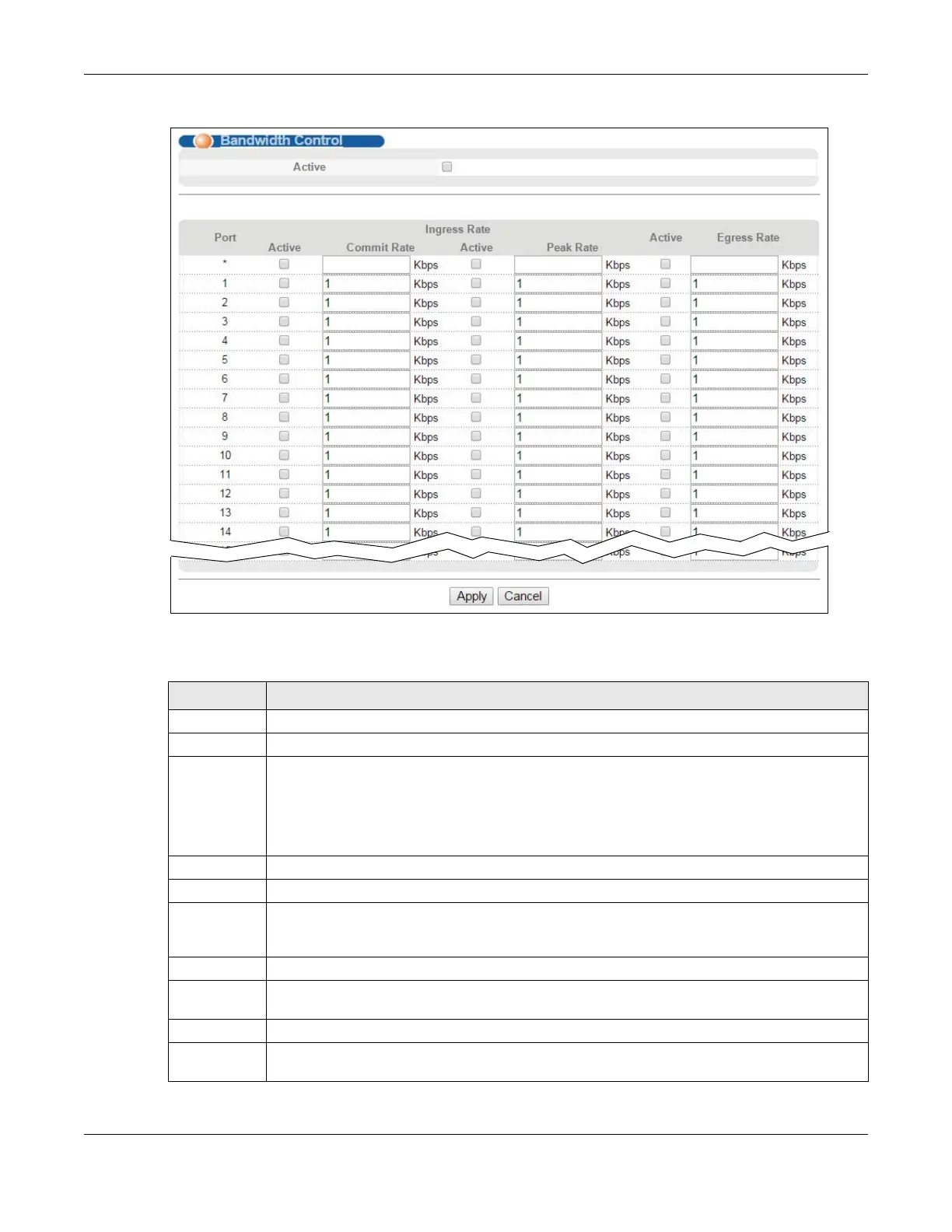

Figure 70 Advanced Application > Bandwidth Control
The following table describes the related labels in this screen.
Table 39 Advanced Application > Bandwidth Control
LABEL DESCRIPTION
Active Select this check box to enable bandwidth control on the Switch.
Port This field displays the port number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row first
to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Ingress Rate
Active Select this check box to activate commit rate limits on this port.
Commit
Rate
Specify the guaranteed bandwidth allowed in kilobits per second (Kbps) for the incoming
traffic flow on a port. The commit rate should be less than the peak rate. The sum of commit
rates cannot be greater than or equal to the uplink bandwidth.
Active Select this check box to activate peak rate limits on this port.
Peak Rate Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the incoming traffic
flow on a port.
Active Select this check box to activate egress rate limits on this port.
Egress Rate Specify the maximum bandwidth allowed in kilobits per second (Kbps) for the out-going traffic
flow on a port.
