Chapter 46 Configure Clone
MES3500 Series User’s Guide
342

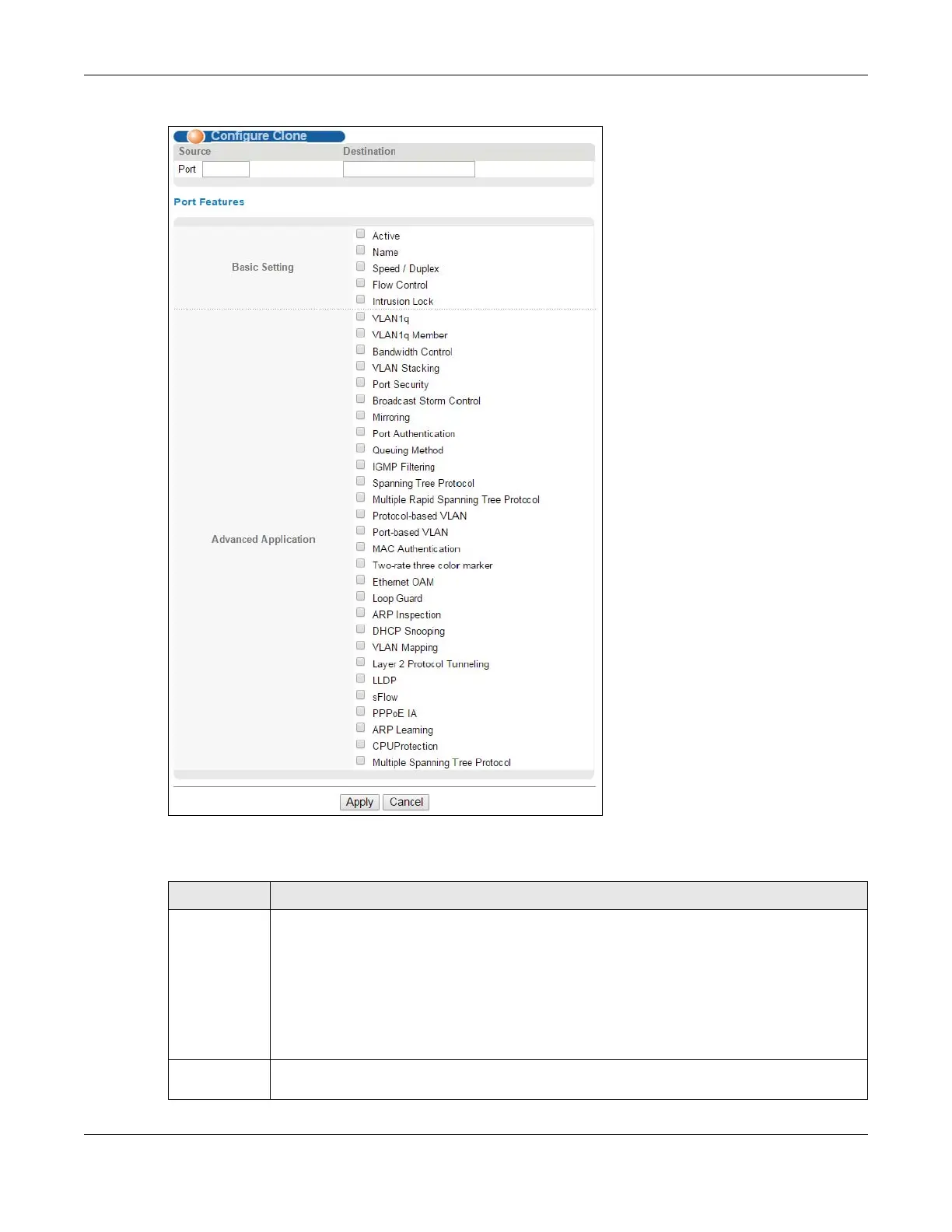

Figure 224 Management > Configure Clone
The following table describes the labels in this screen.
Table 165 Management > Configure Clone
LABEL DESCRIPTION
Source/
Destination
Port
Enter the source port under the Source label. This port’s attributes are copied.
Enter the destination port or ports under the Destination label. These are the ports which
are going to have the same attributes as the source port. You can enter individual ports
separated by a comma or a range of ports by using a dash.
Example:
• 2, 4, 6 indicates that ports 2, 4 and 6 are the destination ports.
• 2-6 indicates that ports 2 through 6 are the destination ports.
Basic Setting Select which port settings (you configured in the Basic Setting menus) should be copied to
the destination port(s).
