Aastra 470 System Manual

Installation
165
Aastra 470 ab R3.0
syd-0337/1.5 – R3.0 – 05.2013

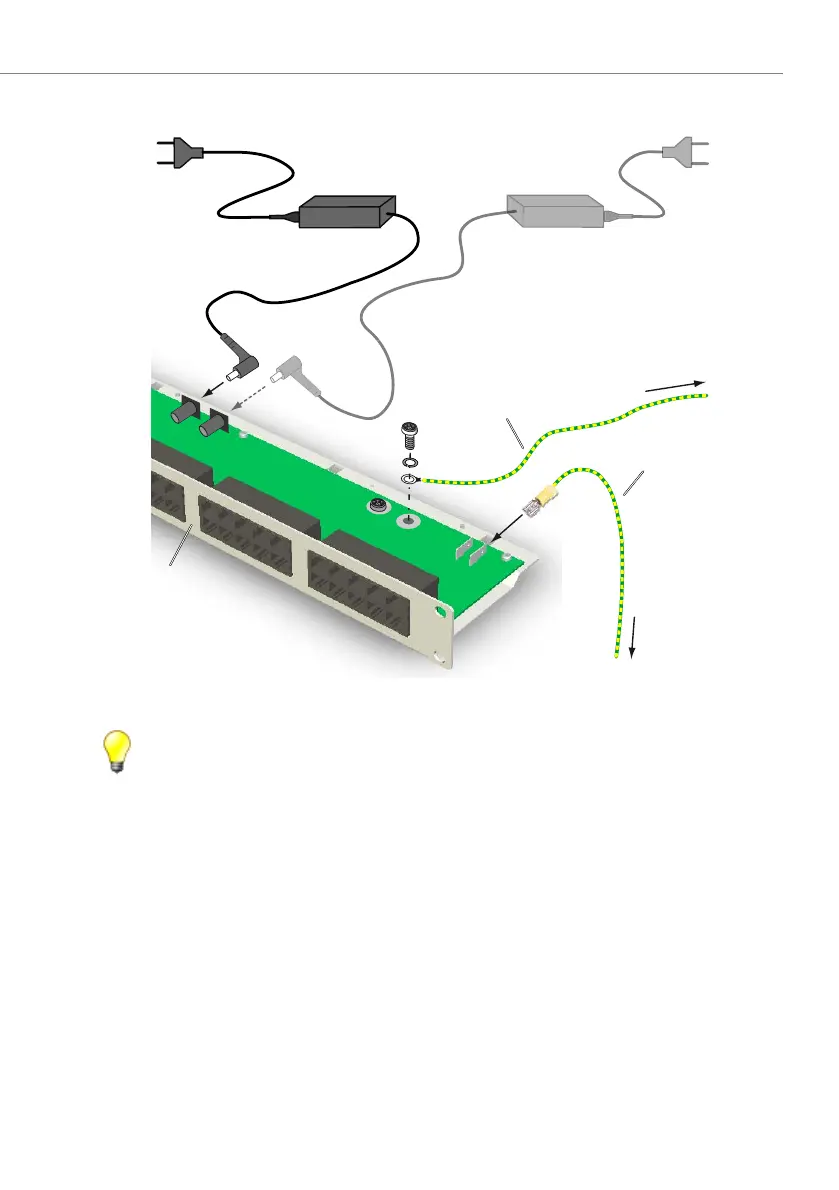

Fig. 68 Connection of an EFOP fan-out-panel
Tips
– Use the same mains socket to connect the power supply of the com-
munication server and the power supply of the EFOP fan-out-panel to
the mains power. This prevents an unwanted switchover in the event
of a mains failure on the EFOP fan-out-panel only.
– In redundancy operation, connect the communication server and the
APS2 auxiliary power supply unit to separately protected mains power.
This will further enhance the system's operating reliability.
EFOP
To the
communica-
tion server
Mains power 2
Power supply 2 (for power
supply redundancy only)
Power supply 1
Mains power 1
To the earth
connection
Stranded copper
yellow/ green
4,0 mm
2
unprotected
Copper wire yellow/ green
2,5 mm
2
protected
4,0 mm
2
unprotected
