Installation
172
Aastra 470 ab R3.0
syd-0337/1.5 – R3.0 – 05.2013

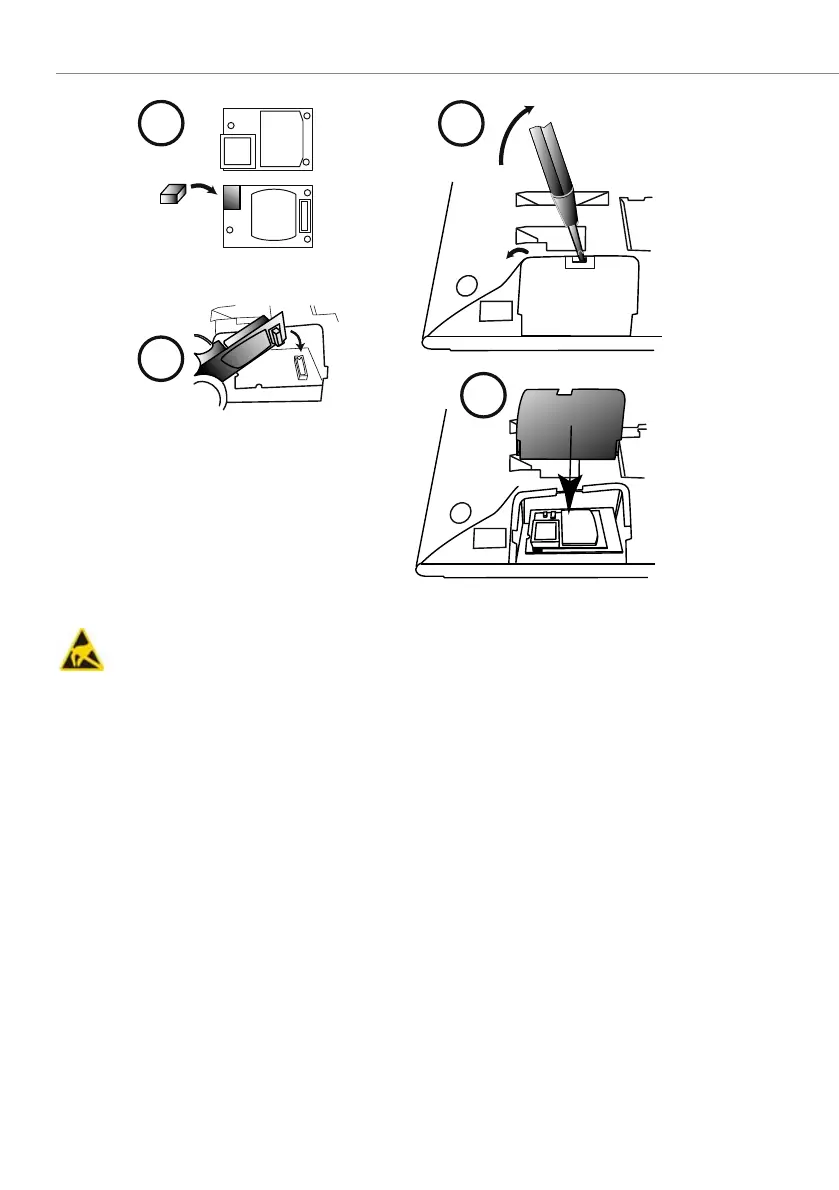

Fig. 71 Assembly of the Bluetooth module
Warning
The system's reliability can be adversely affected by electrostatic dis-
charges caused by touching electronic components and elements, and
subsequent damage can result. Always observe the ESD guidelines.
1. Fit foam spacers on the connector side of the Bluetooth module (for the position
of the foam spacer see ➀). The spacer ensures that the Bluetooth module sits se-
curely.
2. Carefully remove the cover for the Bluetooth module on the underside of the
phone using a suitable screwdriver (see ➁).
3. Connect the Bluetooth module. Make sure it is securely fitted (see ➂).
4. Fit the cover for the Bluetooth module back into place and press home until it
snaps into place (see ➃).
