ABB XFCG4 6413 - Figure 88 XFC 6413 Component;Cable Locations; Table 15: XFC 6410 and 6413 Component Identifications

116 XFC G4 2103335 Rev AB

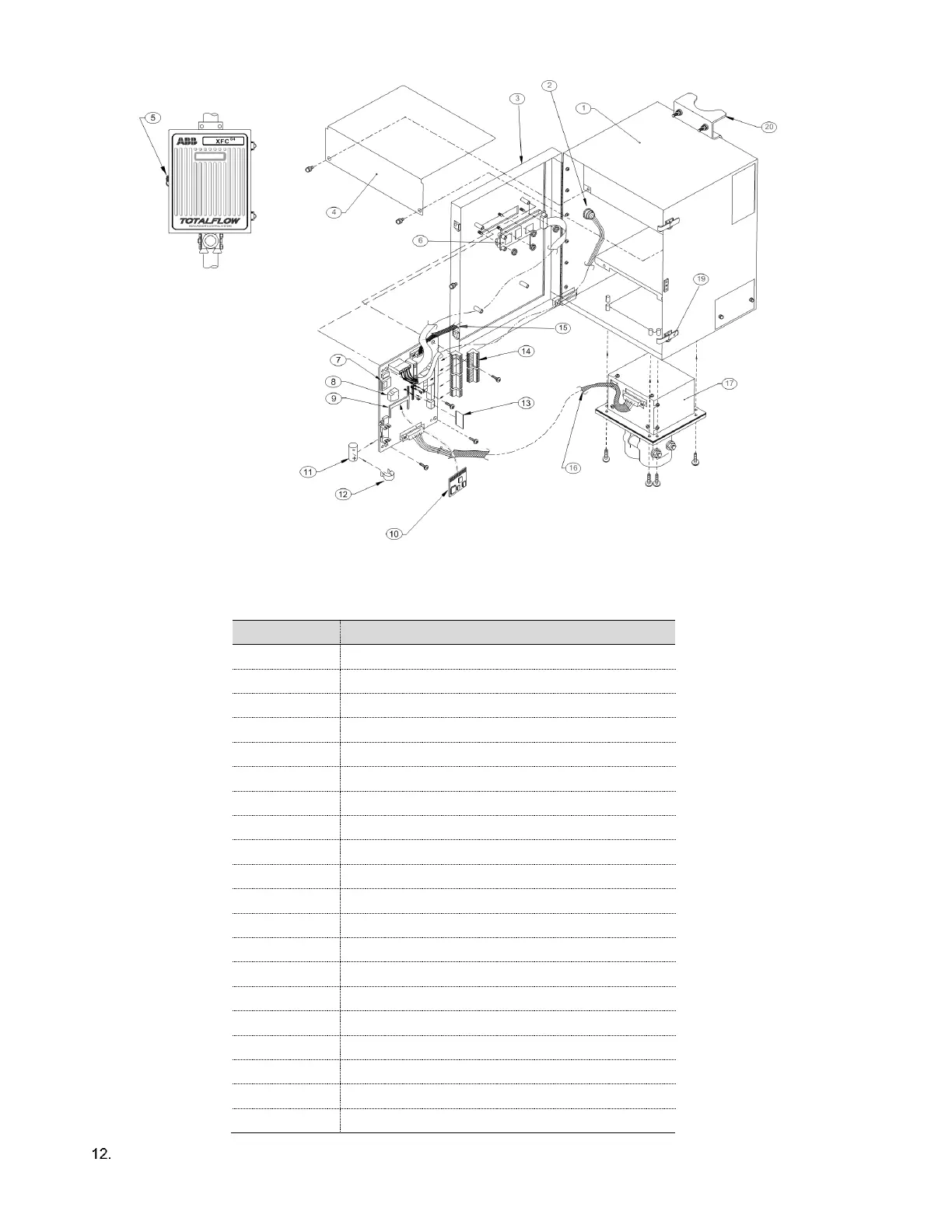

Figure 88 XFC
G4
6413 Component/Cable Locations
Table 15: XFC
G4
6410 and 6413 Component Identifications
ID Number
Description
1
Enclosure
2
PCCU Internal Cable
3
Door
4
Radio Compartment Cover (6413/6414 only)
5
External PCCU Connector
6
LCD Display
7
SD Card
8
Ethernet Connector
9
CPU Engine Card Connector
10
CPU Engine Card
11
Lithium Battery
12
Battery Cover
13
Communication Module
14
Phoenix Connector Plug Module
15
TFIO Module Interface Cable (6413/6414 only)
16
XIMV Interface Cable (not on pulse models)
17
XIMV (not on pulse models)
18
Battery/Compartment Cover
19
Door Latch
20
Pipe Mounting Bracket
Remove battery pack from battery compartment.
