Leak check all connections.
The manifold input lines are now installed.
IMPORTANT NOTE: Leaks in the tubing or manifold will introduce errors when calibrating XIMVs.
4.7 Direct Mount Installation for Pulse Meter
If installing the flow computer directly to a meter, use the following procedure. Before beginning, review the procedure and the
Direct Mount drawings (see Figure 49 through Figure 51).
IMPORTANT NOTE: All required hardware for mounting the flow computer to the meter is supplied by Totalflow,
as ordered.
4.7.1 Step-by-Step Instructions
Tools needed
— 3/8” combination wrench or socket with drive
To perform a direct mount installation for a pulse meter:
Attach the flow computer to the pulse meter. Before aligning with the manifold, ensure that all seals are in place
around the mounting hardware.
Secure the flow computer to the meter, using the four 3/8-inch bolts supplied with the XFC
G4
.

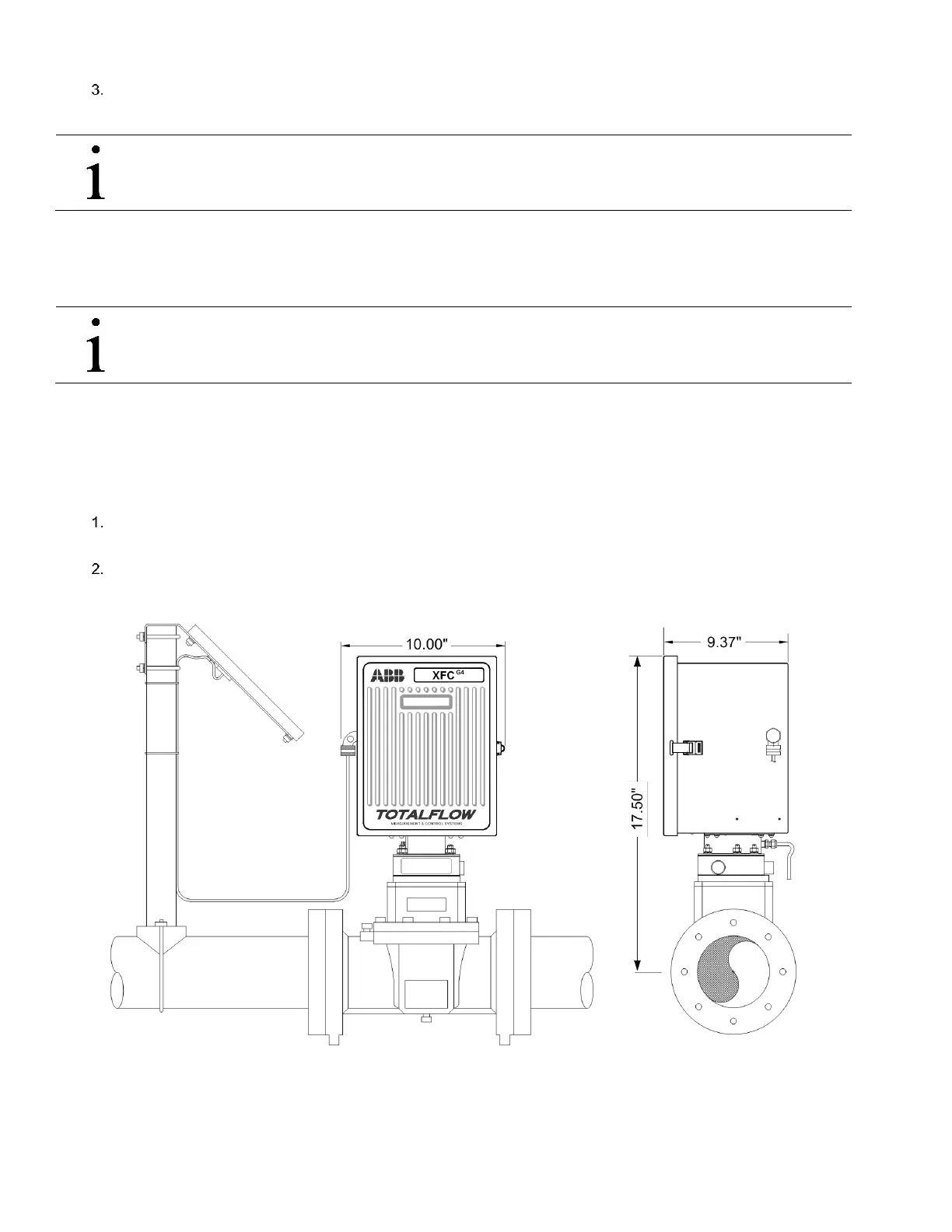

Figure 49 Model XFC
G4
6411 Direct Mounted
