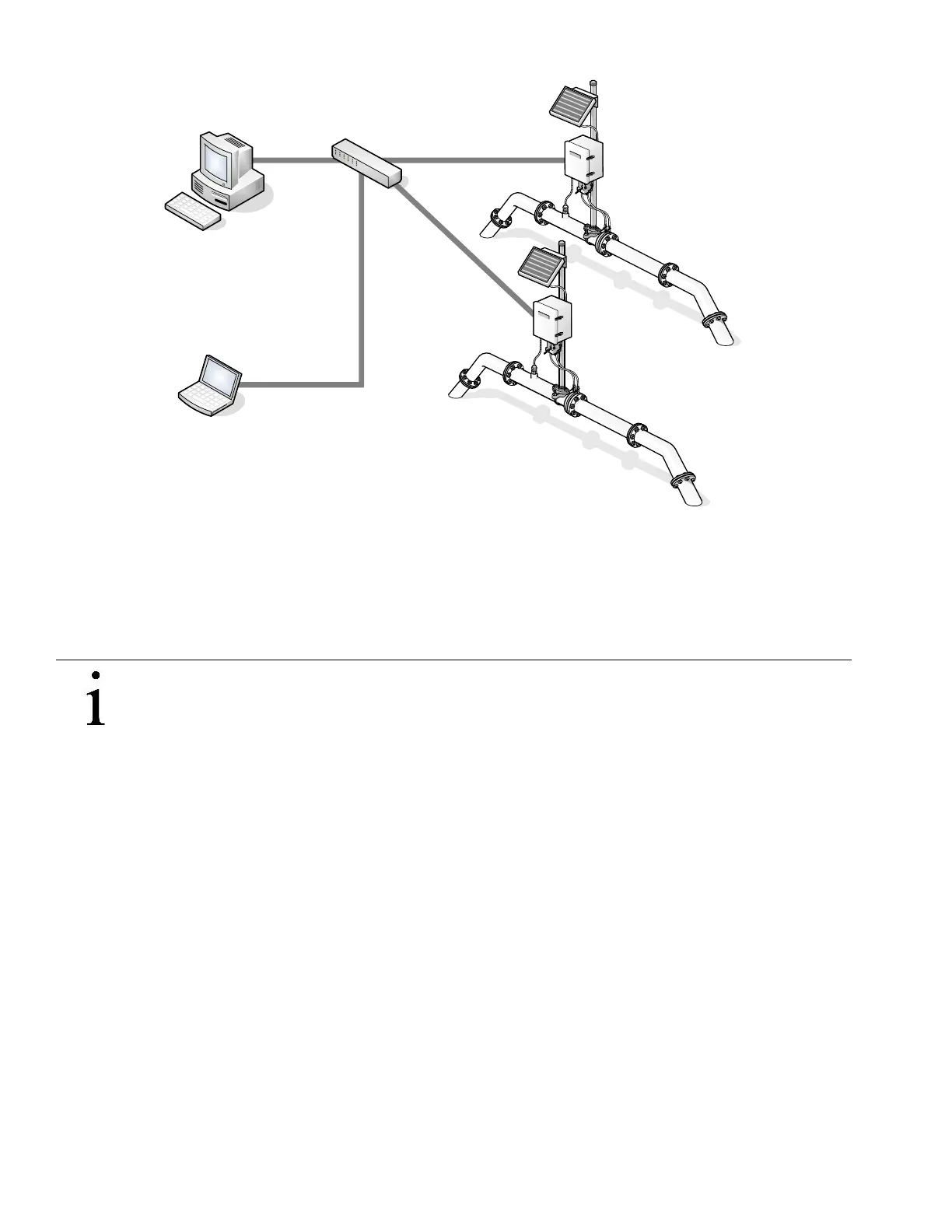

Figure 18 Ethernet Connectivity Diagram
3.14 Optional Key Pad
The XSeries models may be configured to include the optional keypad (see Figure 19) located on the front cover of the unit.
Keypad entry allows the user to monitor programmed display items without using additional equipment. See Figure 20 through
Figure 21 for outline dimensions.
IMPORTANT NOTE: To view the various display items, the items must be preprogrammed for keypad entry. All
the display items may be programmed for an application or individually display items within the application using
PCCU32.
`
Computer-2
Hub, Switch or Router
Computer-1
XFC
G4
XFC
G4
