94 XFC G4 2103335 Rev AB

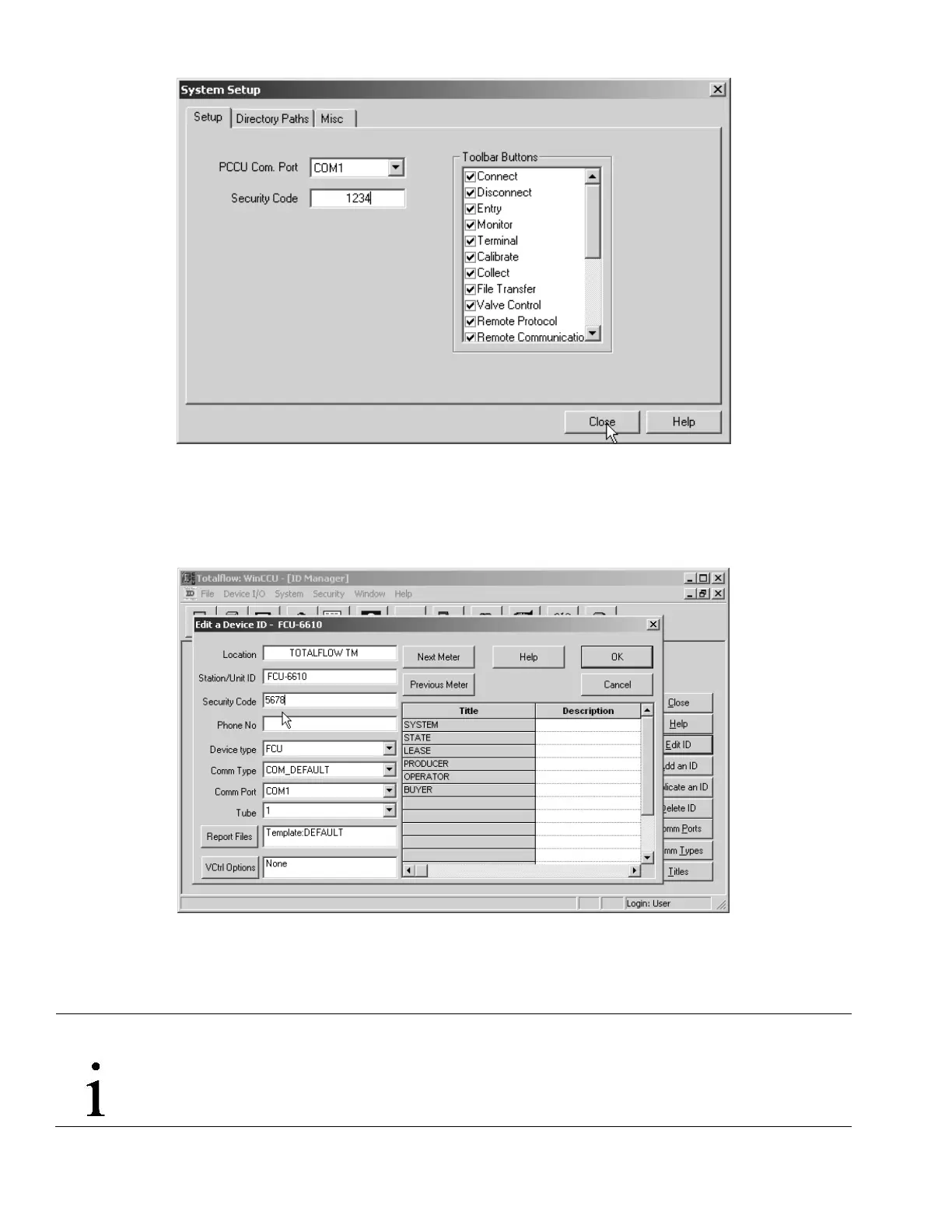

Figure 72 PCCU32 Security Code Setup
5.5.5.3 WinCCU32 Security
WinCCU32 will also require appropriate security codes (see Figure 73). Highlight the appropriate meter, and click Edit ID.
Figure 73 WinCCU32 Security Code Entry in Meter I.D.
By entering a security code level 2 (previous example) of ‘5678’. This gives the WinCCU32 operator full read/write access to the
meter.
IMPORTANT NOTE: Modbus access to the meters is not protected by the security codes.
If the Security Switch S1 located on the flow computer board is in the OFF position, no security code has to be
entered to access the operating parameters even if there is one programmed into the device.
