ABB XFCG4 6413 - Figure 34 XFC Pipe Mounted

51 XFC G4 2103335 Rev AB
The flow computer enclosure is now pipe mounted.
IMPORTANT NOTE: Orifice - Position the flow computer high enough on the pipe to allow slope from the
externally mounted manifold to the tap valves.
Pulse – Position the flow computer high enough on the pipe to allow slope from the externally mounted static
pressure tap valve.
See Figure 35 through Figure 38 for pipe mounted dimensions.

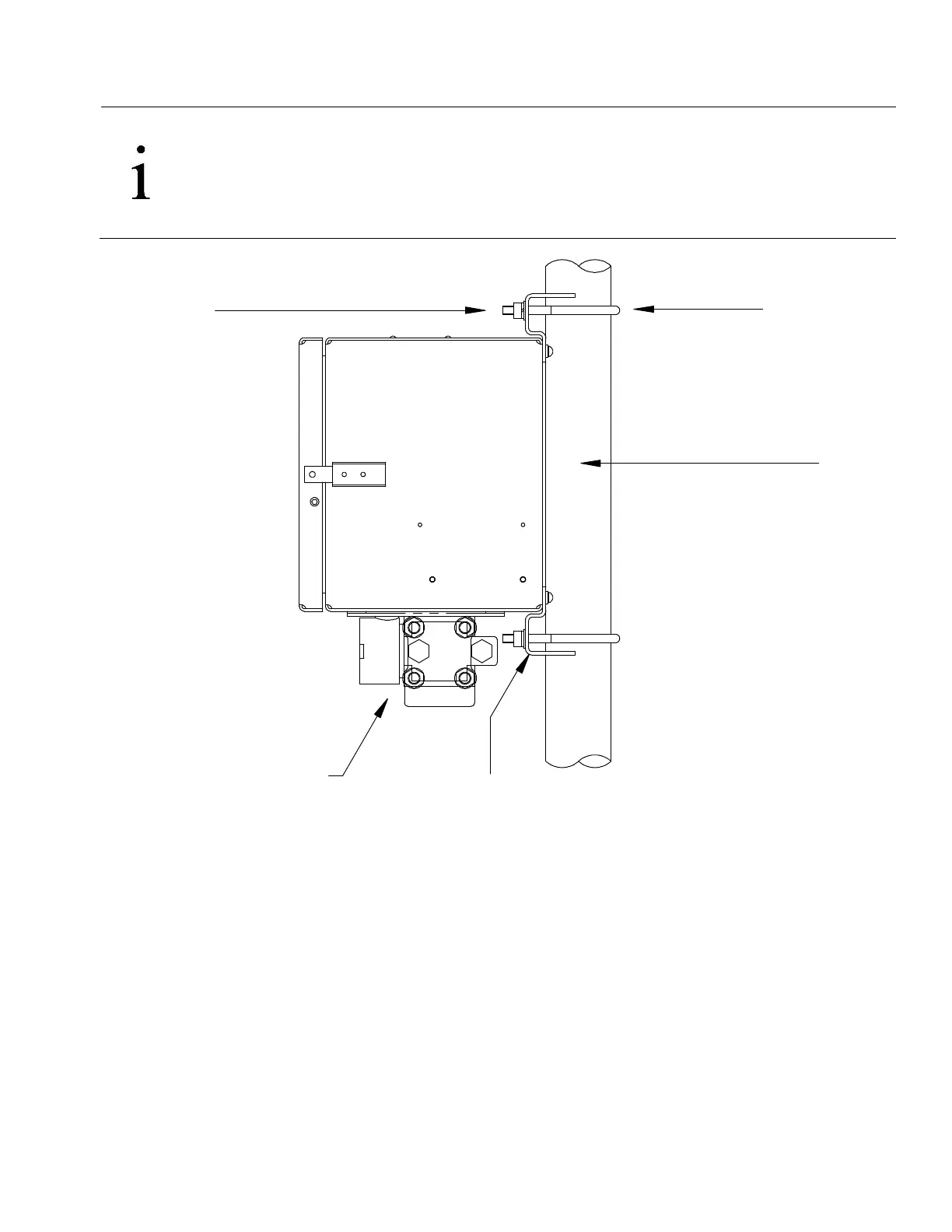

Figure 34 XFC
G4
Pipe Mounted
Flat and lock washers
2 " Mounting Pipe
U - Bolt
with nut
Mounting Bracket
XIMV/AMU
