ABB XFCG4 6413 - Static Pressure Input Line; Figure 51 Model XFC 6714 Direct Mounted; G4 6714 Direct Mounted

68 XFC G4 2103335 Rev AB

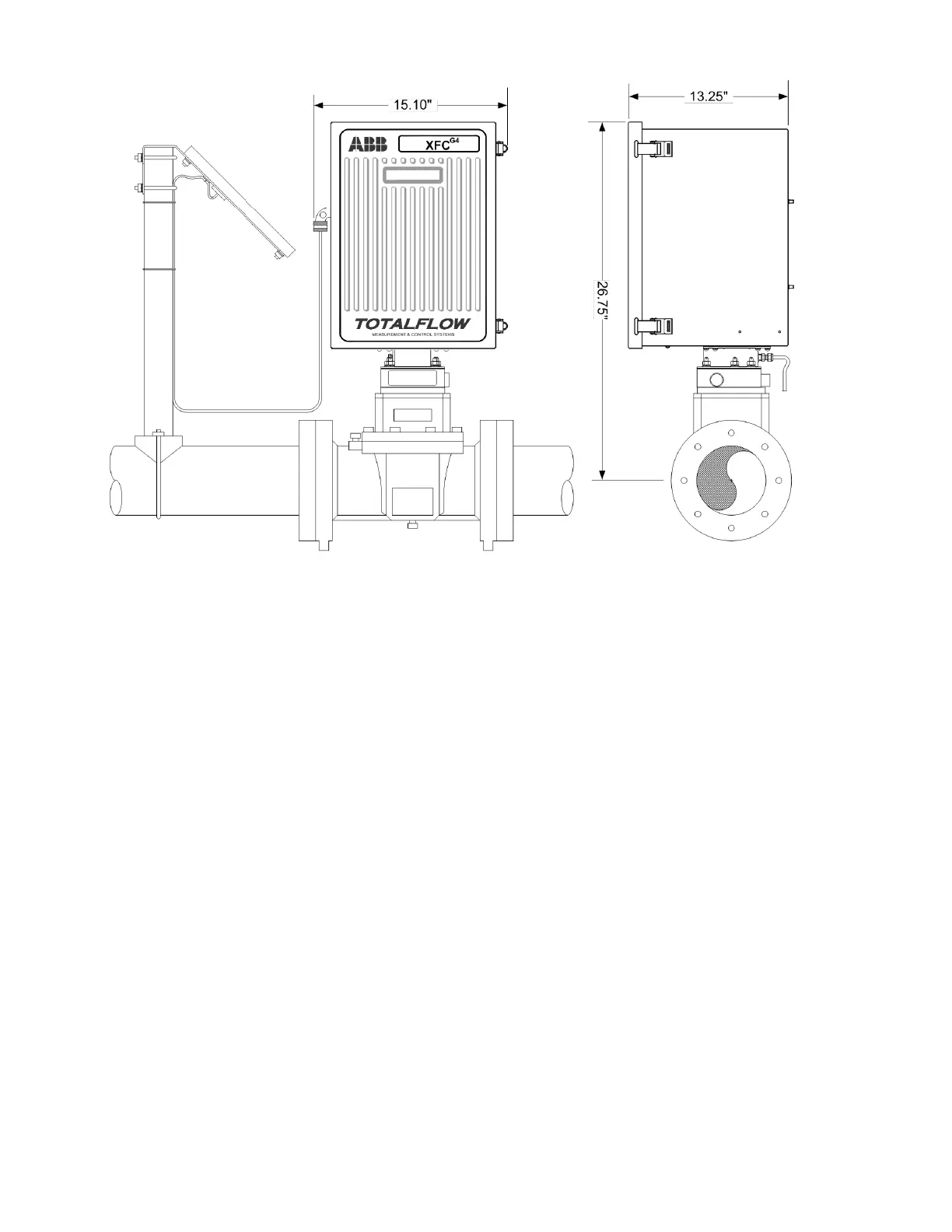

Figure 51 Model XFC
G4
6714 Direct Mounted
4.8 Static Pressure Input Line
4.8.1 Description
The following procedure will provide the instructions necessary to install the static pressure input line. The static pressure input
line terminates in either the rear or side pressure ports on the flow computer mounting block. The block is located on the bottom
of the flow computer (see Figure 52). Installation is the customer’s responsibility.
