124 XFC G4 2103335 Rev AB
Remove any remaining gasket that is adhered to the bottom of the cabinet.
IMPORTANT NOTE: Bottom of cabinet should be clean and free of any materials that may keep the new gasket
from sealing during installation of replacement XIMV.
Perform steps 10 to 14 in reverse order.
Tighten securely the eight mounting screws.
Reconnect the power by performing steps 5 and 6 in reverse order.
IMPORTANT NOTE: Before placing unit back into operation, the flow computer must be calibrated as described
in section 6.13, Calibration, page 126.

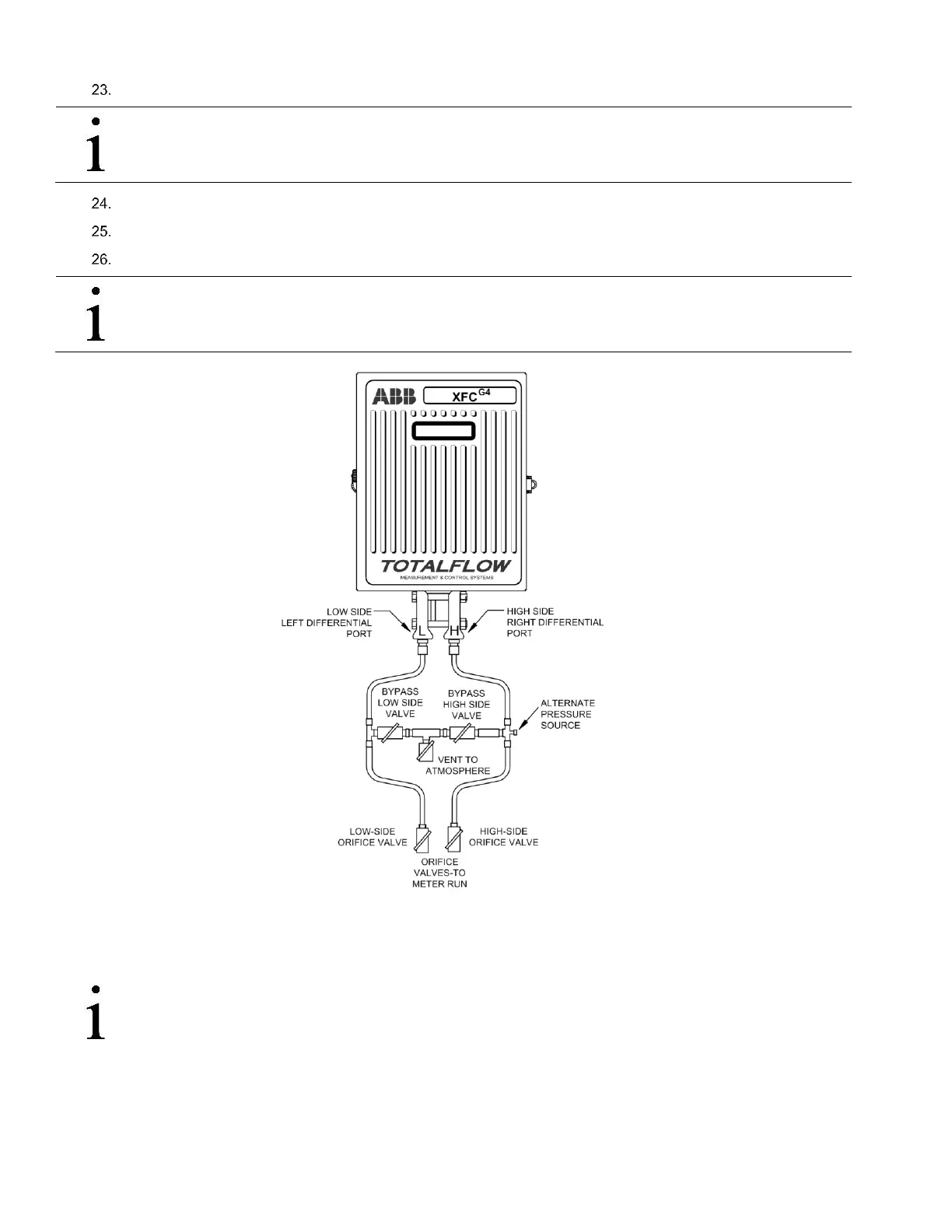

Figure 92: Flow Computer with Discrete Manifold
6.12 Replacing Static Pressure Transducer
IMPORTANT NOTE: Under no circumstances shall the XIMV static pressure transducer cover be removed.
Removal of this cover, and entry into interior of static pressure transducer, voids the warranty. If the static
pressure transducer requires servicing, the entire assembly, including cable, must be removed from the flow
computer, securely packaged for shipping and returned to Totalflow.
Equipment needed:
-Multi Meter (MM)
-Crescent wrench
