2D-LC User Guide 107
5 2D-LC Data Acquisition in MassHunter Workstation 11
Instrument Status
Instrument Status
The Instrument Status window shows the status of each device configured with
the instrument. The possible values for Status are shown in the following figure.
You also set nonmethod control and configuration parameters for the LC devices
and the MS instrument.

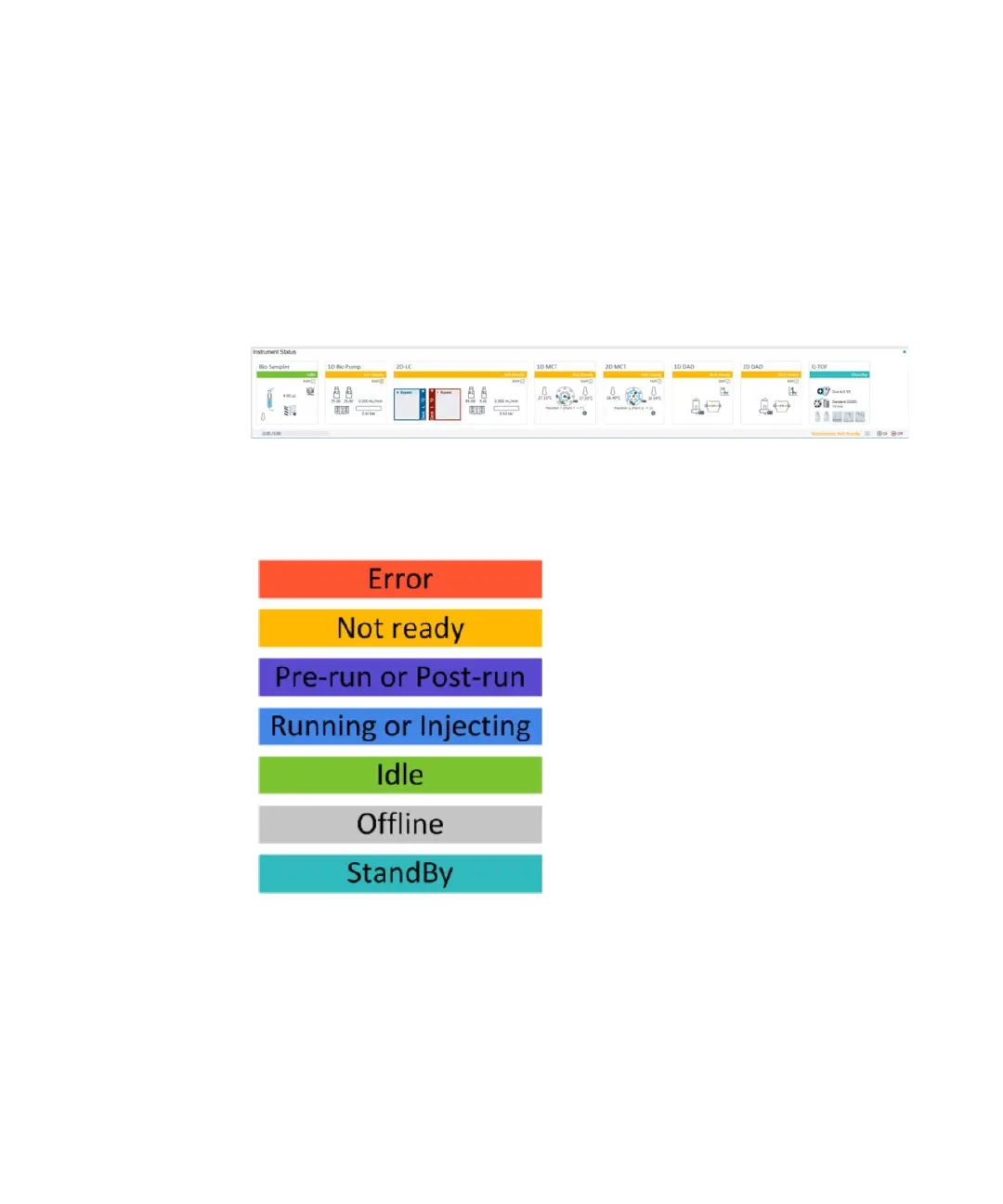

Figure 52 Instrument Status for a full 2D-LC Solution
A shortcut menu is available for each device. This window displays each device's
status both as text and by its color-coding:
Figure 53 Color code for status
