13 Parts for Maintenance
Valve Head Parts
2D-LC User Guide 342
Valve Head Parts

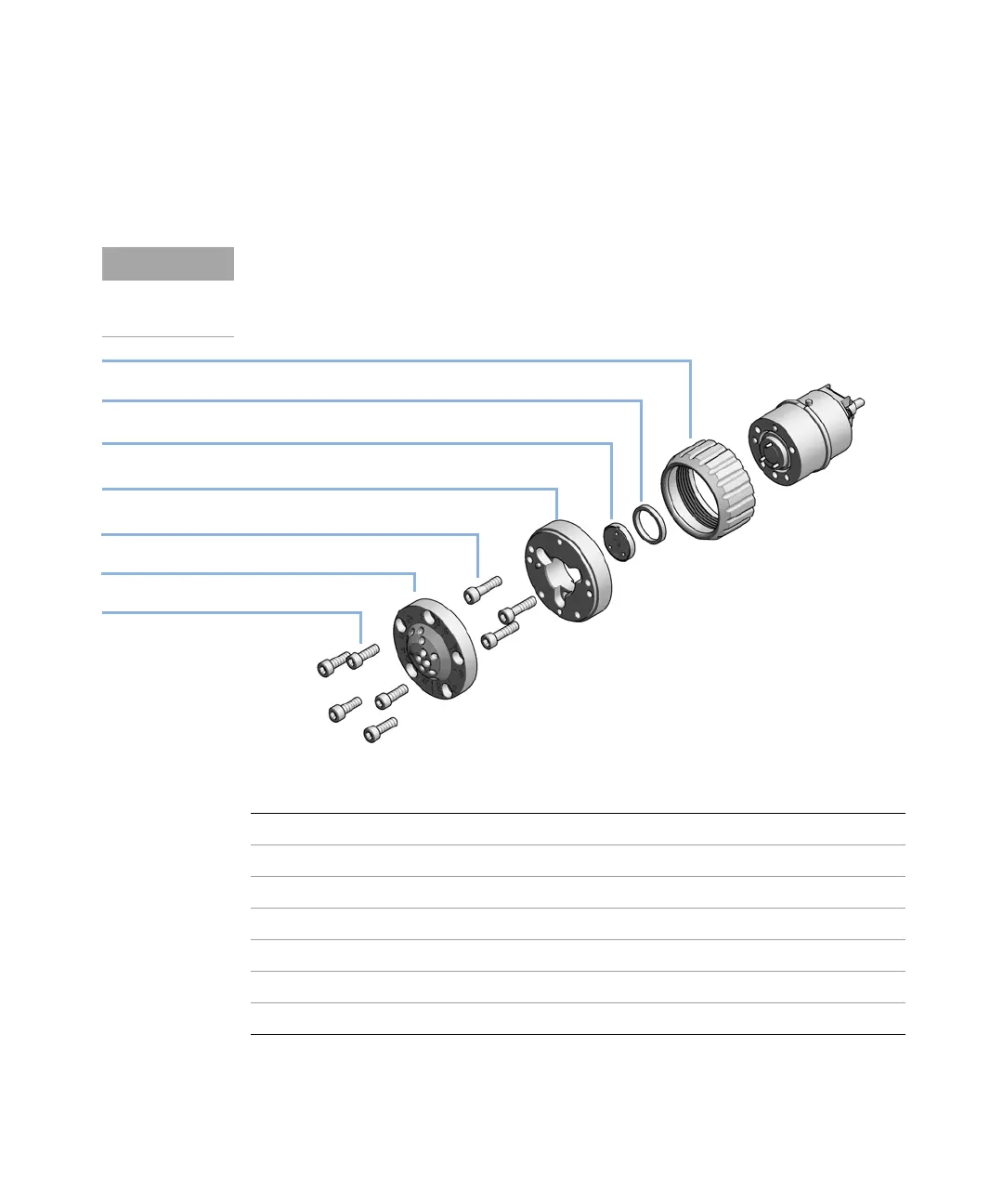

Figure 166 Valve Head Parts (example)
The figure below illustrates replacement parts for the valve heads, with the
12-position/13-port Selector valve as an example. The valves can vary in their
appearance and do not necessarily include all of the illustrated parts. Neither,
every spare part is available for each flavor of the valve.
1Stator screws
2 Stator head assembly
3 Stator ring screws (not available)
4 Stator ring (available for service only)
5 Rotor seal
6 Bearing ring
7 Spanner nut (available for service only)
