2D-LC User Guide 173
6 Method Parameters
Setup 2D Gradient Graphically
Setup
2
D Gradient Graphically
1 Load the initial
2
D gradient in the Analytical Gradient Preview.
2 To change the initial gradient, double click on the purple line.

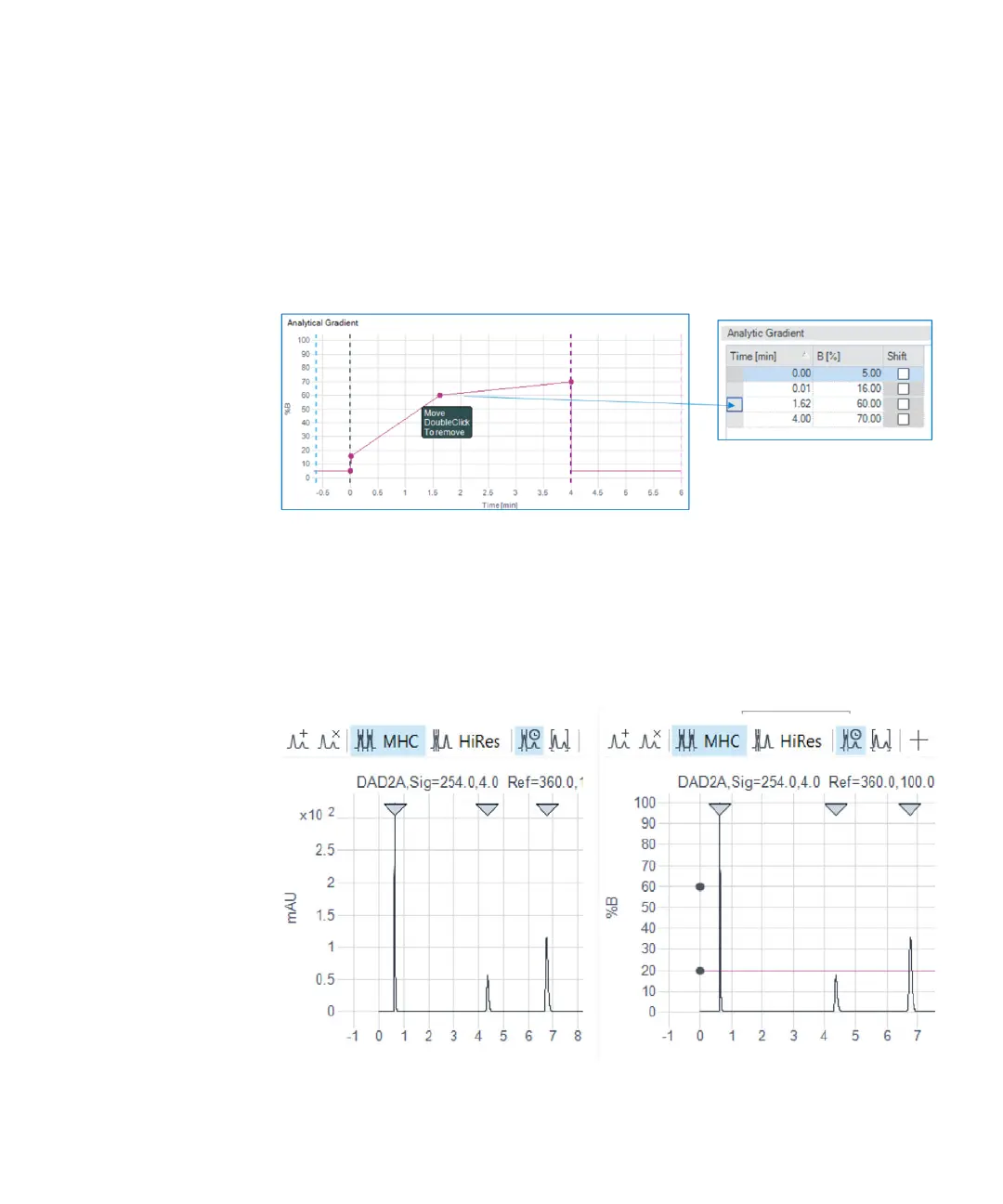

Figure 89 Analytical gradient
This adds a gradient point to the line (purple point). This gradient point can be
moved. To add annother gradient point, double click on the purple line again.
To adjust analysis and equilibration time, move the corresponding lines. All is
taken up by tables.
3 To display the name of the y-axis in %B, activate the
2
D gradient view.
Figure 90 Changing the Labeling of the coordinate axes
