5 2D-LC Data Acquisition in MassHunter Workstation 11
2D-LC User Interface
2D-LC User Guide 108
2D-LC User Interface
The instrument status window shows the current state of each of the device. The
2D-LC device is in this example not ready. You can click the button in any device
pane to get help on that device. The icons and the information box are visible
when you hover over that. In this case, the drive of the binary pump is off. Click
the green On button in the UI will activate the pump.

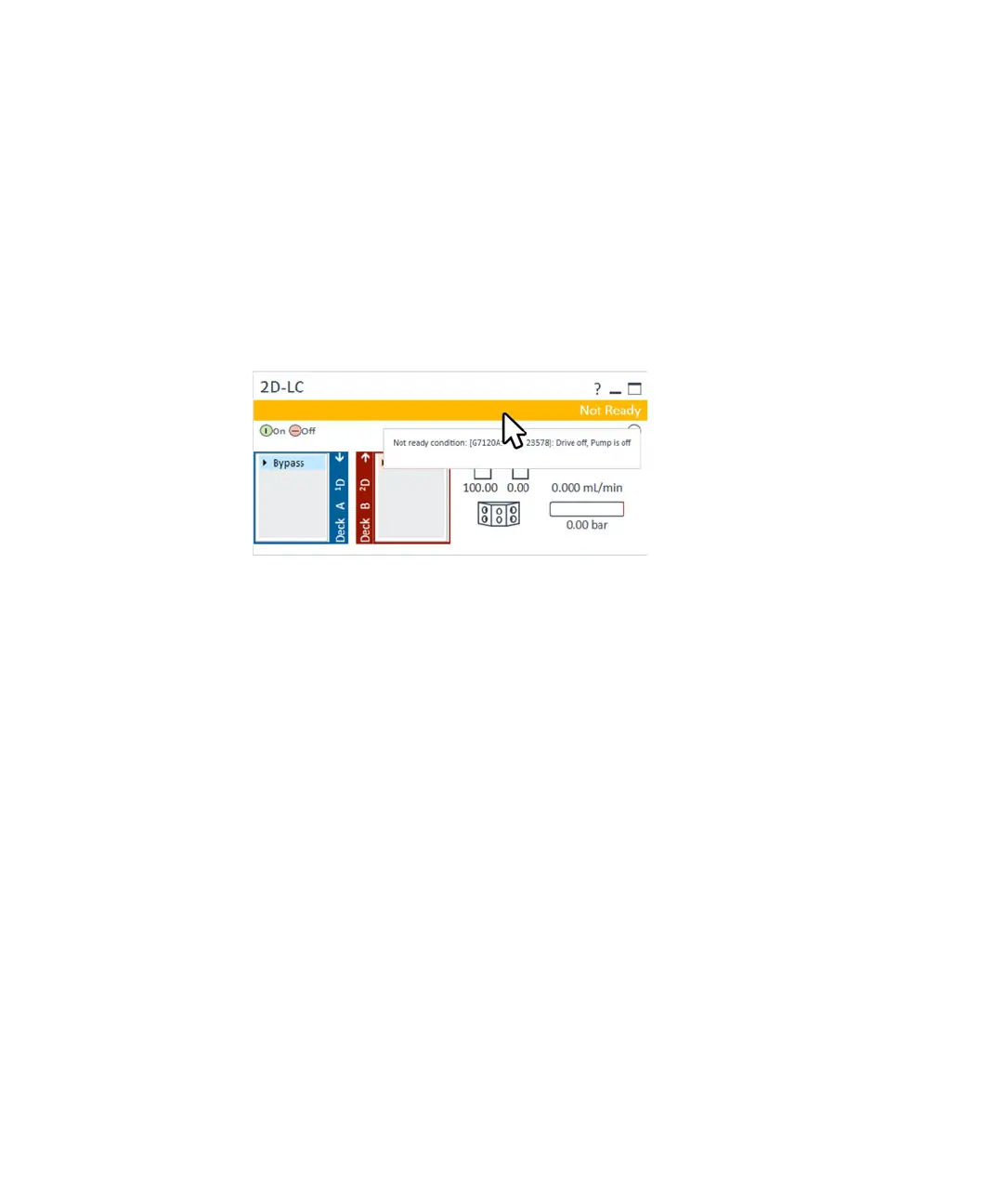

Figure 54 2D-LC help information
Additional Information in the 2D-LC User Interface
The instrument dashboard can offer some additional settings and information.
In the full view of the 2D-LC UI, a box of actuals is visible. This additional view can
be displayed by hovering over the panel and click the square on the upper right
side of the interface. Then several instrument signals like flow and pressure etc.
show up. By clicking in the corner again, you can undo the step and the box will
disappear.
