Agilent Technologies 1290 Infinity II 2D-LC User Manual

6 Method Parameters
Preview (2D-LC)
2D-LC User Guide 154
Preview (2D-LC)
The Preview panel shows loaded reference chromatogram and the 2D-LC
gradient profiles in one or two windows:
• The main window, which is always visible, can show the detector signal of the
reference chromatogram and the
2
D gradient profile over the whole run. It
also allows interactive editing of the cuts with the help of the toolbar.
• The right window, which can be toggled on and off, shows either the
2
D
gradient profile or the flush gradient profile.
Both gradient profiles can be edited interactively. The Preview is synchronized
with the
2
D method parameters so that any changes you make in the Preview are
also updated in the parameters, and vice versa.

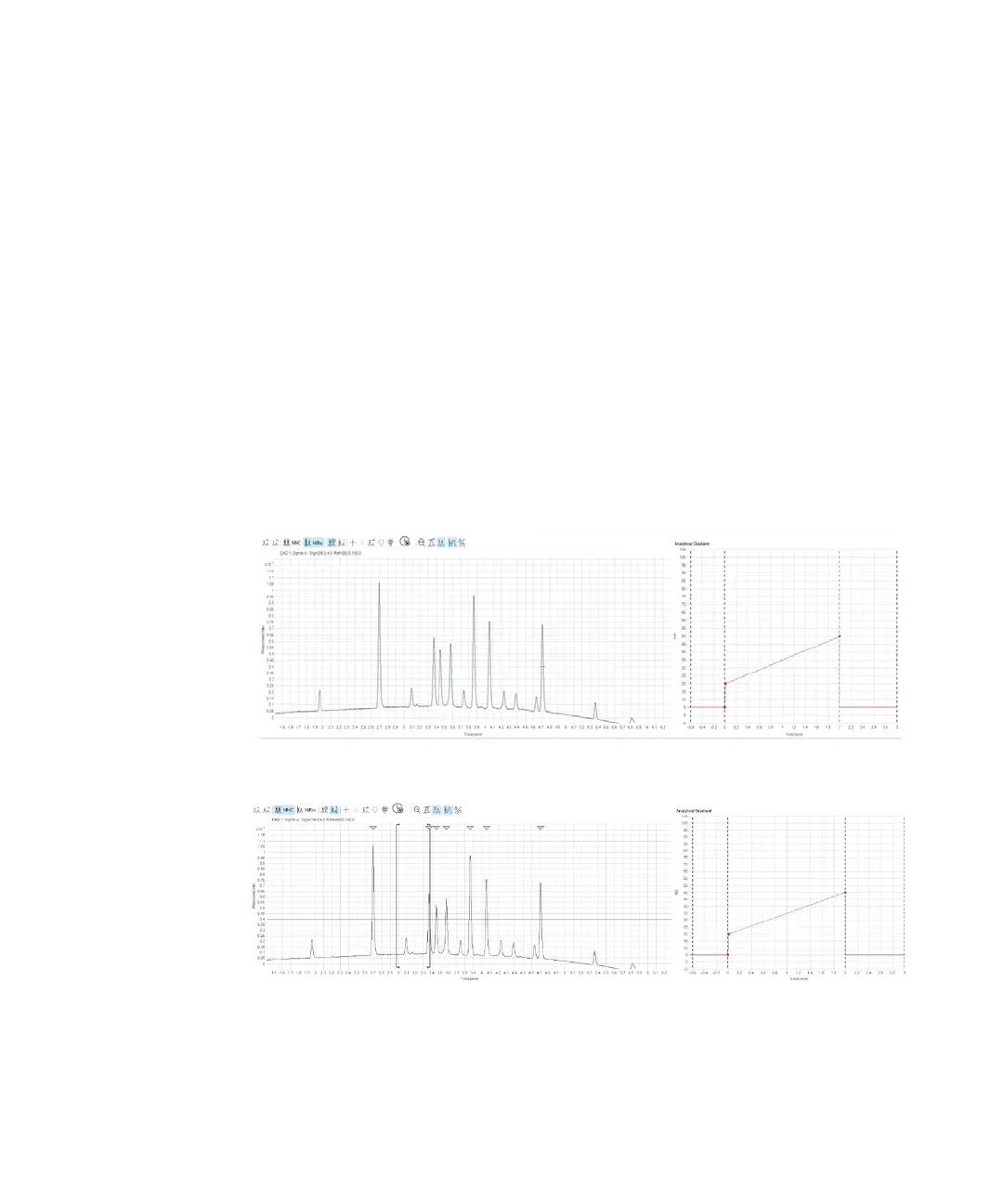

Figure 76 Preview panel with loaded reference chromatogram
Figure 77 Preview panel with threshold settings and detected peaks in the loaded reference
chromatogram
To edit and modify the
2
D method parameters graphically, the following tools are
available in the toolbar:
