Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 101
4 Removal/ Installation, Replacement and Adjustment
Air Cooling
Air Cooling
Section Contents:
Air cooling filter 101
Cooling fan 101
Air cooling flow sensor 102
Air cooling filter
The cooling fan is mounted on the left front side of the instrument and provides air cooling for
the Plasma and RF power supply. The fan filter is mounted in the top of the left hand cover and
is removable to allow cleaning or replacement.

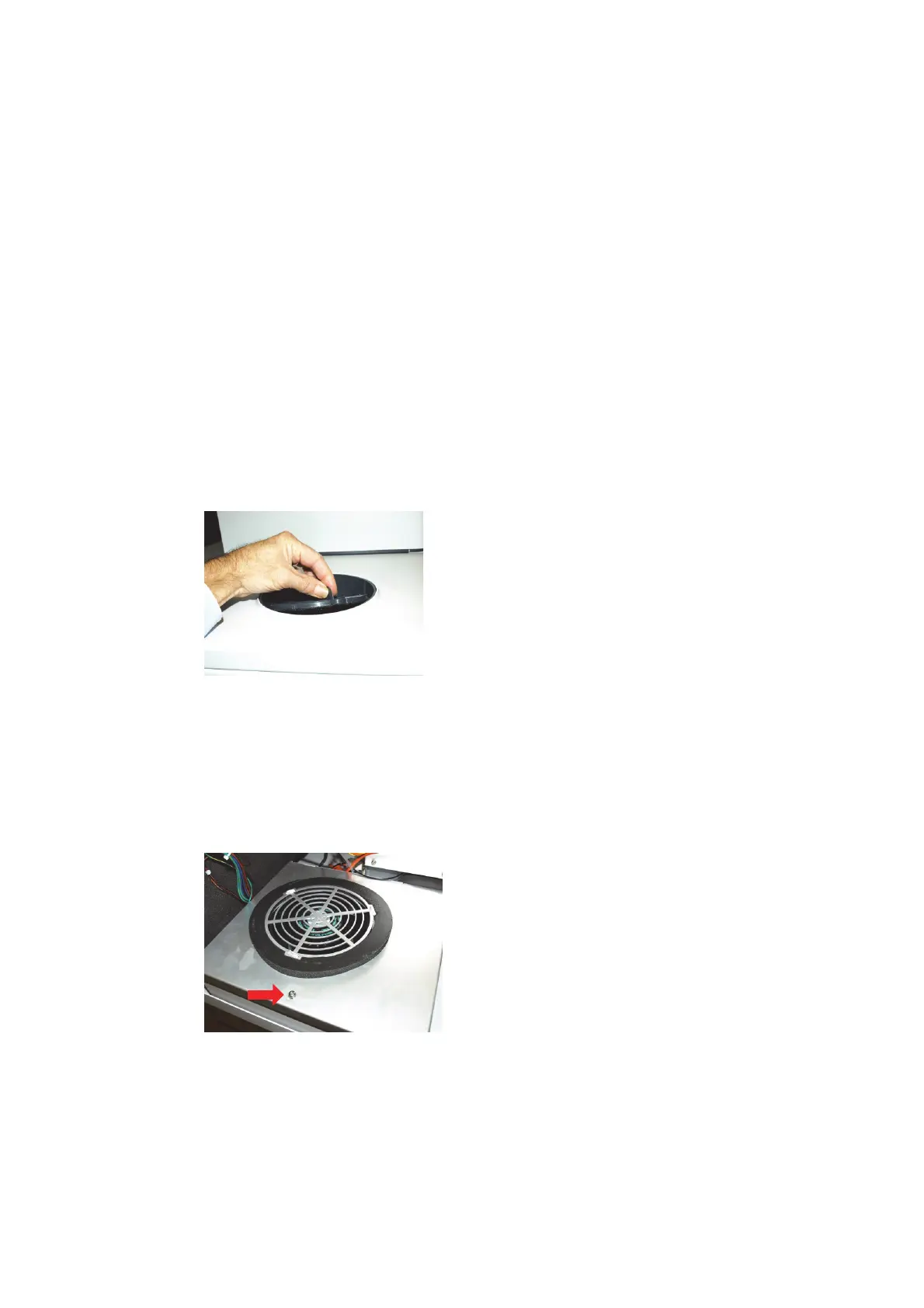

1 Lift up and pull out filter to remove. Note position of notch for replacement.
Cooling fan
Fan is accessible with removal of the left hand side cover and left hand top cover.
