Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 77
4 Removal/ Installation, Replacement and Adjustment
Torch loader
5 When re positioning micro switch ensure molded pin on micro switch locates correctly into
hole of mount before tightening screw.
Torch loader

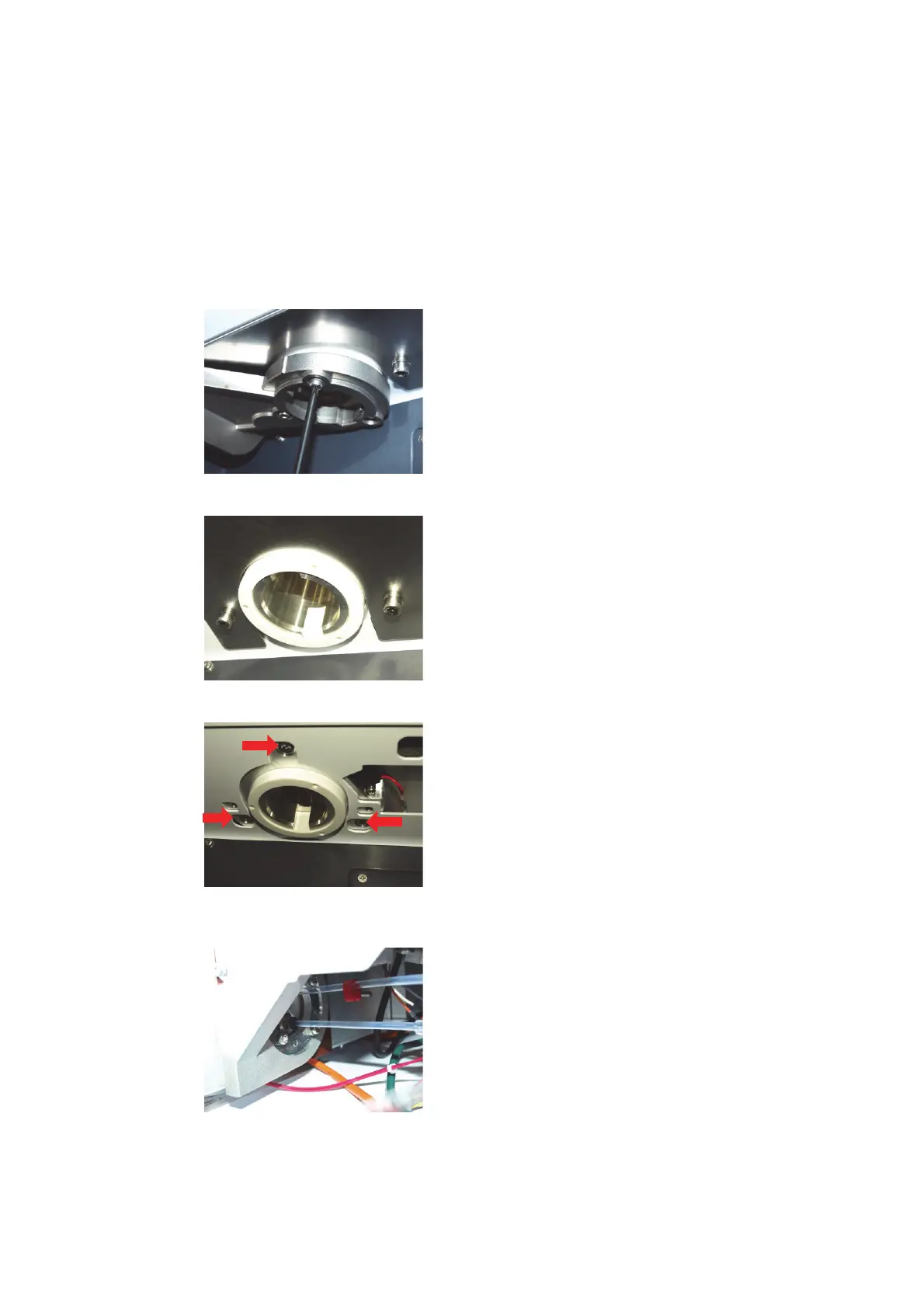

1 Remove 3 torx 20 screws and remove handle.
2 Remove 2 x 5mm hex screws and remove plate.
3 Remove 3 x 5mm hex screws and remove micro switch as per torch loader micro switch
section.
4 Remove 2 plasma gas tubes by pressing quick connect rim and withdrawing tubing.
To Next Page
