Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 181
6 Customer Diagnostics and Problem Solving
Testing RF Water Flow
Testing RF Water Flow
Testing RF water flow (along with Camera Water flow) validates the effectiveness of the cooling
water supply that feeds the instrument.

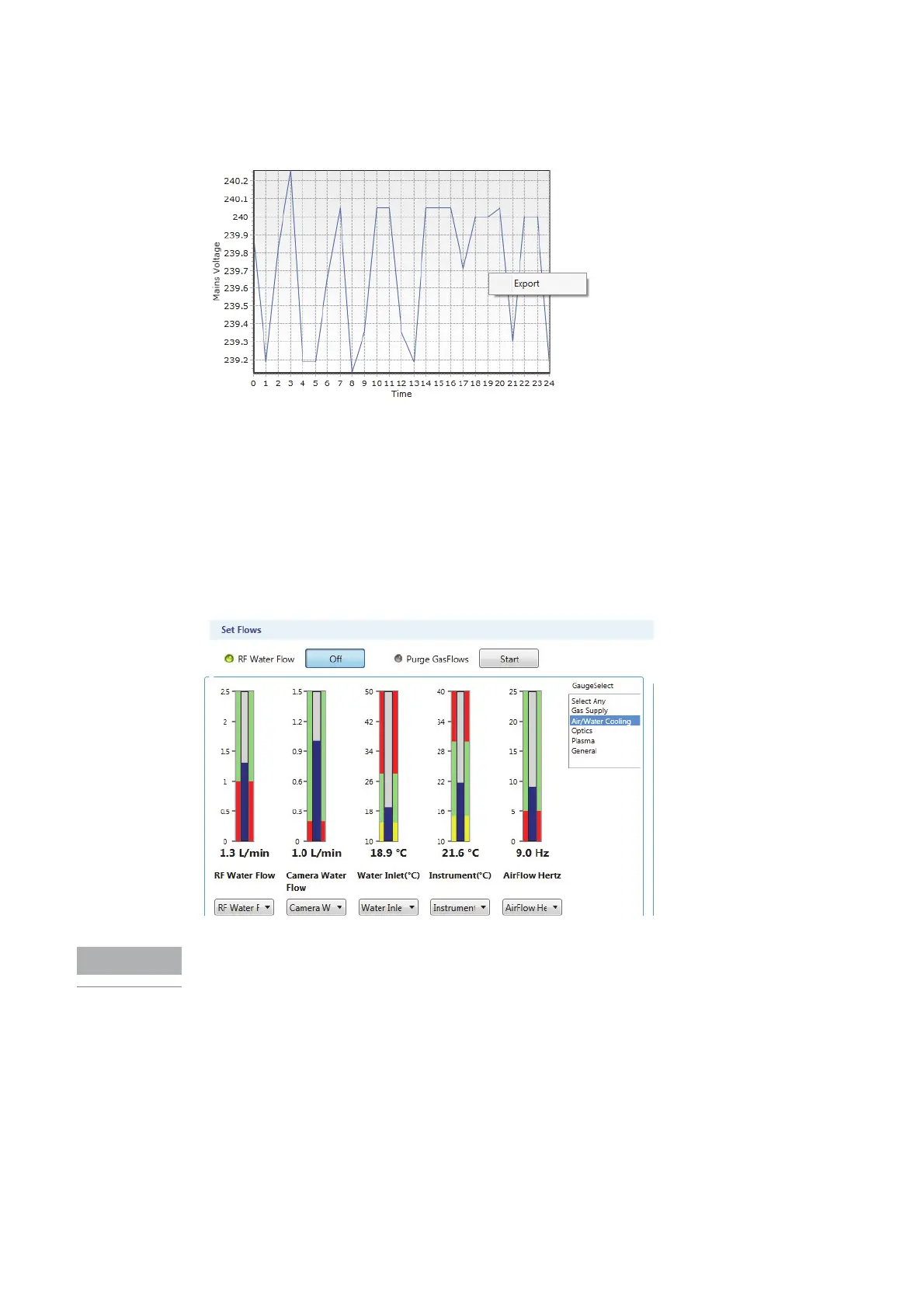

To check RF water flow, select “Air/Water Cooling” Gauge suite and click on RF Water Flow
button. Monitor Water Flow on “RF Water Flow” gauge.
The RF Water Flow will turn off after a set period of time to prevent condensation build up on RF
Generator with the Plasma Off.
Purge Gas Flows Test
The “Purge Gas Flows” button is a useful tool to purge air from gas lines if a change of supply
has occurred. Click on “Purge Gas Flows” button to start the test.
