112 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
4 Removal/ Installation, Replacement and Adjustment
SSRF water inlet temperature sensor

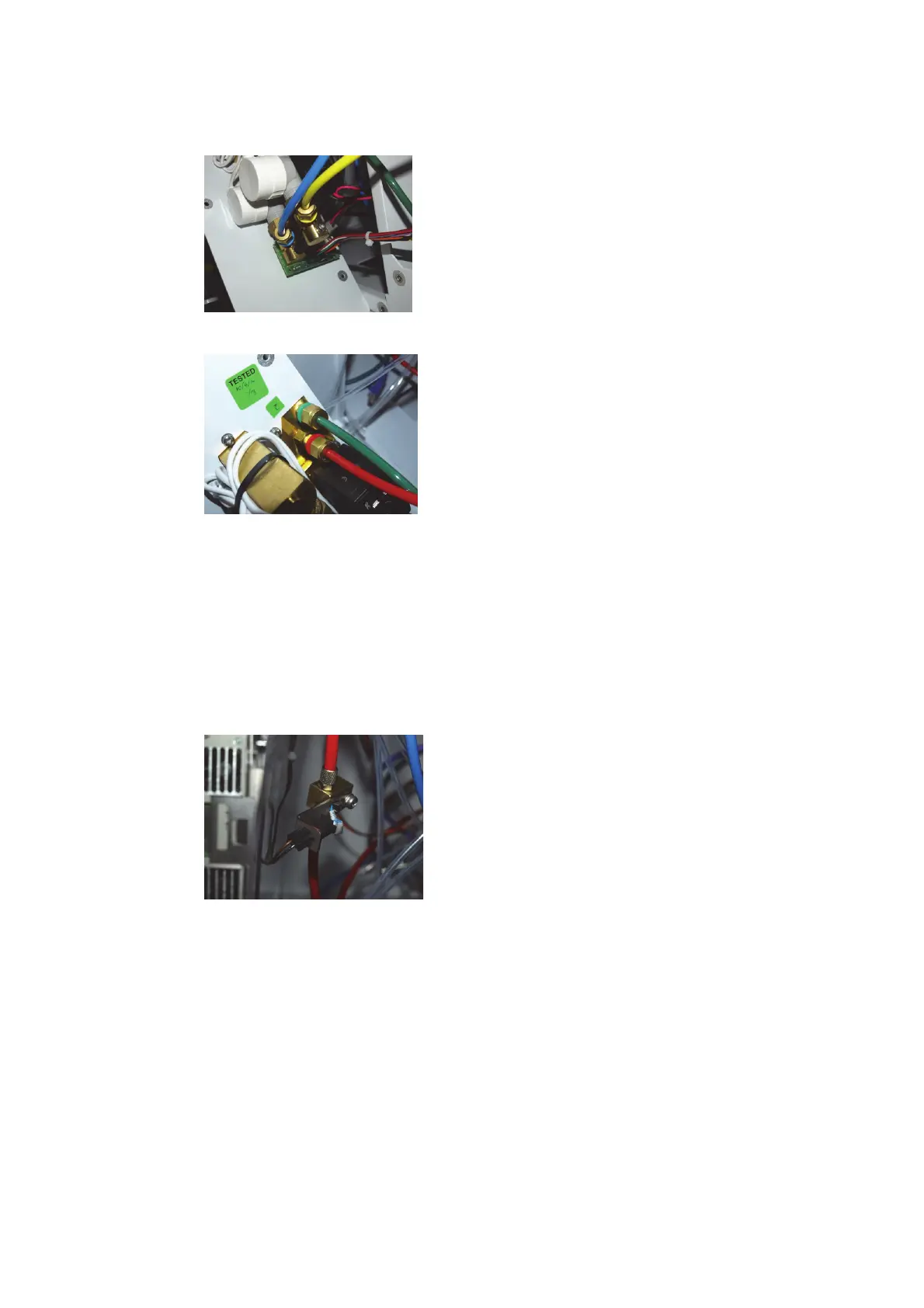

3 Disconnect yellow and blue hoses and cable.
4 Disconnect green and red hoses using wrench.
5 Replace and reconnect module as required.
SSRF water inlet temperature sensor
The water inlet temperature sensor is located inside the lower part of the instrument and can be
accessed via the lower front cover.
1 Unscrew torx 10 screw, unplug and replace as required.
