Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 97
4 Removal/ Installation, Replacement and Adjustment

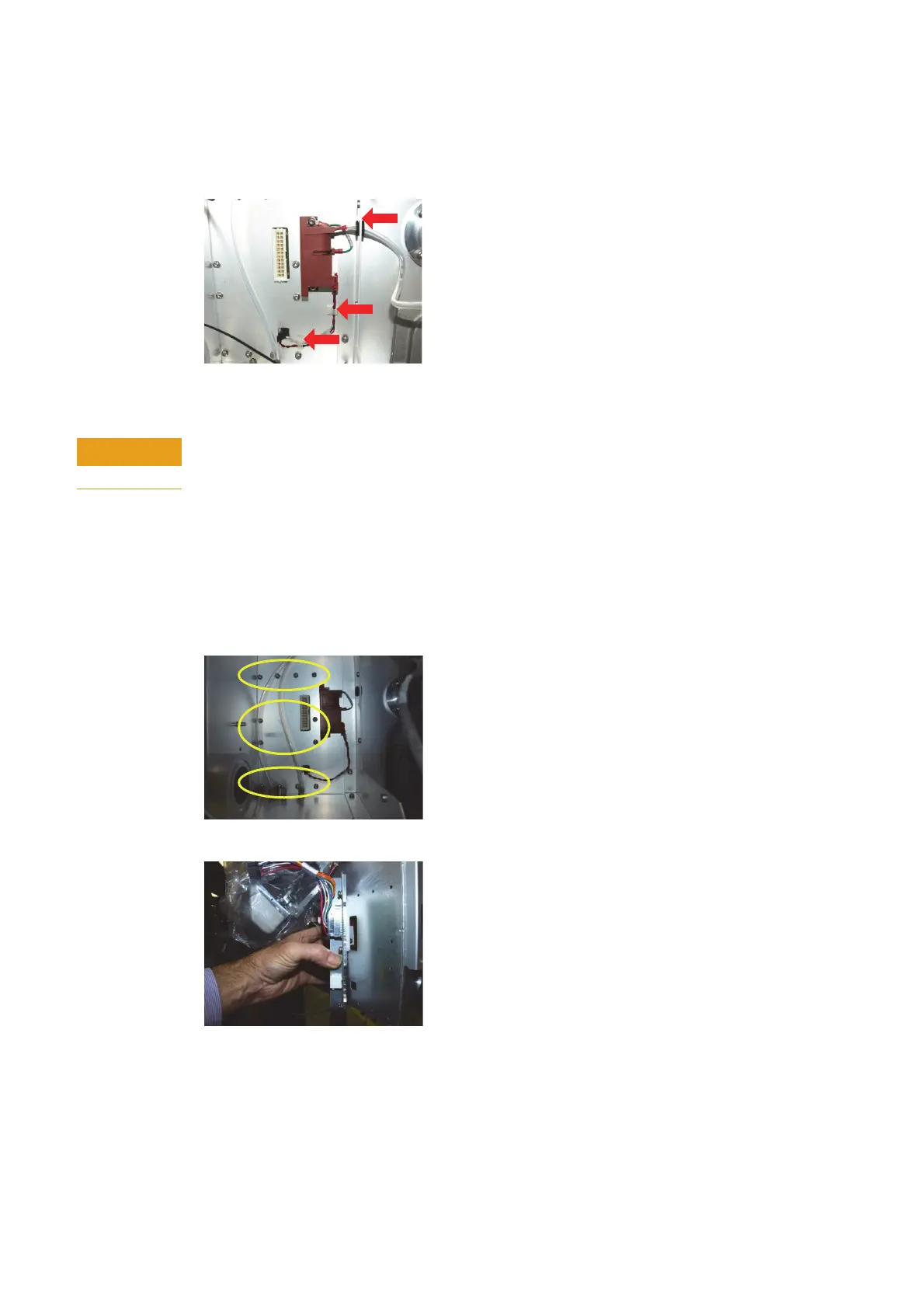

SSRF Filter board
1 Remove Igniter high voltage cable from igniter body. Remove 2 torx 20 screws. Unplug
igniter and replace.
2 Reassemble Igniter into RF box. Ensure that high voltage connector is pressed completely
home. Connect plug to filter board socket and route correctly as shown.
Ensure that wires are routed through clamps correctly to prevent contact with oscillator coils.
SSRF Filter board
1 To replace SSRF Filter board assembly it is necessary to first remove RF Oscillator module
as described in this section.
2 Remove 12 torx 20 screws and igniter connector.
3 Disconnect wiring harness, remove assembly from rear of RF box and replace.
