Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 221

7 Service Diagnostics and Fault Finding

Failure analysis

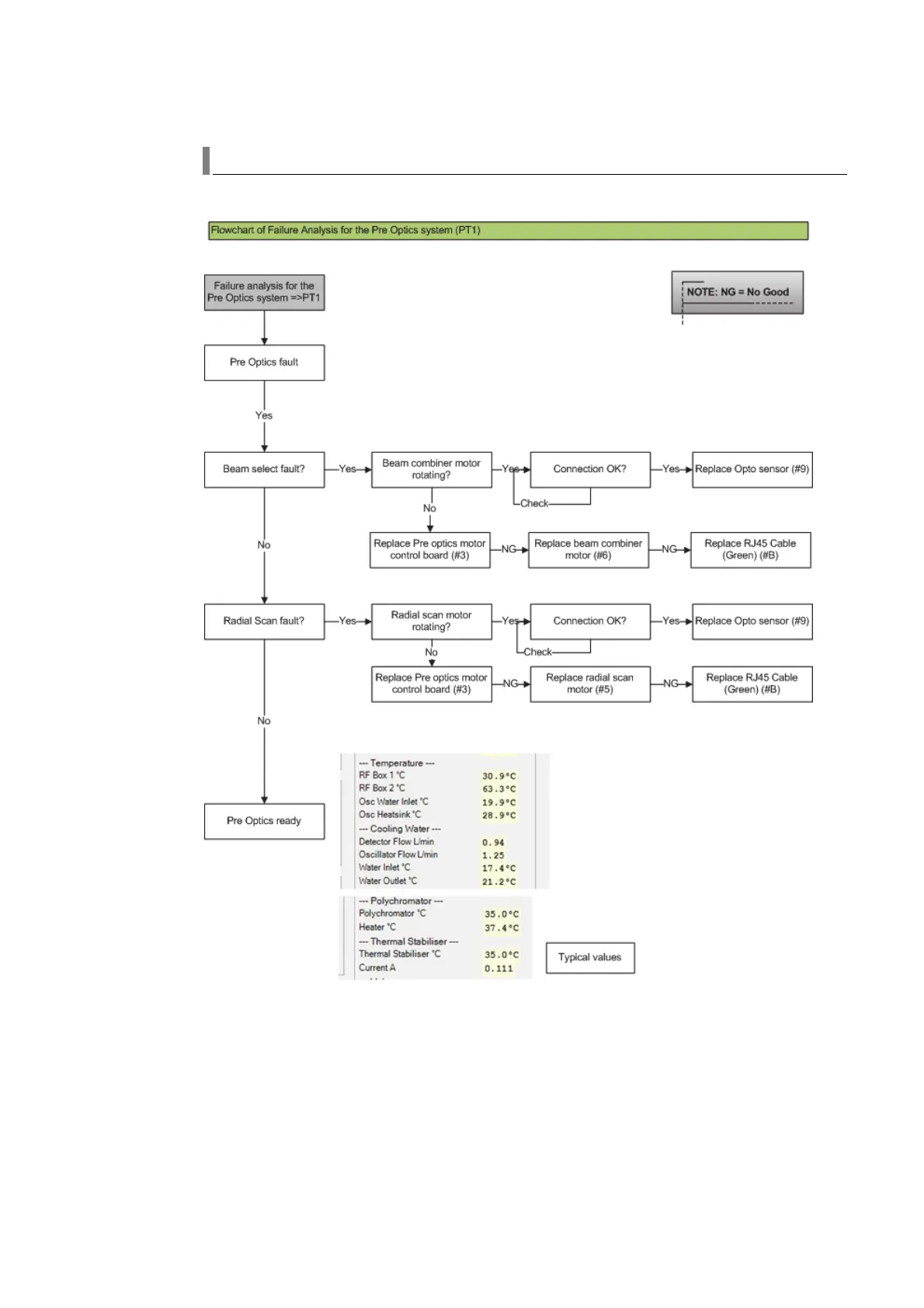

Failure analysis of Pre Optics system (PT1)

Return to Status diagnostic codes

Left Side RF Box

Left Side RF Box Left Side RF Box

Left Side RF Box

WiringAxial/Radial Pre

Wiring

Main Page
