7 Service Diagnostics and Fault Finding
ICP Expert Diagnostics

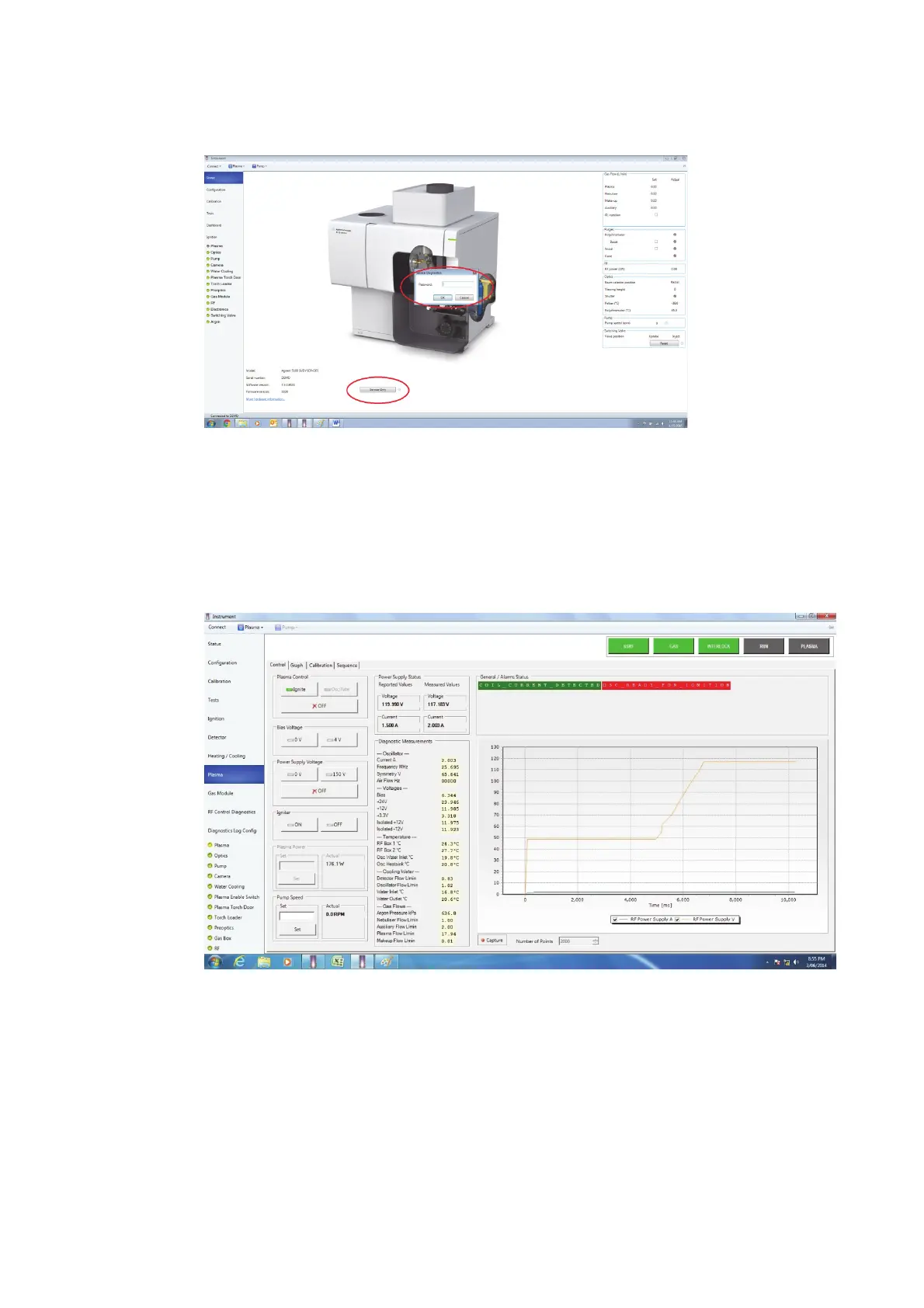

5 Go to the Status page.
6 Click on “Service only” button.
7 Enter the password “Manticore” and click OK. This will take you to the following diagnostics.
The diagnostics will allow review of inputs and outputs as well as status for a number of control
systems. The diagnostics will also allow the operator to exercise certain functions to assist with
the diagnosis of problems.
RF Ignition sequence and RF status is shown in the following 3 screens when igniting a plasma.
During ignition phase and before the plasma has lit. Graph shows RFPS voltage and current
profile during ignition.
