252 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
8Support Parts
Wiring Harness/ Looms
Item Description Part Number Remark
A Assy Cable RJ-45 UTP Cat 5 1.5m Black G8010-60804 RF Control board to RF Power supply
B Assy Cable RJ-45 UTP Cat 5 1.0m Green G8010-60805 Instrument control to pre optics and pump
C Assy Cable RJ-45 UTP Cat 5 1.0m Violet G8010-60806 Instrument control to Gas Module
D Assy Cable RJ-45 UTP Cat 5 1.5m Orange G8010-60807 Instrument Control to RF interface board
E Assy Cable RJ-45 UTP cat 5 2.5m Yellow G8010-60808 Instrument Control to Mains Power Module
F Assy Cable RJ-45 UTP cat 5 0.5m Red 110818800 Peristaltic pump to AVS
G Assy Loom MP 24V G8000-60010 For AVS 5100 upgrade Peri Pump to AVS
1 Assy Cable ICP Interlocks G8010-60809
2 Assy Cable ICP Chassis G8010-60810
3 Assy Cable ICP 24V Distribution G8014-60802
4 Assy Cable ICP Mains Poly Heater Blower G8010-60812
5 Assy Cable ICP Optics Temperature Sensors G8010-60811
6 Assy Cable ICP Mains MPM G8010-60814
7 Assy Cable ICP Mains Inlet G8010-60815
8 Assy Cable ICP Mains Intermediate G8010-60816
9 Assy loom ICP RF control G8010-60802
10 Assy Cable Igniter HV G8014-60804 Includes cable, outer insulation tubes of plastic and
silicon.
11 Assy Cable ICP Igniter LV G8010-60819
12 Assy Cable ICP RF Box Sensors G8010-60820
13 Assy Cable Pre-Optics Optocouplers G8010-60821
14 Assy Cable ICP SSRF DC Supply G8010-60801
15 Assy Cable ICP Poly End Plate G8010-60824 Camera control board to poly end plate
16 Assy Cable ICP Polychromator Heaters G8010-60822

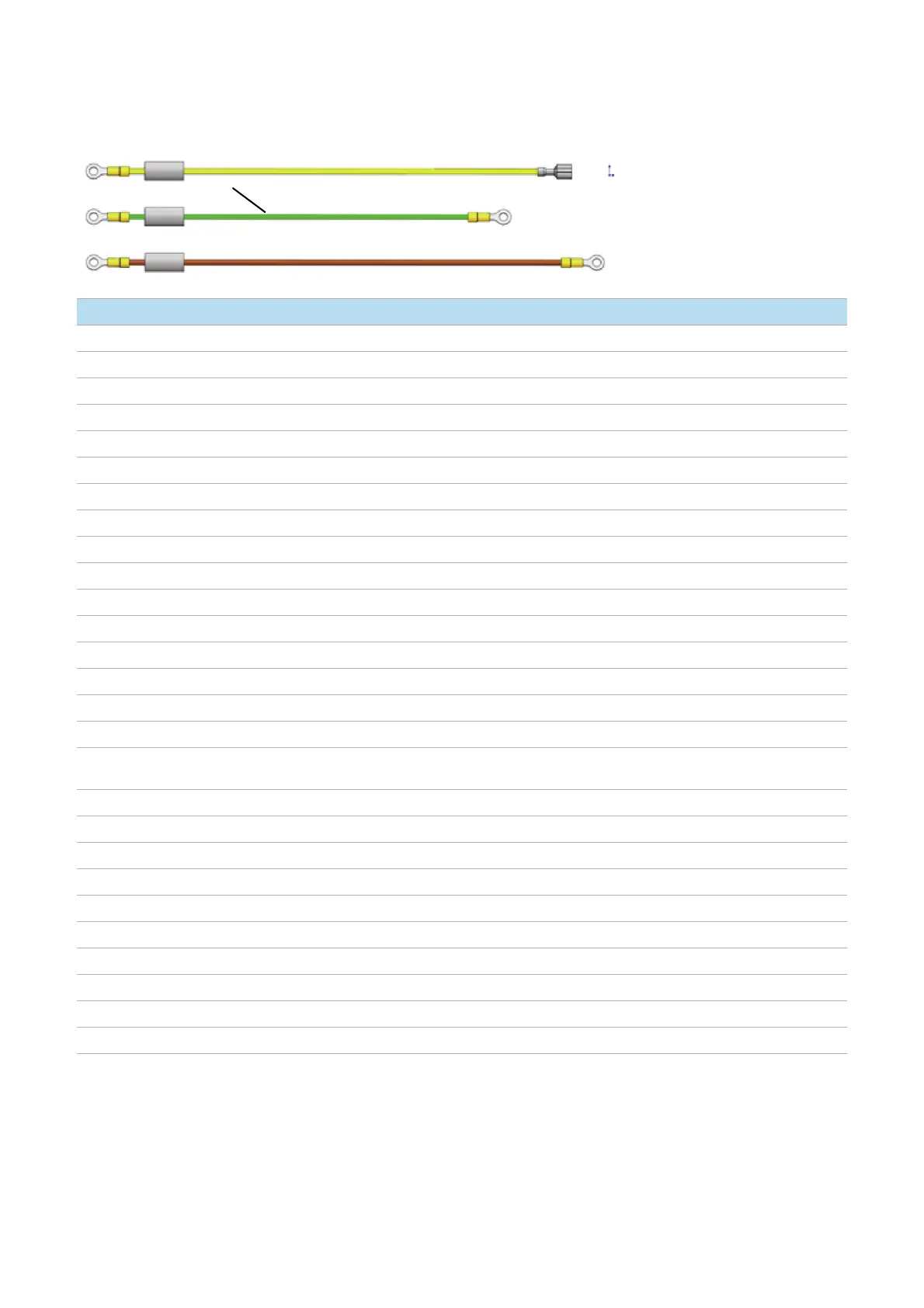

17 Assy Cable ICP Polychromator Earths Kit G8010-60823
Assy Loom ICP Simul Poly Rtd 110650700
Assy Loom ICP Simul Poly Casting 110657500
Tubing polyurethane 4mm id x 6mm od, 1/m 3710043100 0.4 m used
