G4208A User’s Guide 18
1 Start-up Information
Adding the Instant Pilot to an Agilent HPLC Module
Adding the Instant Pilot to an Agilent HPLC Module
(1200 Infinity II Series)
Preparations
Content of Holder Infinity II Kit
The kit 5067- 5955 (part of the Instant Pilot G4208A from May 2015) includes
• Holder Infinity II
• Screw
• Installation Note
Procedure
Refer to the User Manual of your Infinity II module.

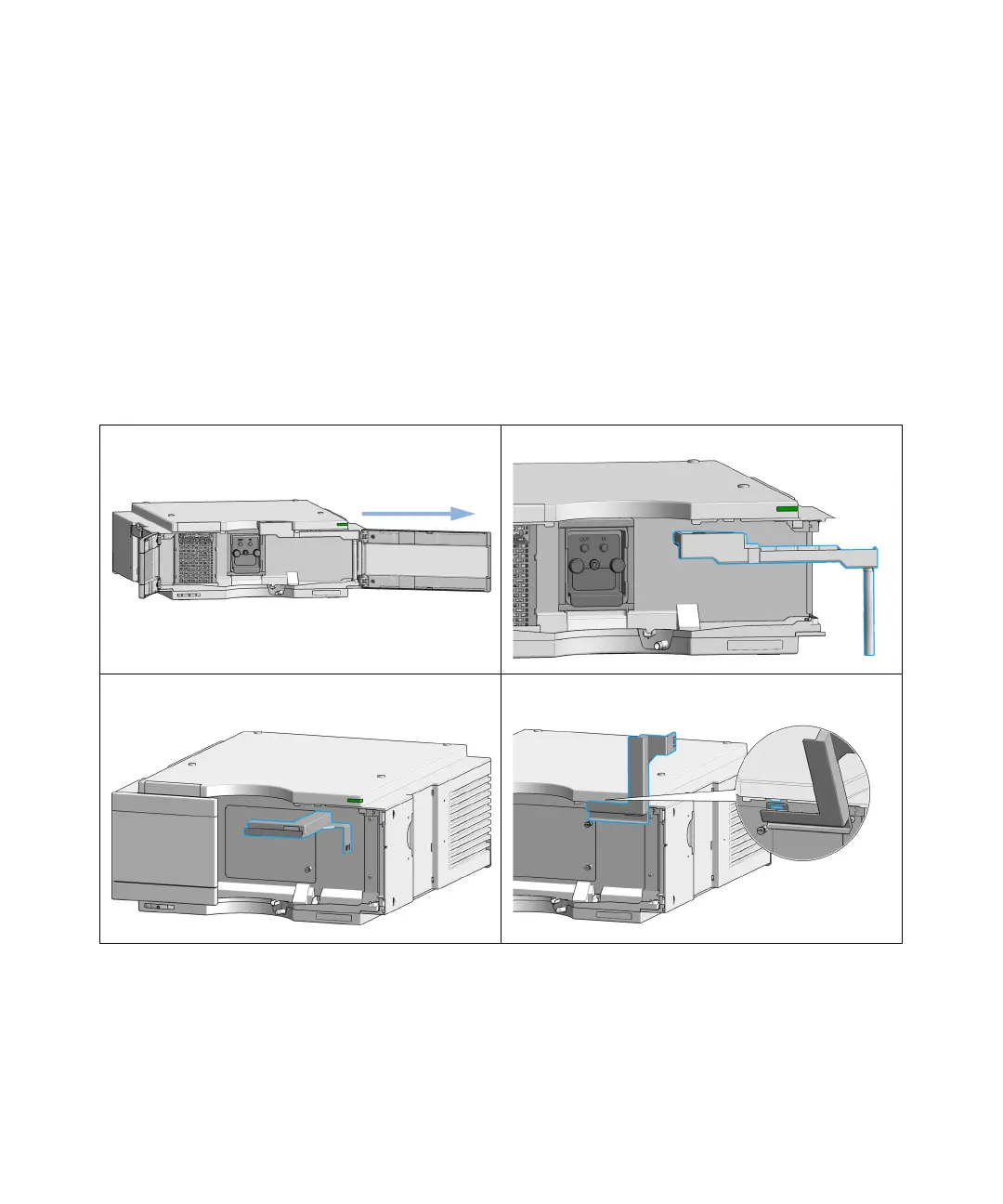

1 Remove the right door of module. 2 Remove the top leak panel.
3 The holder must be clipped into the top cover. 4 Insert the nose in the bottom of the cover into the slit in
the holder and fit the holder on the cover.
