G4208A User’s Guide 33
1 Start-up Information
System Information
System Information
1 To gather information about the Instant Pilot and the Agilent modules, press
the Details button from the Welcome screen.

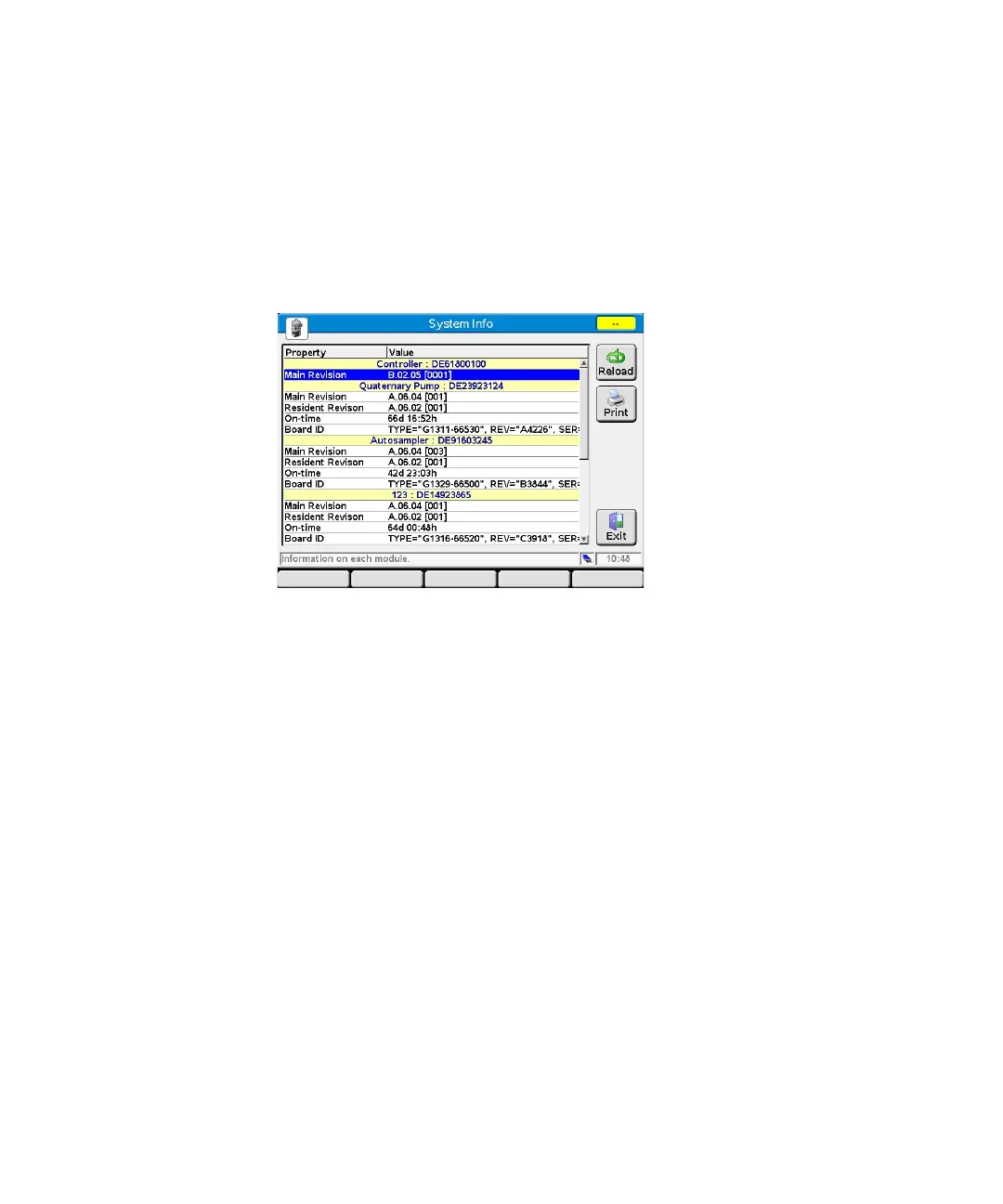

Figure 15 Getting Started - System Info
The screen contains information about serial numbers and firmware
revisions, On- time and Board ID of the modules. Some modules may show
additional information (e.g. the G1316A Column Compartment shows an
installed column switching valve or a module with installed LAN interface card
shows the LAN address).
Depending on the number of modules, you may have to scroll through the
display.
2 Use the Print button, all displayed information is saved to the USB Flash Drive
into folder PRINTOUT as SYSINFO.MHT.
updates the displayed
information
prints the displayed
information to the USB
Flash Drive
leaves the screen
