G4208A User’s Guide 98
2 Working with the Instant Pilot
DAD/MWD/VWD/FLD Spectrum
DAD/MWD/VWD/FLD Spectrum
Via the Control button and More, the DAD/MWD/VWD/FLD spectrum screen is
accessible.

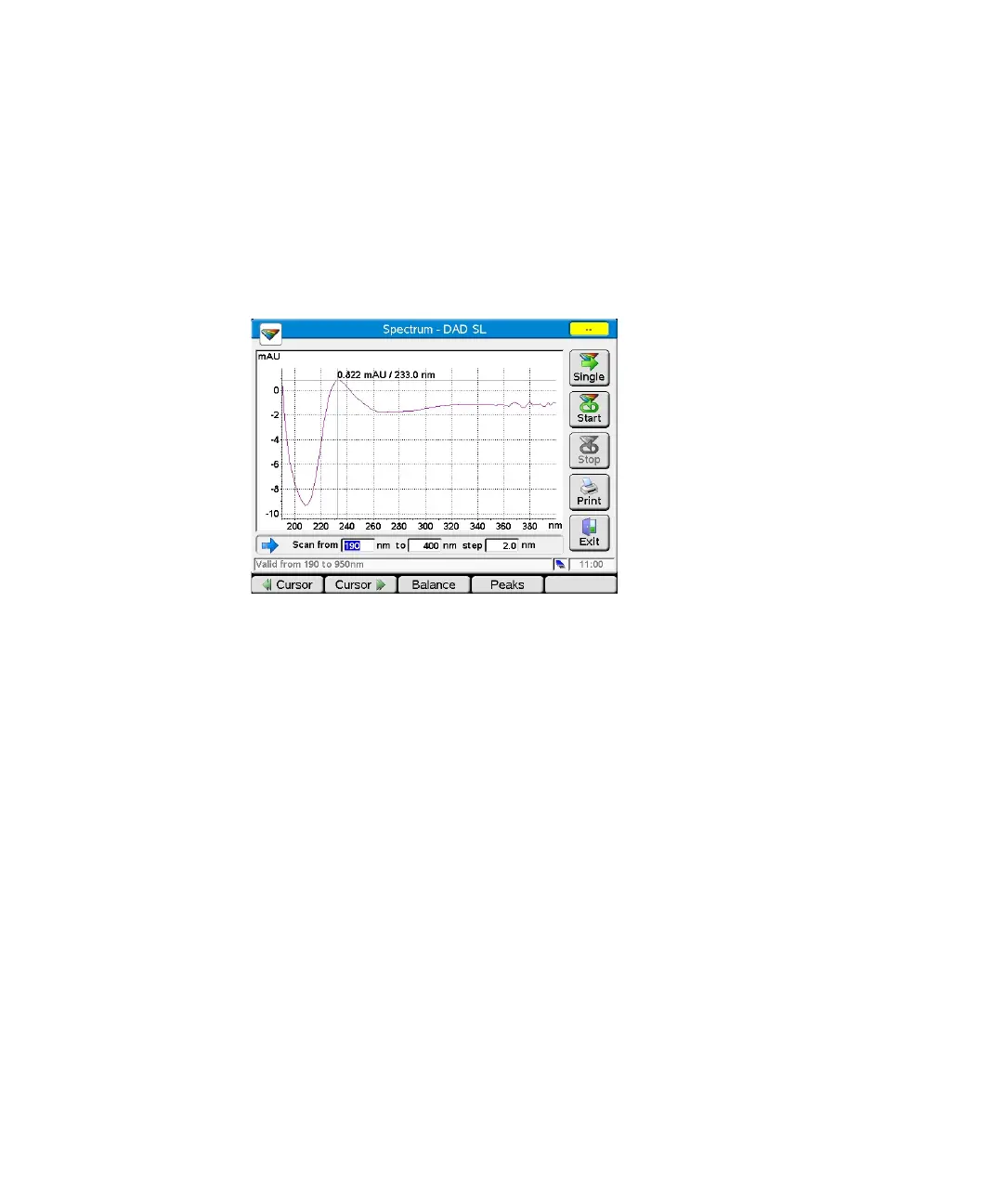

Figure 74 Spectrum - Example DAD
The scan range and step width can be set.
Using the Single button, starts a single spectrum.
Using the Start / Stop button, starts/stops a continues spectrum.
Using the Cursor buttons, the cursor can be moved left or right on the wavelength
axis.
Using the Balance button, the detector performs a baseline balance.
Using the Peaks button, a table with all found peaks is displayed (also part of the
printed spectrum).
Using the Blank button (VWD only), a blank (background) scan is taken.
Single spectrum
starts continuous spectrum
stops continuous spectrum
prints spectrum to USB Flash
Drive
exits the screen
