G4208A User’s Guide 43
1 Start-up Information
Logbook Information
Logbook Information
1 To view/change the Logbook information, press Logbook from the Welcome
screen.

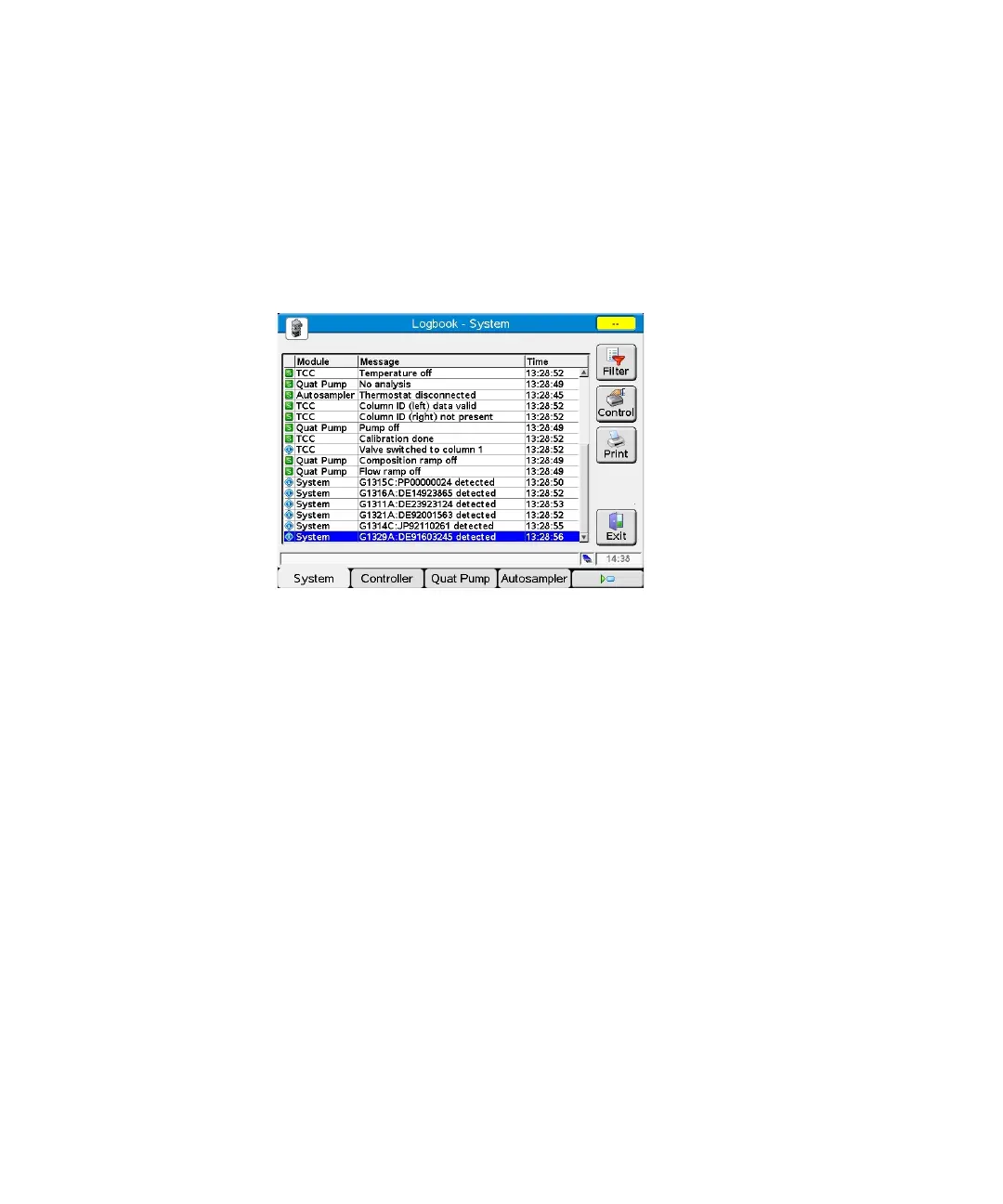

Figure 23 Logbook Screen
The Logbook screen is a configurable overview of the information, internal
sequences, error, maintenance, system and Early Maintenance Feedback
(EMF) messages.
2 To configure the view, press Filter.
3Control opens a menu to control certain system setting/activities.
4 To leave the screen, press Exit or Esc.
5 Press Print. The logbook is saved to a connected USB Flash Drive. The text is
written and saved into folder PRINTOUT as LOGBOOK.MHT or
LOGBOOK.HTM (see
Figure 24 on page 44), defined in the Configuration
settings (see “Printing To USB Flash Drive” on page 59).
Printing can then be performed by opening the file with a PC.
Table 9 on page 44 shows the possible icons/events.
to define what is displayed
opens a menu to control certain
system activities
prints the logbook to a file on
the USB Flash Drive
leaves this screen
system or module specific
information
