Delivering a Synchronized Shock
M4735A Heartstream XL Defibrillator/Monitor 7-5
7

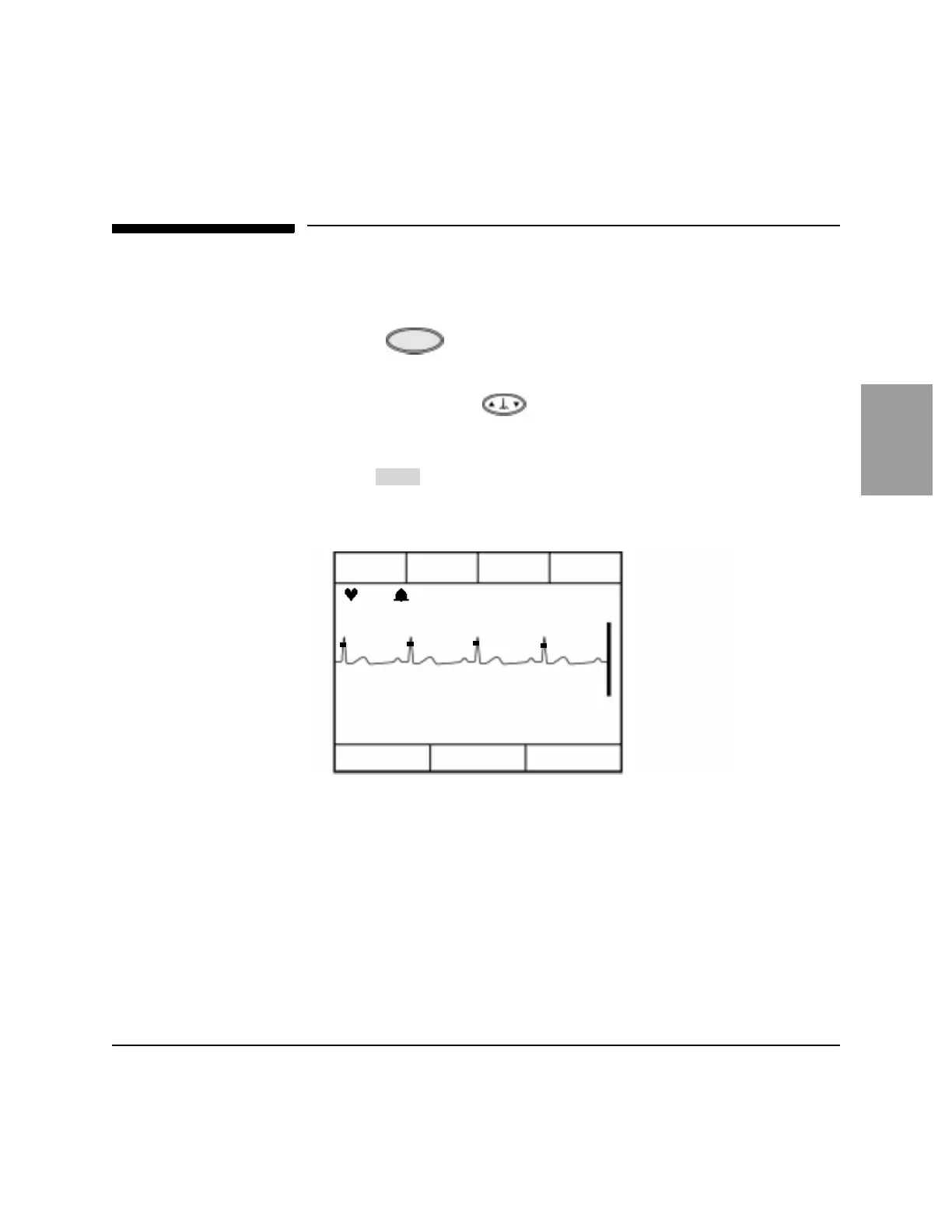

Delivering a Synchronized Shock
Once you are properly prepared to perform synchronized cardioversion, per-
form the following steps.
1. Press located below the Sync On/Off display to enable Sync
Mode. The message 6<1& appears on the display.
2. Use the gain control, , to adjust the ECG size so that the marker dot
appears only with each R-wave.
3. Select the desired energy level.
4. Press or the yellow charge button located on the Apex paddle. Wait
until the current charge has reached the energy level selected and you hear
a continuous charge done tone.
)LJXUH&KDUJLQJLQ6\QF0RGH
&+$5 *(
HR ALARM
LEAD
SELECT
DISARM
Shocks:0
00:00:8
78
Pads
SpO2
ALARM
Sync
87 J
SpO2
ON/OFF
SYNC
ON/OFF
