Applying Monitoring Electrodes
M4735A Heartstream XL Defibrillator/Monitor 4-5
4
Electrode Placement

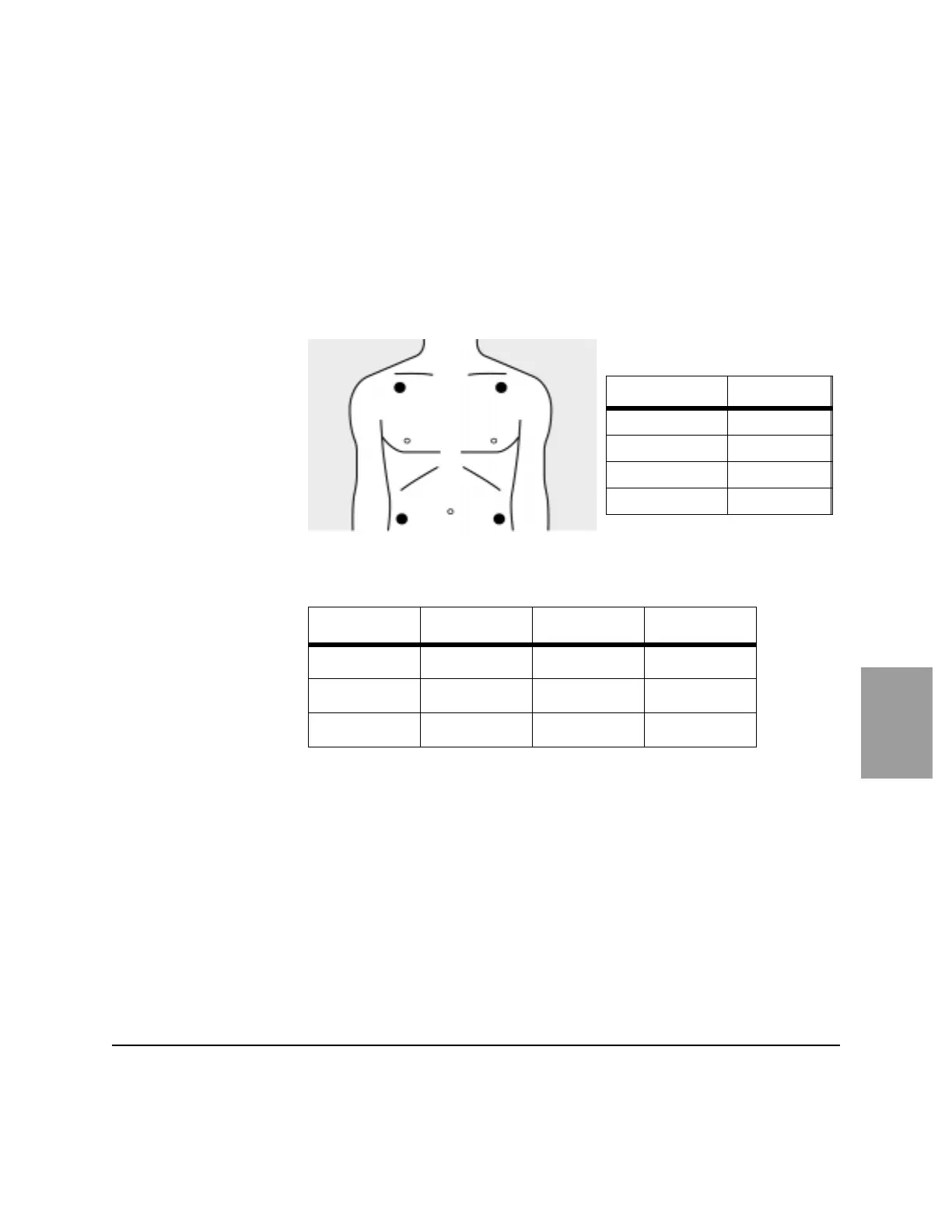

Figure 4-2 shows typical electrode placement for the limb leads of a 3- or
5-lead patient cable. The V/C lead of the 5-lead cable can be placed in any of
the precordial lead positions (V1/C1 through V6/C6) shown in Figure 4-3.
)LJXUH/LPE/HDG(OHFWURGH3ODFHPHQW
7DEOH/HDG(&*/HDG)RUPDWLRQ
Lead + - reference
I
LA RA LL
II
LL RA LA
III
LL LA RA
AHA Labels IEC Labels
RA Right Arm R Right
LA Left Arm L Left
RL Right Leg* N Negative*
LL Left Leg
F Foot
RA/R LA/L
RL/N LL/F
* Not used for 3-lead.
*
To Next Page
