Performing Pacing
M4735A Heartstream XL Defibrillator/Monitor 8-5
8
Performing Pacing
To use pacing, perform the following steps.
1. Press . The green LED next to lights up and a dialogue
box appears on the display.

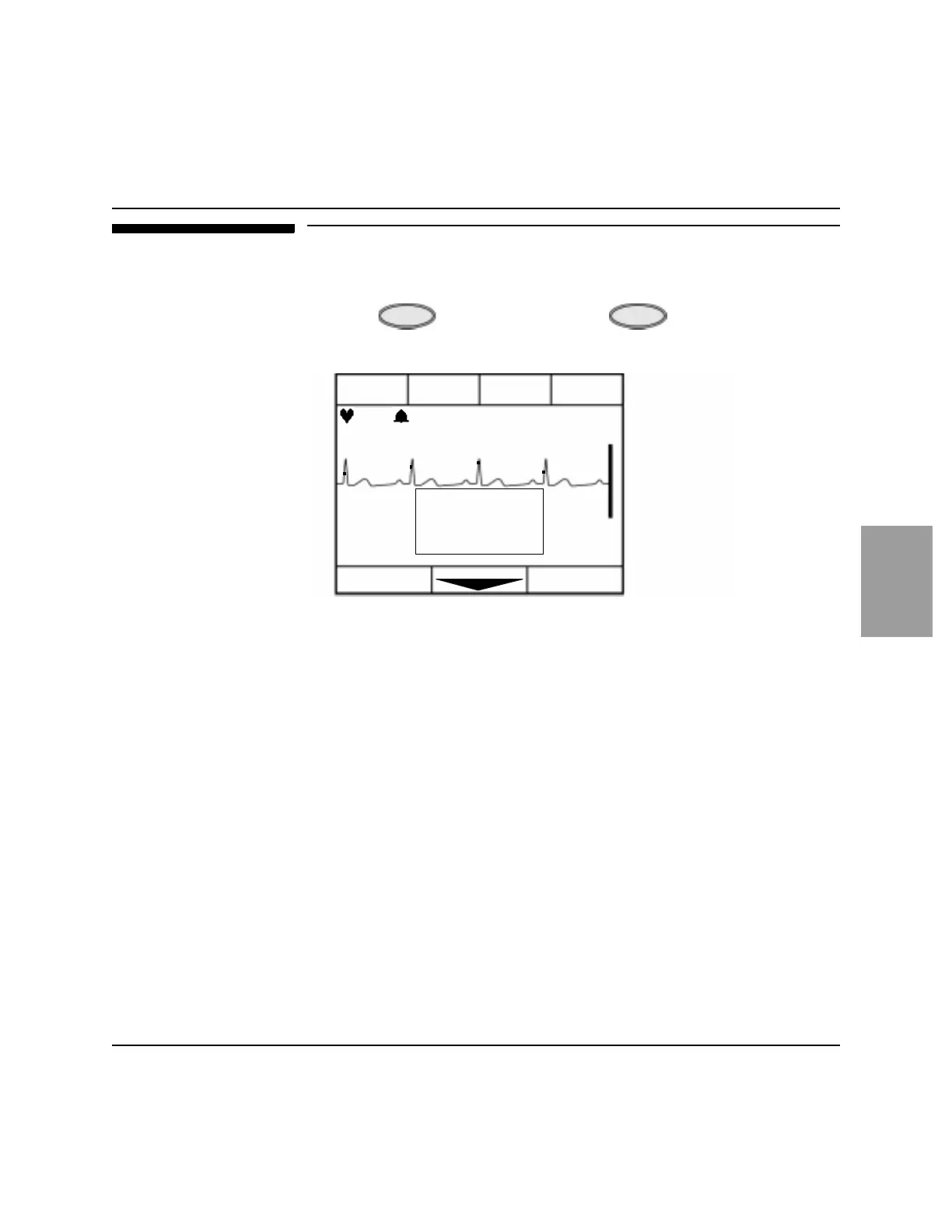

)LJXUH3DFLQJZLWK(&*0RQLWRULQJ(OHFWURGHV'LVSOD\
The 3DFHU6WRS message indicates that the pacing function is on but paced
pulses are not being delivered. The pacer turns on in the mode last used.
2. Verify that the dot markers appears near the middle of the QRS complexes
of the ECG.
If the dot markers do not appear, or are in the wrong location, adjust the
ECG size or select another lead. (See “Monitoring the ECG”
in Chapter 4.)
Pacer
Pacer
HR ALARM
LEAD
SELECT
CHARGE
Shocks:0
00:00:8
78
Lead II
Pacer Stop
Demand Mode
70ppm 30mA
