Installed Board Info
Supported All
Use this softkey to display information about the installed boards in the signal
generator. Refer to Figure 5-2.

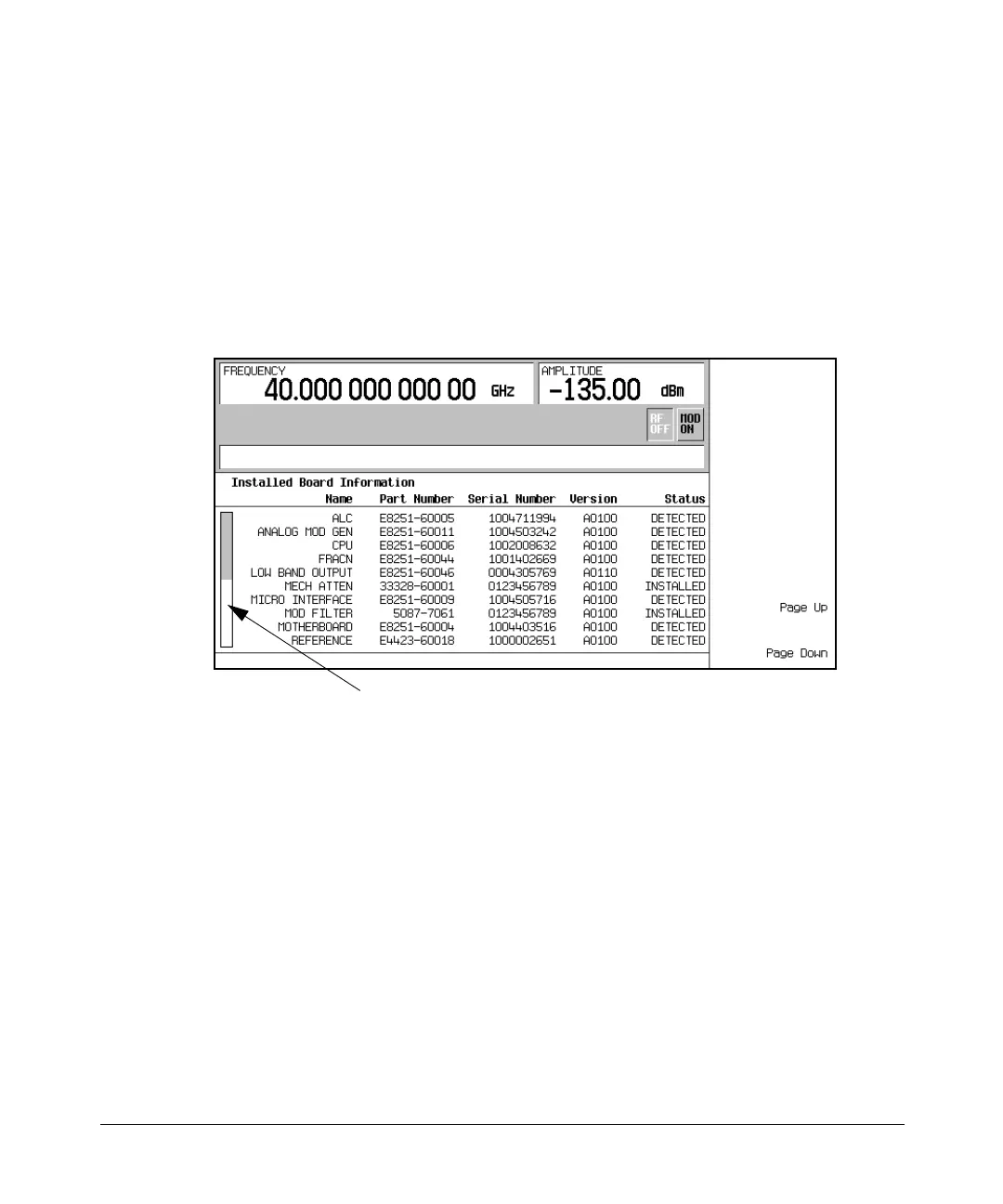

Figure 5-2 Installed Board Information
The gray and white vertical bar on the left side of the display indicates that there is an
additional page of information. Use the
Page Down softkey to display the next page. Use
the
Page Up softkey to return to the previous page.
Preset N/A
Range N/A
Location Page 250
Remarks A status of DETECTED means that the installed board was automatically
detected by the internal computer.
A status of INSTALLED means that the installed board is available for
use and is not normally automatically detected.
Additional Page Indicator
To Next Page
