Key Reference
I
Chapter 5 167
Int Triggered
Supported PSG-A Series
Use this softkey to select an internal, triggered, pulse modulation. When internal
triggered pulse is enabled, an RF pulse will occur at the RF OUTPUT connector
whenever a valid trigger signal occurs at the TRIGGER IN connector. The RF pulse will
have pulse width and delay as set by way of the front panel or with programming

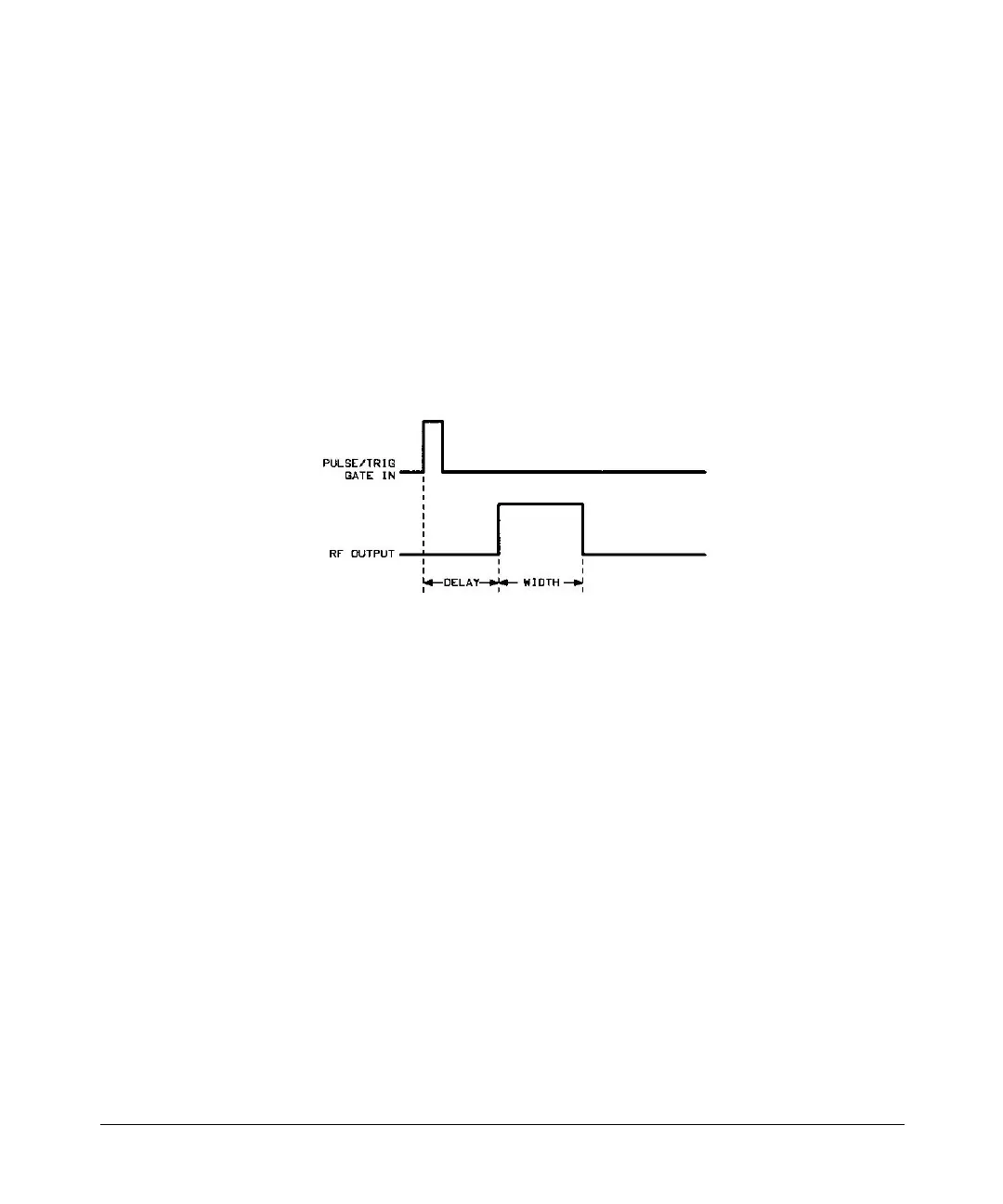

commands. Refer to Figure 5-5.
Figure 5-5
Preset N/A
Range N/A
Location Page 242
Remarks None
Internal
Supported All
This softkey enables you select an internal mode for the automatic leveling control.
Preset N/A
Range N/A
Location Page 232
Remarks None
