VLL Resilience for a Switched PW Path

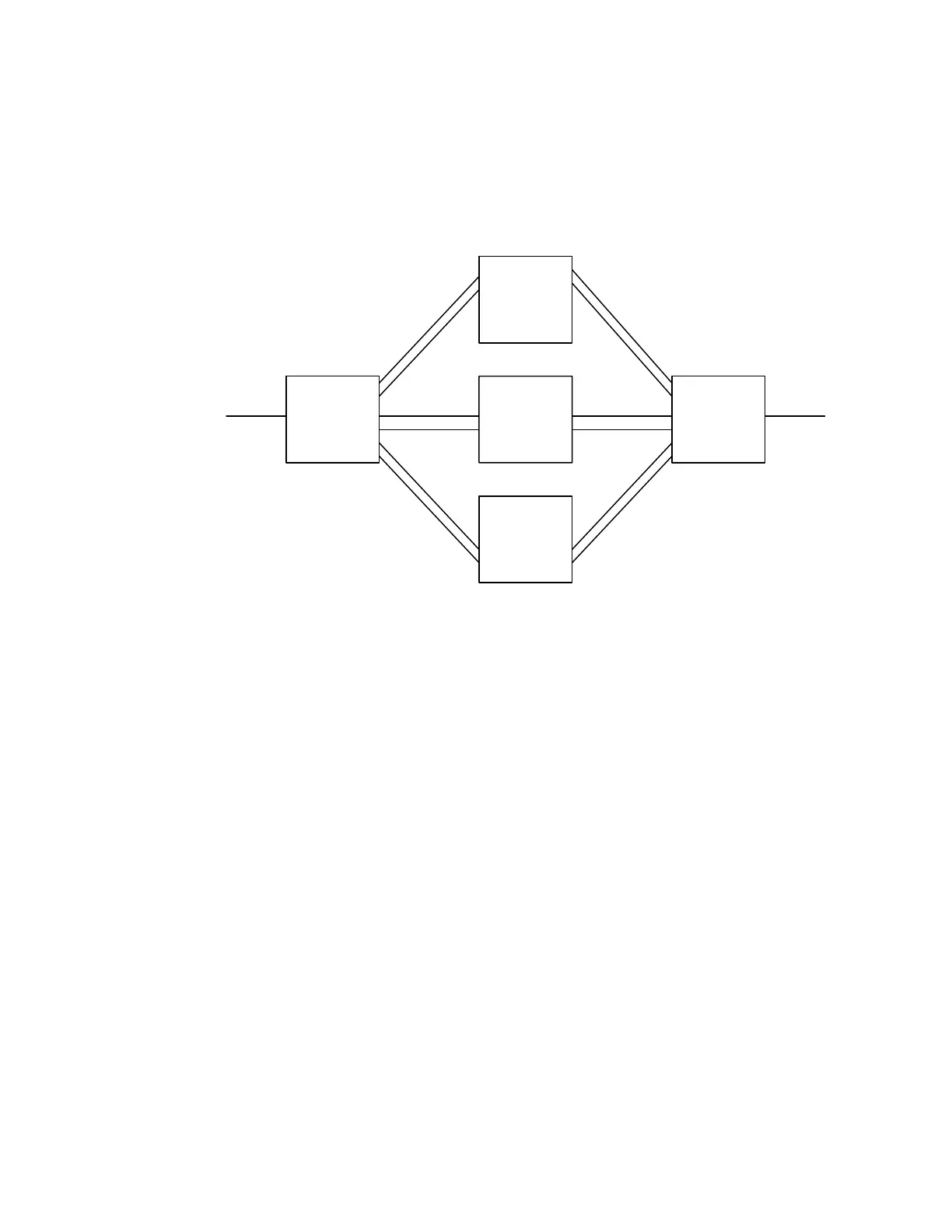

Figure 26 displays a VLL resilience for a switched pseudowire path example. A sample
configuration follows.
Figure 26: VLL Resilience with Pseudowire Switching
Configuration
T-PE1
configure service epipe 1
endpoint X
exit
endpoint Y
revert-time 100
standby-signaling-master
exit
sap 1/1/1:100 endpoint X
spoke-sdp 1:100 endpoint Y
precedence primary
spoke-sdp 2:200 endpoint Y
precedence 1
spoke-sdp 3:300 endpoint Y
precedence 1
T-PE2
configure service epipe 1
endpoint X
exit
endpoint Y
revert-time 100
T-PE 1
T-PE 2
S-PE 1
S-PE 2
S-PE 3
spoke-sdp 1:100
spoke-sdp 2:200
spoke-sdp 3:300
spoke-sdp 4:400
spoke-sdp 5:500
spoke-sdp 6:600
sap 1/1/1:100 sap 2/2/2:200
