Service Entities
The basic logical entities in the service model used to construct a service are:
• Customers (see page 29)
• Service Access Points (SAPs) (see page 29)
• Service Distribution Points (SDPs) (see page 41) (for distributed services only)

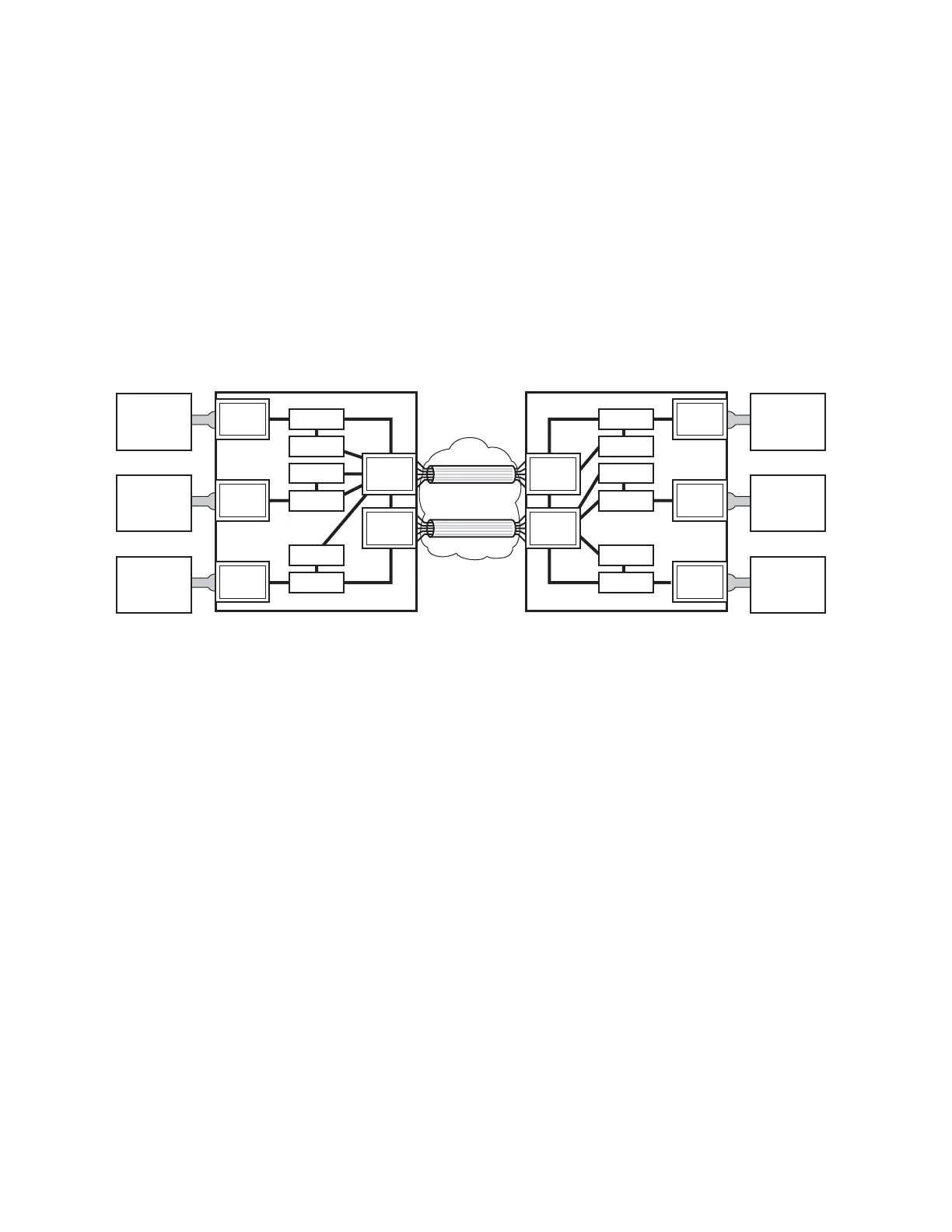

Figure 1: Service Entities for SAS M Network Mode
