Alcatel-Lucent 7210 SAS M - Figure 50: Example Configuration for Protected VPLS SAP

Configuring a VPLS Service with CLI
Page 332 7210 SAS M Services Guide

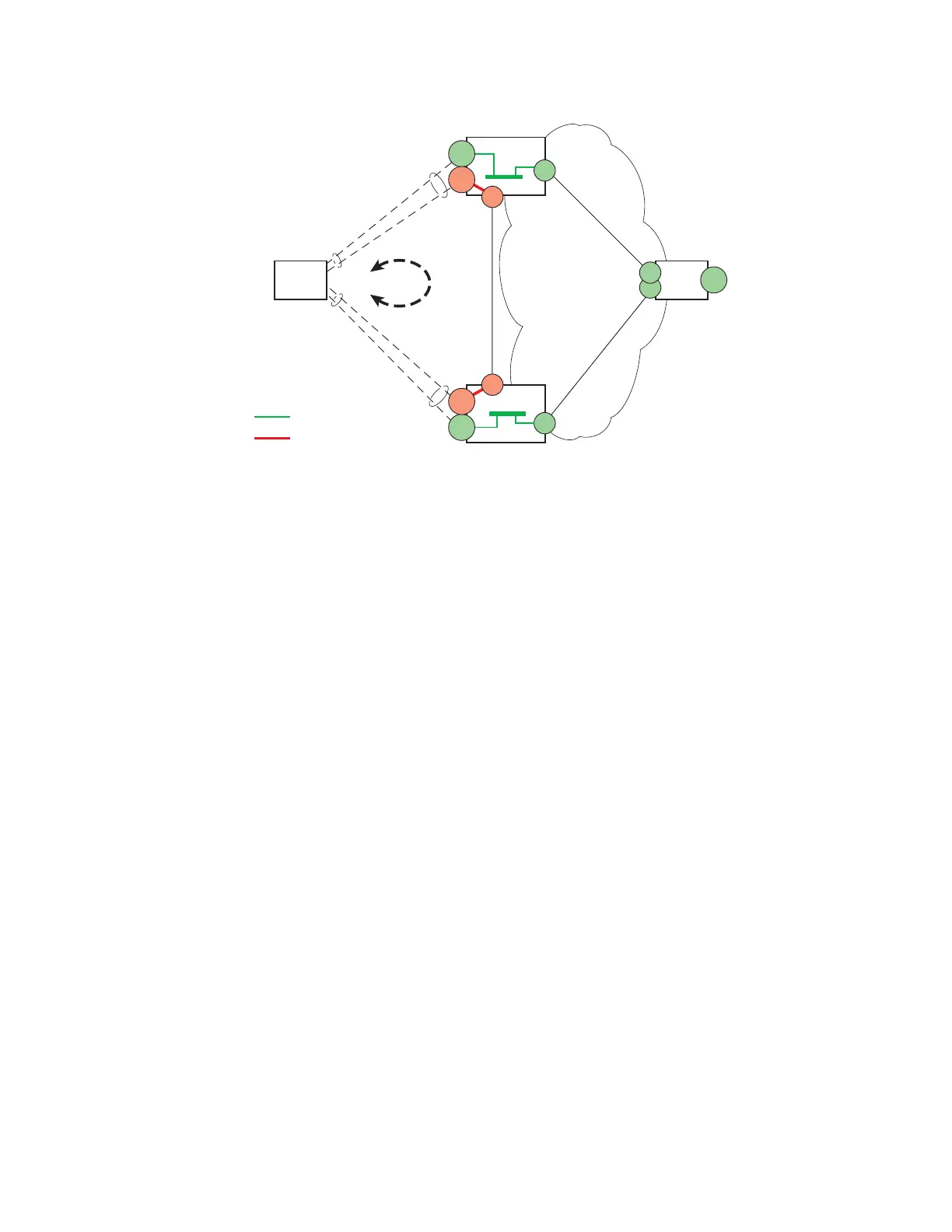

Figure 50: Example Configuration for Protected VPLS SAP
CLI Syntax: config>service# vpls service-id [customer customer-id] [cre-
ate] [m-vpls]
description description-string
sap sap-id create
managed-vlan-list
range vlan-range
stp
no shutdown
The following example displays a VPLS configuration:
*A:ALA-1>config>service# info
----------------------------------------------
vpls 2000 customer 6 m-vpls create
stp
no shutdown
exit
sap 1/1/1:100 create
exit
sap 1/1/2:200 create
exit
sap 1/1/3:300 create
managed-vlan-list
range 1-50
exit
no shutdown
exit
----------------------------------------------
*A:ALA-1>config>service#
