ETH-CFM capabilities may be deployed in many different Ethernet service architectures. The
Ethernet based SAPs and SDP bindings provide the endpoint on which the management points
may be created. The basic functions can be used in different services, VPLS and Epipe . The ETH-
CFM functionality is also applicable to broadband access networks. Two models of broadband
access are shown below to illustrate how ETH-CFM could be deployed in these cases. (Figure 13
and Figure 14).

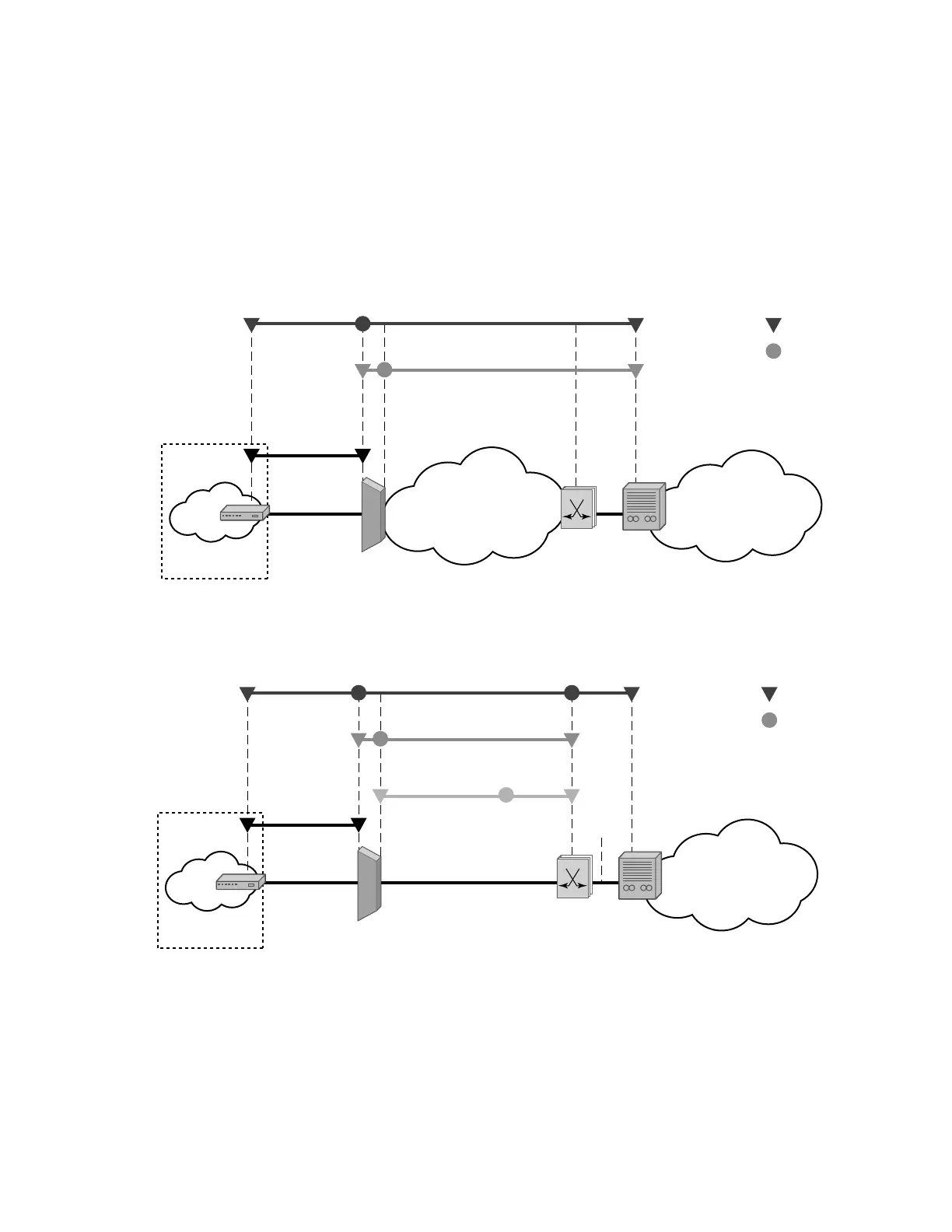

Figure 13: Ethernet OAM Model for Broadband Access - Residential
Figure 14: Ethernet OAM Model for Broadband Access - Wholesale
As shown in Figure 16 and Figure 17, the following functions are supported:
Fig_11-7210
Access Port BNG ME Carrier)
Access Link ME
Customer
Access
Node
Aggregation
Node
BNG
MEP
MIP
Regional Network
Ethernet
Access
Network
(e2e) RG to BNG ME (Customer)
Fig_12-7210
Access Port to Agg Node (Short Carrier)
Access Link ME
Customer
Access
Node
Aggregation
Node
BNG
NNI
MEP
MIP
Regional Network
Ethernet
Access
Network
(e2e) RG to BNG ME (Customer)
