ALIEN MEGA/MAX USER MANUAL
64
The Holiday option is available when you enable holiday schedule in Holiday
settings. See Chapter 5 Configuring Holiday Recording.
5) Click OK to save setting and back to upper level menu.
Draw the schedule
1) Click on the color icon to select a record type required. The event list on the
right-side of the interface explains each record option.

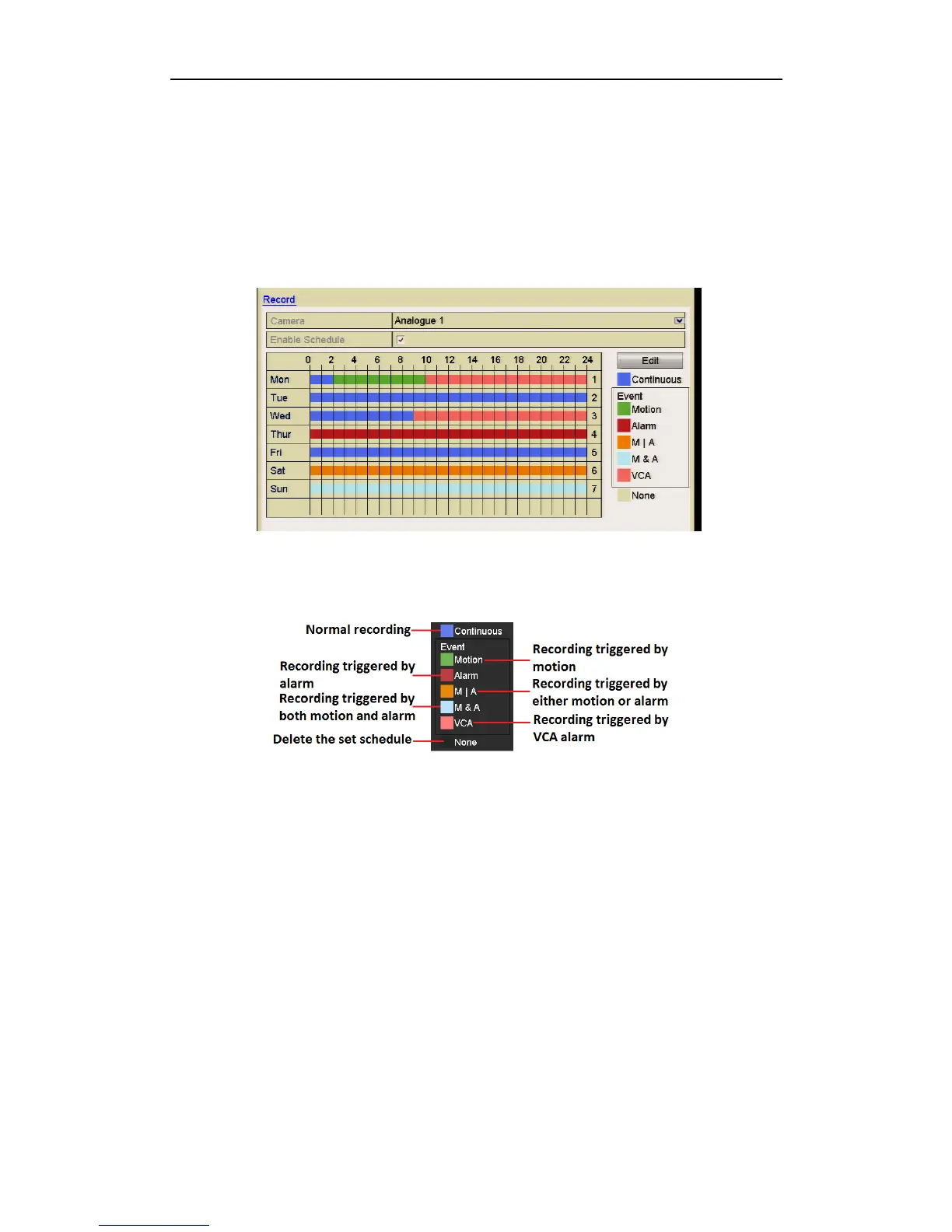

Figure 5.2.5 Draw the Schedule
Description of the colour icons are shown below.
Figure 5.2.6 Descriptions of the Color Icons
2) Click and drag the mouse on the schedule.
3) Click on the other area except for the schedule table to finish and exit the
drawing.
You can repeat steps to set schedules for other channels. If the settings can also be
used for other channels, click Copy and then choose the channel to which you
want to copy.
5. Click Apply in the Record Schedule interface to save the settings.
