3. Operating Procedure
3
Outputting Laser Light
WARNING
Be sure to put on specied protective glasses during laser light output operation.
Even if you wear them, you may lose your sight if the laser beam enters your eyes
directly through protective glasses.

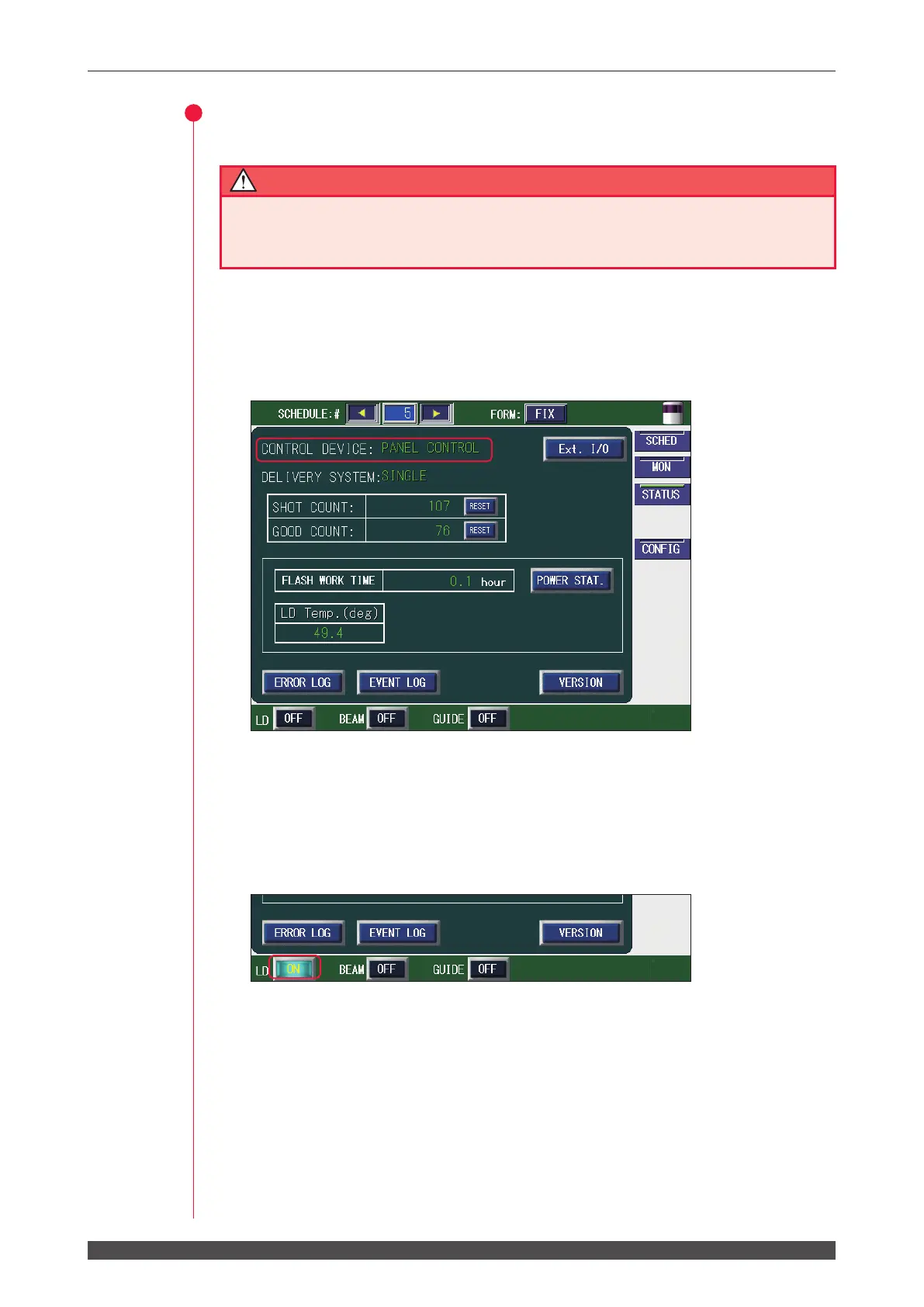

(1) Press the "STATUS" button to display the STATUS screen.
When Pin No.25 (control switching) of the EXT. I/O (1) connector remains in an
open state, external input signals are disabled and "PANEL CONTROL" is dis-
played in "CONTROL DEVICE."
(2) Adjust the workpiece and output unit positions to set an appropriate work dis-
tance (distance between the workpiece and the output position).
(3) Press the "LD" setting button.
The LD power supply is turned ON.
(4) Press the "BEAM" setting button.
A window to set the opening/closing of the safety shutter is opened.
⇒
The displayed window depends on the specication.
(5) Press the “SHUTTER“ setting buttons to open the safety shutter.
Safety shutter is opened and the SHUTTER lamp comes on.
