(6) Press the "CLOSE" button.
The window is closed.
⇒
For the recommended method of using the safety shutter, refer to “Precautions
for Handling” on page 10.

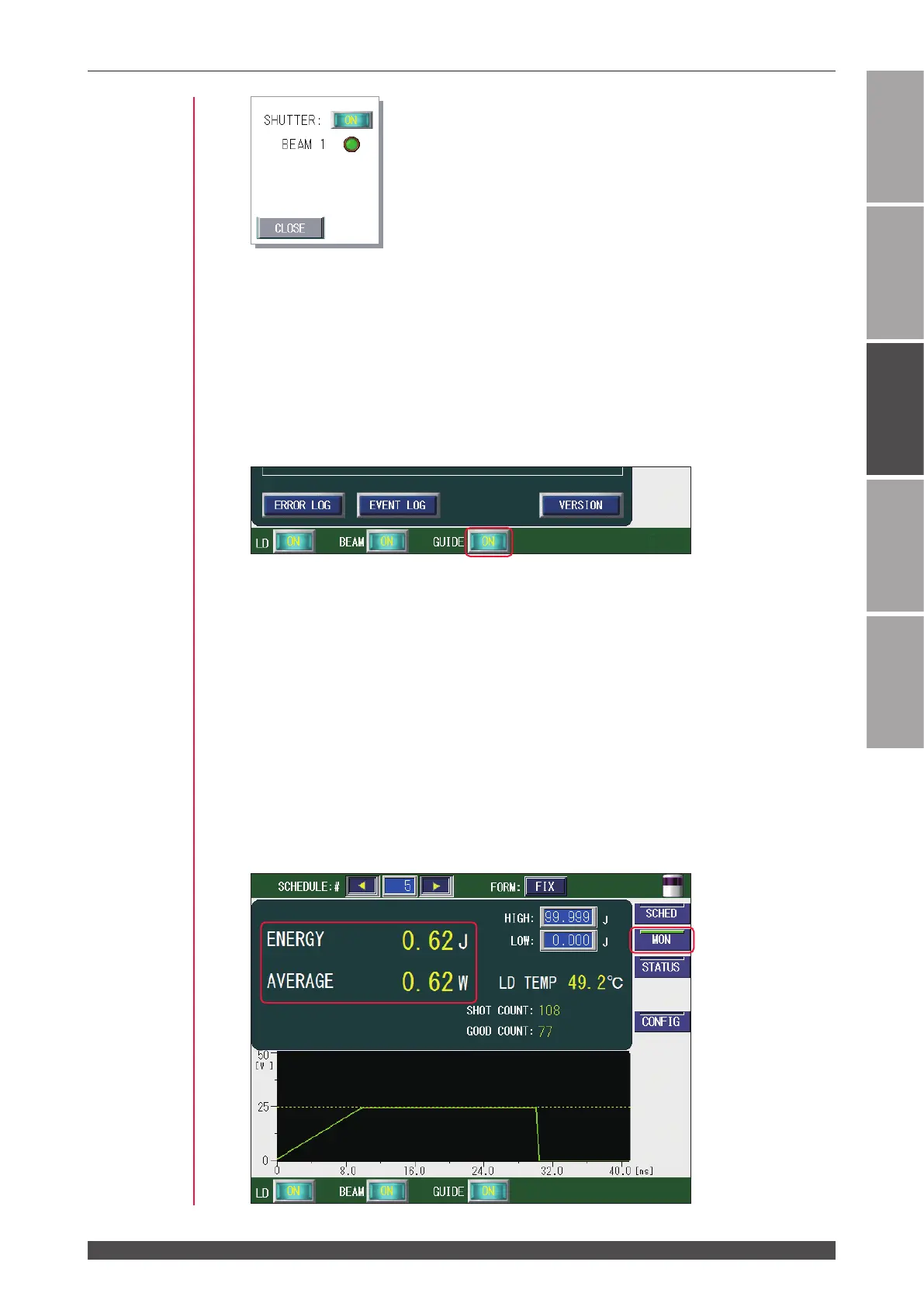

(7) Press the "GUIDE" setting button to set it to ON to output guide light.
The "GUIDE" setting button is set to ON and a red dot of guide light appears at
the laser light injecting position. Laser light is injected to the red-dot position.
(8) Check the laser light irradiation position.
If the point to be worked deviates from the red point of guide light, adjust the po-
sition by moving the output unit or workpiece.
(9) Press the LASER START/STOP button.
Laser light is output.
⇒
Before pressing the LASER START/STOP button, display the SCHEDULE
screen or MONITOR screen and input another registered SCHEDULE number.
With this, laser light is output in the output conditions of this SCHEDULE.
(10) Press the "MON" button to display the MONITOR screen, and check the laser
output energy (J) and average power (W) of the output laser light.
