User Manual – Rev BE AMETEK Programmable Power
MX Series 183
in order of event number. Leaving a gap between event
numbers allows you to insert events at different places later in
the sequence. Deleting events is always possible regardless of
the event number. For this exercise, we will start with EVENT
# 5. Enter 5 and press the ENTER key. This brings you back to
the TRANSIENTS menu.
17) Repeat steps 6 through 16 two more times using 120 V, 83 ms
and 80 V, 150 ms as values for EVENT # 10 and EVENT #15.

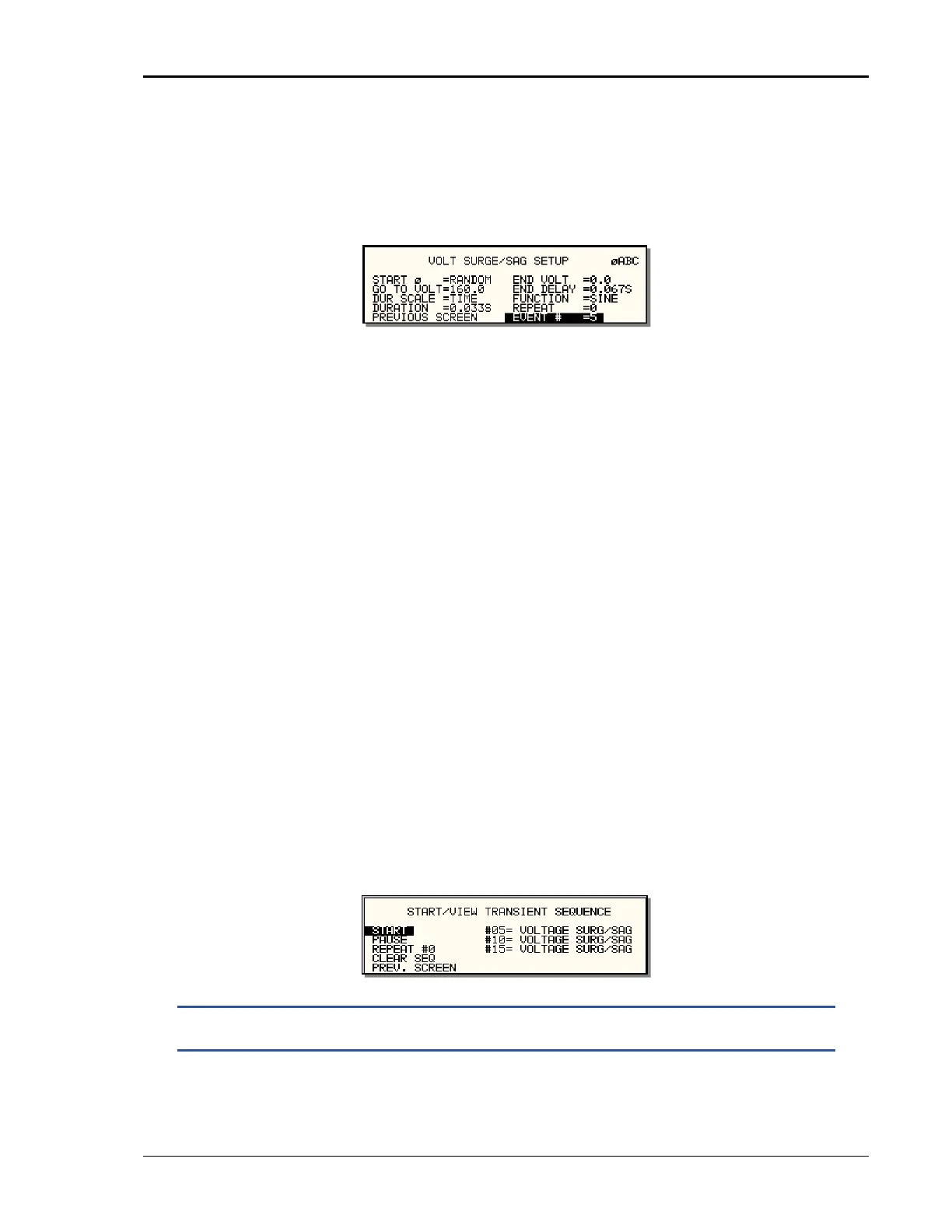

18) Once you have programmed these three events, move the
cursor in the TRANSIENTS menu to the START/VIEW
SEQUENCE field and press the ENTER key. This will get you to
the START/VIEW TRANSIENT SEQUENCE menu from which you
can run transient programs. This screen shows all available
events in the transient list on the right-hand side. If more than
five events are programmed, you can scroll through the list
using the UP and DOWN arrow keys. To edit an existing event,
move the cursor to the relevant event number and press the
ENTER key.
19) Move the cursor to the REPEAT #0 field and enter 1. This will
cause the transient program to repeat once and thus run two
times total. Do not confuse this global list level repeat
capability with the list event level repeat field we skipped in
step 15.
20) Make sure the output relay is closed using the OUTPUT
ON/OFF key. If you start a transient program with the relay
open, an error message will appear.
21) Move the cursor to the START field and press the ENTER key.
The transient program you just created will execute two times.
If you have an oscilloscope connected to the output, you may
be able to see the output voltage change per Figure 4-44.
NOTE: The AC source output remains at the last programmed values at
the completion of the list.
In three-phase mode, the voltage lists are phase selectable. You can set up a
different voltage list for each phase. To do this, use the PHASE key to choose
