Section 4 Operation
4-70

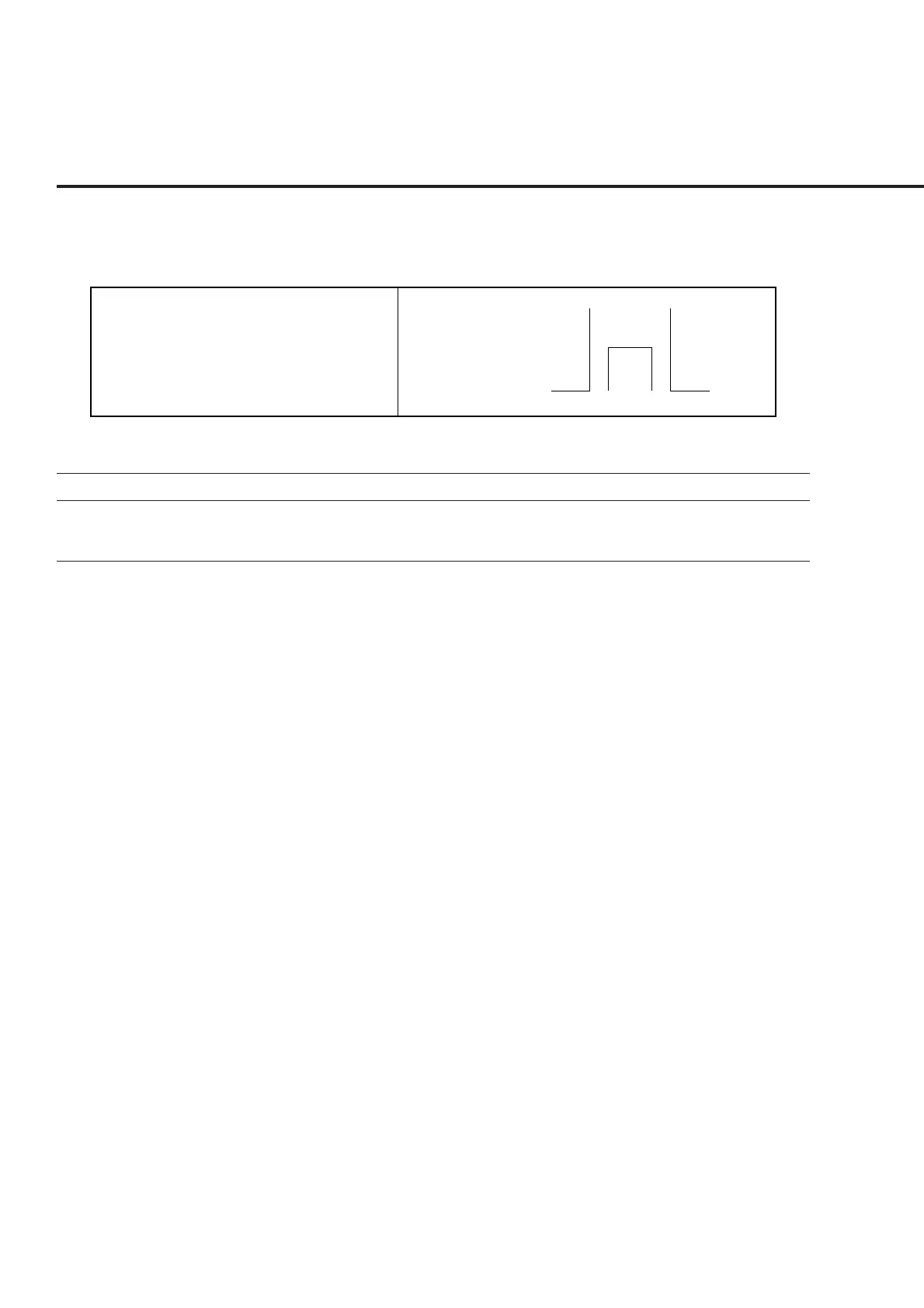

• Standard template
Limit 1 (off level): –20.0 dB
Limit 2 (on level, lower): –3.0 dB
2
11
Standard pattern
(fixed)
(LIMIT-1)
(LIMIT-2)
–20 dB
–3 dB
• Set the following items on the Setup Template screen.
Item Range Resolution Initial value
1 –90.0 dB to 10.0 dB 0.1 dB Standard value
2 –90.0 dB to 10.0 dB 0.1 dB Standard value
• Function keys:
Main function key (None)
Function keys
[Recall Template] F7: Recalls the template saved in a floppy disk etc.. (Para. 4.3.9)
[Save Template] F8: Displays the template save menu. (Para. 4.3.9)
[Standard] F10: Sets the standard template.
[Back Screen] F12: Displays the previous screen.
